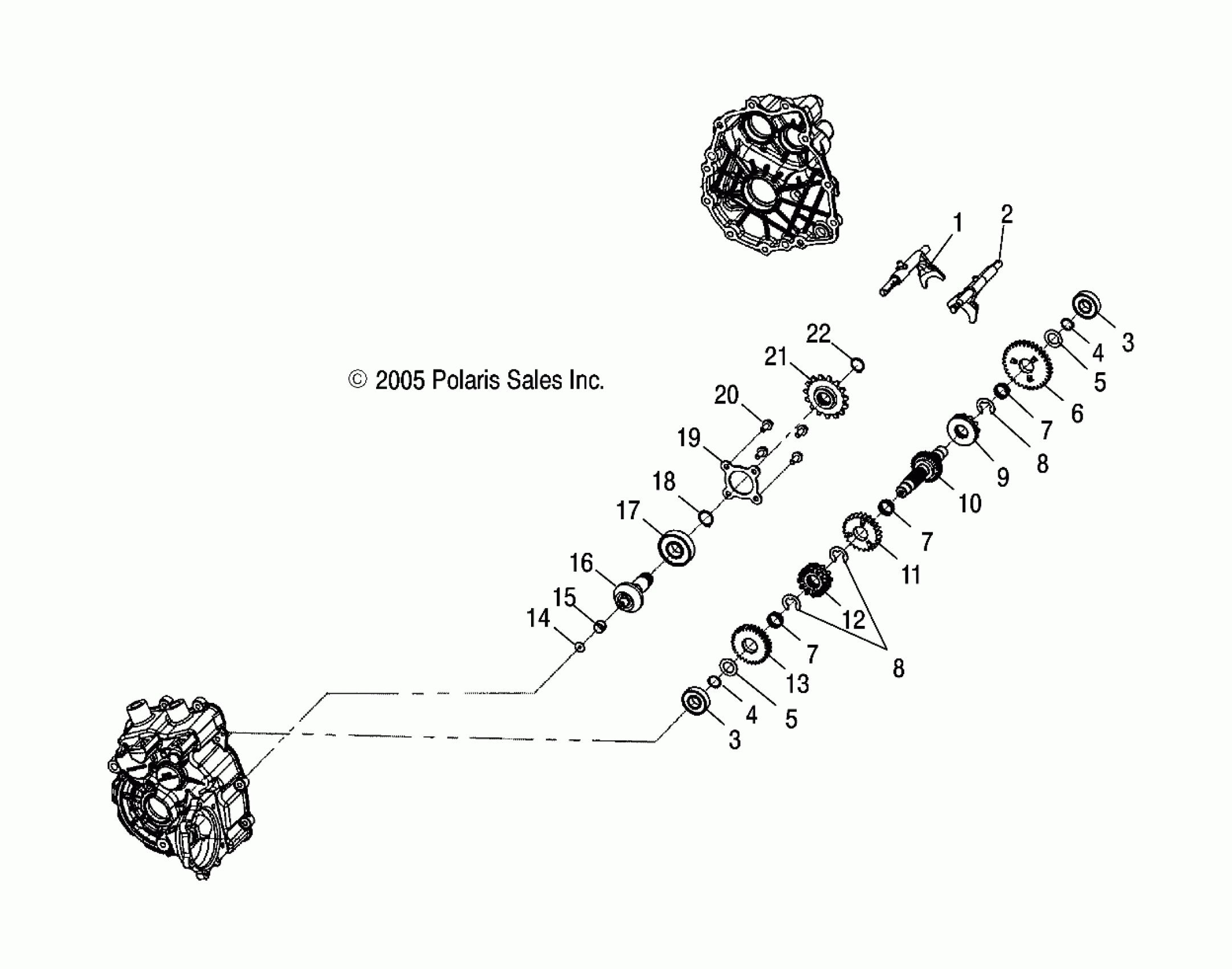

Polaris SPORTSMAN 6X6 - A06CL50AA GEARCASE, INTERNAL - A06CL50AA (4999201649920164C14) Diagram

#

Description
Price

-

Asm., Gearcase [Incl. All]

1341428

Unavailable

1

Fork, Shift, Low

3233706

$119.99

2

Fork, Shift, High/Reverse

3233633

$139.99

3

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

3

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

4

Ring, Retaining

3233177

$6.39

4

Ring, Retaining

3233177

$6.39

5

Washer

3233176

$9.59

5

Washer

3233176

$9.59

6

Gear, 33T

3233731

Unavailable

7

BEARING, NEEDLE

3233718

$35.99

7

BEARING, NEEDLE

3233718

$35.99

7

BEARING, NEEDLE

3233718

$35.99

8

Ring, Retaining

3233720

$9.59

8

Ring, Retaining

3233720

$9.59

9

Dog, Engagement, Low

3233732

$169.98

10

Shaft, Reverse, 29T

3233733

Unavailable

11

Sprocket, 24T

3233719

$109.27

12

Dog, Engagement, High/Reverse

3233721

$169.98

13

Gear, 30T

3233722

$165.94

14

Washer, Thrust

3233542

$11.32

15

Bushing

3233541

$23.99

16

Shaft, Pinion

3233540

$159.99

17

BEARING

3233020

$47.99

18

RING, RETAINING

3233306

$4.79

19

Cover, Bearing

3233263

Unavailable

20

Screw

3233539

$15.49

21

Sprocket, 15/22T

3233730

Unavailable

22

Ring, Retaining

3233537

$6.99
