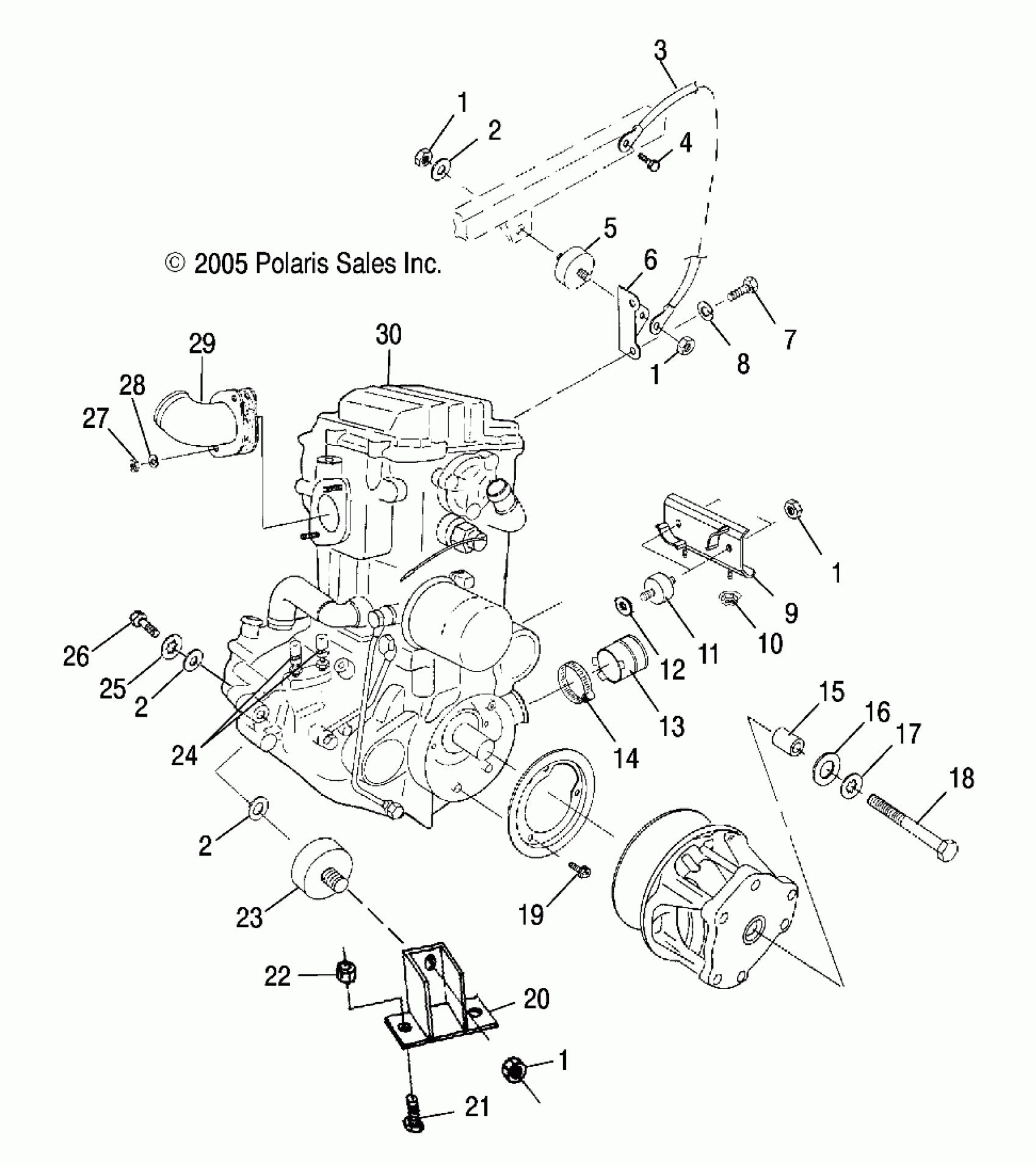

Polaris SPORTSMAN 6X6 - A06CL50AA ENGINE MOUNTING - A06CL50AA (4999201649920164A09) Diagram

#

Description
Price

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

2

Washer

7555801

$3.99

2

Washer

7555801

$3.99

2

Washer

7555801

$3.99

3

Cable, Ground/Engine

4010132

Unavailable

4

Bolt

7512232

$1.49

5

Mount, Rubber, Top

3110044

Unavailable

6

BRACKET, MOUNT, ENGINE, TOP

5242674

Unavailable

7

BOLT

7512315

$4.79

8

WASHER, SPRING LOCK

7552901

$1.49

9

Mount, Rear Engine, Black

1014993-067

$24.79

10

Nut, Flange, Lock

7547089

$4.79

11

Mount, Rubber, Front

3110046

Unavailable

12

WASHER, FLAT

7555815

$3.99

13

BOOT, CLUTCH INTAKE

5412487

Unavailable

14

Clamp, Narrow Band

7080511

$4.79

15

BUSHING-.437 X.770 X.50

5430261

$7.19

16

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

17

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

18

BOLT

7512566

$30.79

19

Asm., Screw and Washer

3084205

$3.99

20

Mount, Engine, Front, Black

1040688-067

$14.68

21

SCREW

7515398

$2.39

22

NUT-5/16-18 NYLOK-Y

7542324

$1.49

23

Mount, Motor

3110067

Unavailable

24

CLAMP-HOSE,.875-SS

7080474

$8.40

25

Washer, Spring Lock

7552603

$1.49

26

SCREW

7515417

$4.79

27

Nut

3087199

Unavailable

28

Washer, Spring Lock

3080530

$3.19

29

Manifold, Black

1261171-489

$189.99

30

Engine, Short Block, EH50PLE106 NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required fo

3089527

Unavailable
