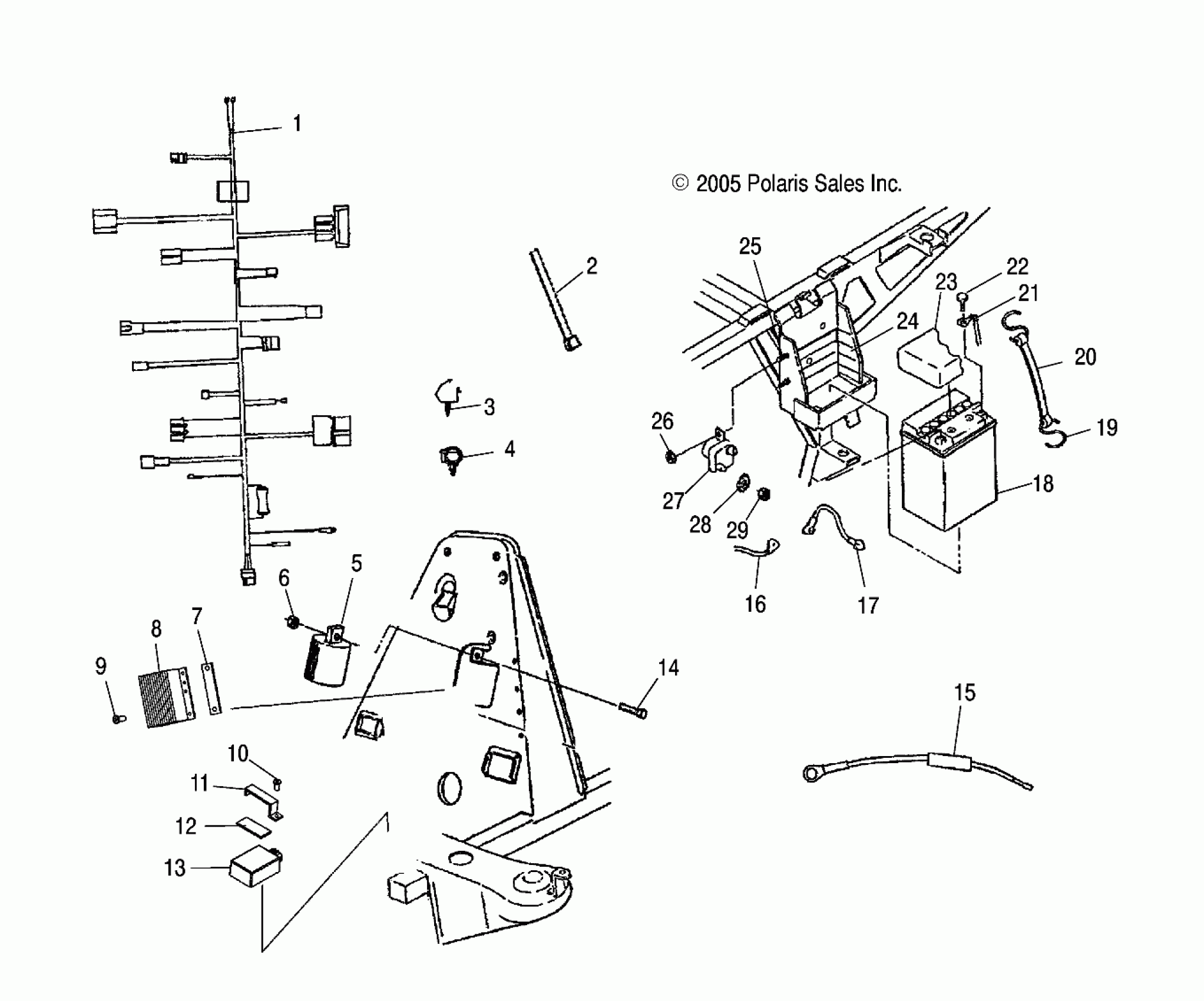

Polaris SPORTSMAN 6X6 - A06CL50AA ELECTRICAL - A06CL50AA (4999201649920164C09) Diagram

#

Description
Price

1

Module, Resistor

4010924

Unavailable

1

Harness, Main [Incl. 15, Resistor]

2410576

Unavailable

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

CLIP, ROUTING

7670109

$2.39

4

CLIP, ROSEBUD

4020139

$4.79

5

Asm., Coil, Ignition

3089239

$195.99

6

Nut, Nylok

7541925

$1.49

7

Heat Sink

5247782

$10.71

8

Module, Controller

4011110

$159.99

9

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

10

SCREW

7512024

$4.79

11

BRACKET, CDI

5246747

$7.99

12

Pad

5810317

Unavailable

13

CDI System

3089238

$375.99

14

BOLT

7512007

$3.99

15

Kit, Fusible Link

2202147

$79.99

16

Cable, Solenoid/Starter

4010093

$47.99

17

Cable, Battery/Solenoid

4010094

Unavailable

18

BATTERY

4011138

$107.99

19

Hook, Battery Strap

7010032

$1.59

20

Strap, Holddown, Battery

5412499

$4.62

21

Cable, Battery/Engine

4010095

Unavailable

22

KIT, BATTERY BOLT

2202848

$4.39

23

Cover, Battery

5431769

$14.39

24

PAD-BATTERY

5810290

$7.27

25

Screw

7512027

$1.49

26

Nut, Nylok

7518287

$3.19

27

Switch, Magnetic

4011251

$75.99

28

WASHER, SPRING LOCK

7552801

$1.59

29

Nut, Jam

7547283

$3.19
