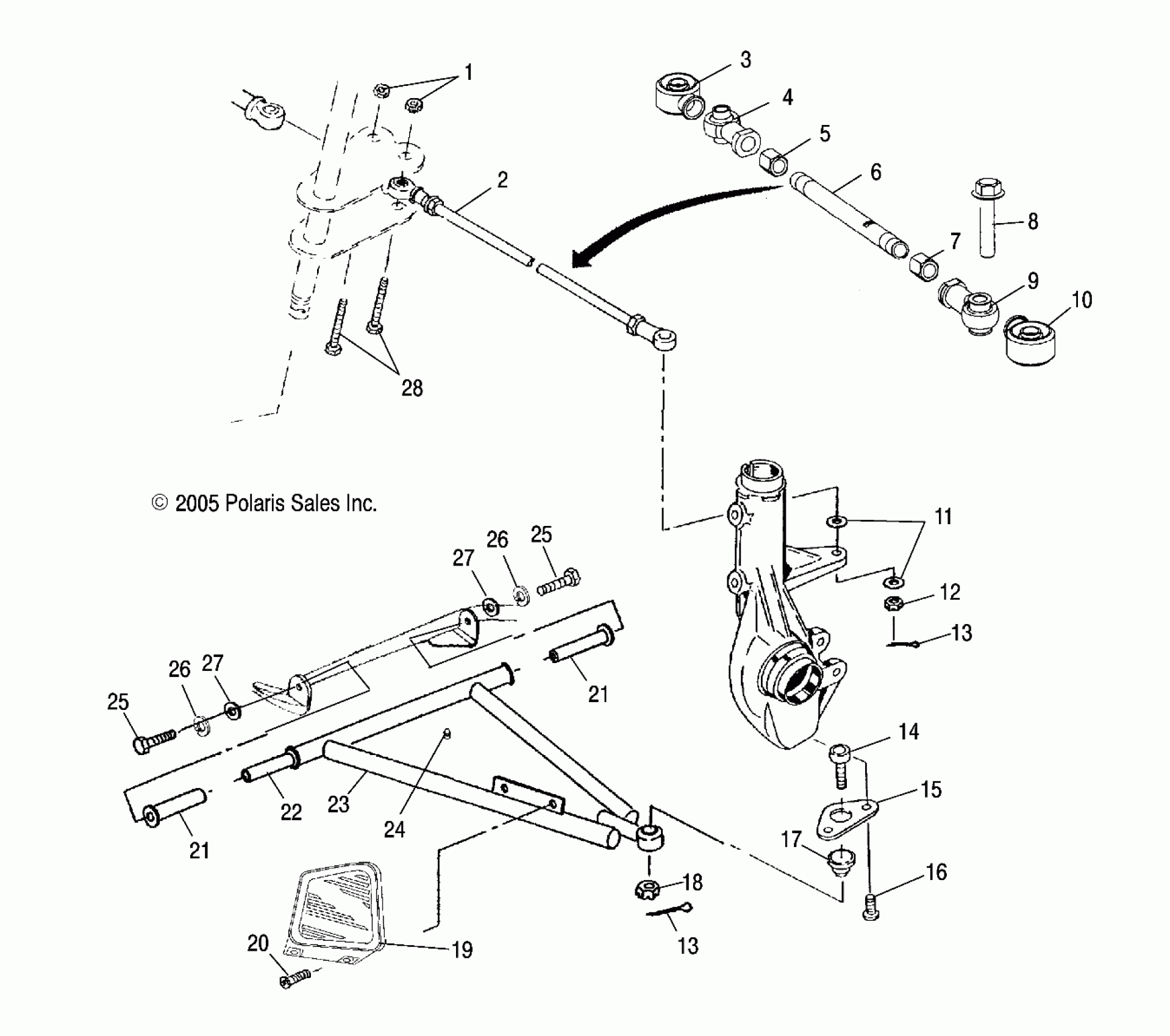

Polaris SPORTSMAN 6X6 - A06CL50AA A-ARM/STRUT MOUNTING - A06CL50AA (4999201649920164B05) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.19

2

Asm., Tie Rod [Incl. 3-9][If built after 10/01/05]

1822852

$133.56

2

Asm., Tie Rod [Incl. 3-9][If built before 10/01/05]

1820805

$133.56

3

Boot, Seal, Rod End [If built after 10/01/05]

5412928

$11.32

3

Boot, Seal, Rod End [If built before 10/01/05]

5411291

$11.32

4

Rod End, RH [If built after 10/01/05]

7061139

$60.70

4

Rod End, RH [If built before 10/01/05]

7061034

$60.70

5

Nut, Jam

7542711

$2.38

6

Tie Rod

5020926

$44.51

7

Nut, Jam, LH

7547028

$2.38

8

Bolt

7517909

$5.56

9

Rod End, LH [If built after 10/01/05]

7061138

$56.65

9

Rod End, LH [If built before 10/01/05]

7061054

$56.65

10

Boot, Seal, Rod End [If built after 10/01/05]

5412929

$11.32

10

Boot, Seal, Rod End [If built before 10/01/05]

5411920

$11.32

11

Washer

7556099

$1.59

12

Nut

7547177

$0.79

13

Pin, Cotter

7661203

$1.19

13

Pin, Cotter

7661203

$1.19

14

Joint, Ball

7080927

$28.32

15

BRACKET-BALL JOINT

5211121

$32.37

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19

17

Boot, Rubber

5410548

$4.84

18

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

19

Shield, CV Joint, Black, RH

5431149-070

$24.27

19

Shield, CV Joint, Black, LH

5431150-070

$24.27

20

Screw

7512084

$1.19

21

Bushing, A-Arm, Long, Black

5434551

$5.56

21

Bushing, A-Arm, Long, Black

5434551

$5.56

22

Shaft, A-Arm

5133806

$33.24

23

Kit, A-Frame, LH [Incl. 13,21,22,25]

2202282

$161.49

23

Kit, A-Frame, RH [Incl. 13,21,22,25]

2202283

Unavailable

24

Fitting, Lubrication

7080433

$1.19

25

Screw

7512492

$1.19

25

Screw

7512492

$1.19

26

Washer, Spring Lock

7552603

$0.79

26

Washer, Spring Lock

7552603

$0.79

27

WSHR-.813X.406X.105-Y

7555832

$2.38

27

WSHR-.813X.406X.105-Y

7555832

$2.38

28

Screw

7515415

$1.19
