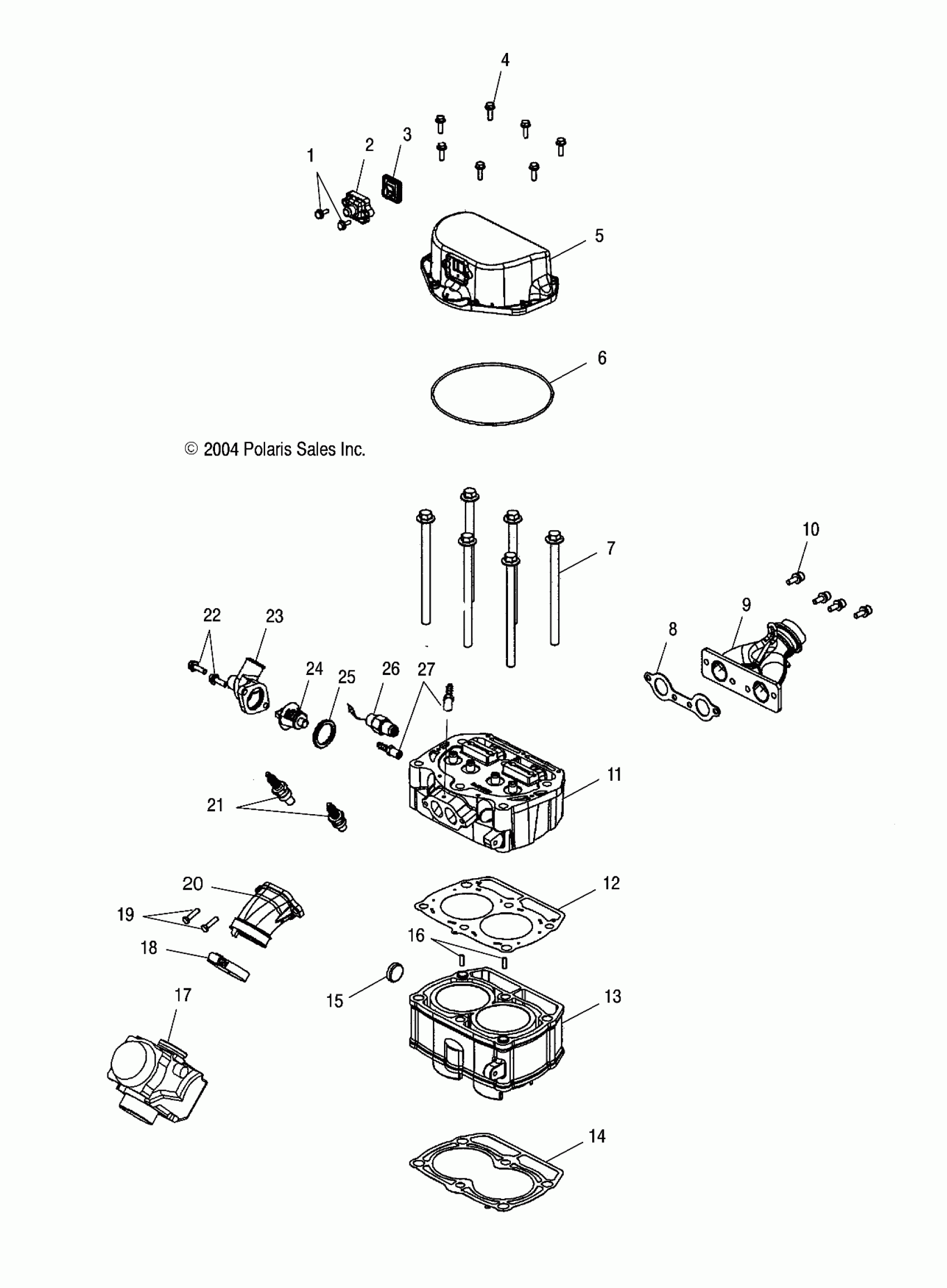

Polaris SPORTSMAN 600 - A05MH59AK CYLINDER and CYLINDER HEAD - A05MH59AK/AN (4994199419D09) Diagram

#

Description
Price

1

SCREW

7517277

$3.17

2

Cover, Breather

5432533

$8.89

3

ASM-REED W/GASKET

3021352

$32.37

4

SCREW

7516822

$2.38

5

Cover, Rocker

1201973

$99.74

6

Seal

5411862

$48.56

7

Bolt

7518274

$10.32

8

GASKET, EXHAUST

5811511

$48.56

9

Manifold, Exhaust

1261077-029

$164.99

10

Screw

7518234

Unavailable

11

Guide, Valve

5131429

Unavailable

11

Head, Cylinder

3021483

Unavailable

12

Gasket, Head

5247358

Unavailable

13

Kit, Cylinder [Incl. 15]

2202695

Unavailable

14

GASKET, BASE

5247360

$40.46

15

PLUG

7051534

$5.65

16

DOWEL

7661175

$5.65

17

ASM., CARBURETOR [SEE CARBURETOR PG. D12, REF. 48]

----

Unavailable

18

Clamp, Hose

7080681

$9.52

19

Screw

7517666

Unavailable

20

Adapter, Carburetor

1253415

$106.65

21

Spark Plug, RC7YC

3070195

$3.97

22

SCREW

7516822

$2.38

23

Cover, Thermostat

5631390

Unavailable

24

Thermostat

7052352

$60.70

25

O-Ring

5411521

$24.19

26

Sensor, Thermister [If built before 10/04/04]

4010398

$40.46

26

Sensor, Thermister [If built after 10/04/04]

4011071

Unavailable

27

Fitting

7052145

$9.52
