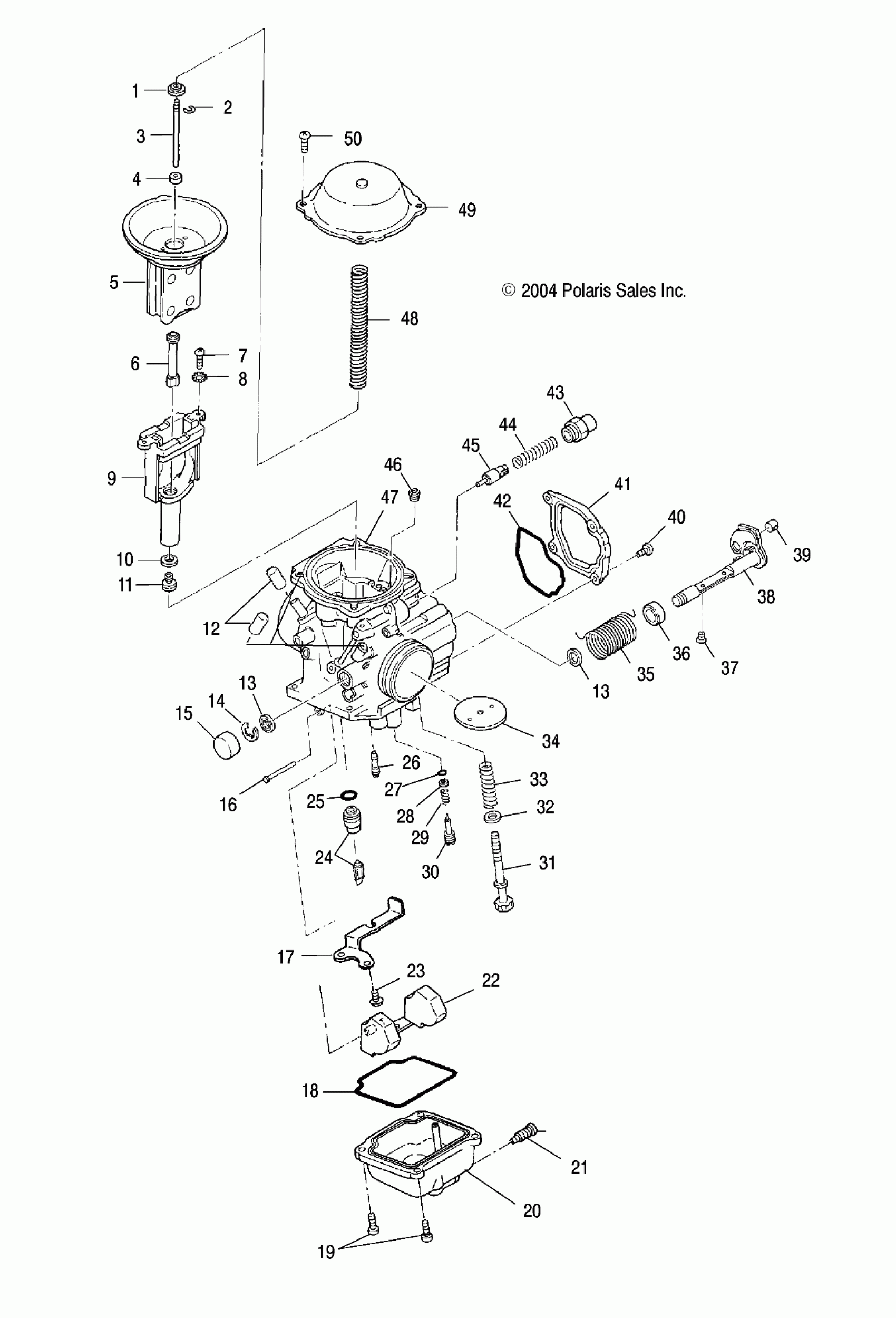

Polaris SPORTSMAN 600 - A05MH59AK CARBURETOR - A05MH59AK/AN (4994199419D11) Diagram

#

Description
Price

1

RING

3130507

$5.59

2

E-RING

3130508

$6.46

3

Needle, Jet

3130963

$34.74

4

RING

3130752

$5.59

5

Diaphragm

3130732

$123.99

6

JET, NEEDLE, P-6

3131363

$35.99

7

SCREW

3130541

$11.19

8

WASHER, SPRING

3130540

$4.79

9

ASM., JET BLOCK

-------

Unavailable

10

WASHER

3130014

$1.59

11

Jet, Main, #157.5

3130572

$24.27

12

Cap

5434505

$4.84

13

SEAL

3130515

$11.99

13

SEAL

3130515

$11.99

14

E-RING

-------

Unavailable

15

CAP

3130519

$10.39

16

PIN, FLOAT

3130361

$8.89

17

PLATE

3130594

$27.99

18

O-RING

3130532

$31.99

19

SCREW

3130520

$1.59

20

Asm., Float Body

3130590

$103.99

21

SCREW

3130521

$10.39

22

ASM., FLOAT

3130529

$79.99

23

SCREW

3130591

$3.99

24

Valve, Needle [1.5]

3131360

$47.99

25

O-RING

3130533

$5.59

26

Jet, Pilot, #45

3131397

$24.27

27

O-Ring

3130522

$5.65

28

Washer

3130523

$2.39

29

Spring

3130525

$4.79

30

Adjuster

3130524

$23.99

31

Screw, Adjust

3130546

$13.59

32

Ring

3130545

$12.13

33

Spring

3130544

$9.59

34

VALVE, THROTTLE [100]

-------

Unavailable

35

Spring

3131398

$11.90

36

Ring

3130514

$7.19

37

SCREW

-------

Unavailable

38

ASM., THROTTLE SHAFT

-------

Unavailable

39

GUIDE, CABLE

3130543

$27.99

40

SCREW

3130535

$7.19

41

Cover (If built before 7/16/04)

3130511

$43.99

41

Cover and O-Ring (If built after 7/16/04)

1202421

Unavailable

42

O-Ring

3130512

$39.99

43

HOLDER, GUIDE

3131396

$13.59

44

SPRING

3130538

$4.79

45

ASM., PLUNGER

3131395

$35.99

46

JET, AIR, #160

3130625

$13.59

47

Asm., Carburetor, 600 [Incl. 1-12](If built before 1/31/05)

1253537

Unavailable

47

Asm., Carburetor, 600 [Incl. 1-12](If built after 1/31/05)

1203059

Unavailable

48

Spring, Compression

3131451

$13.75

49

ASM., COVER

3130503

$63.99

50

SCREW-MIKUNI C2=0408

3130592

Unavailable
