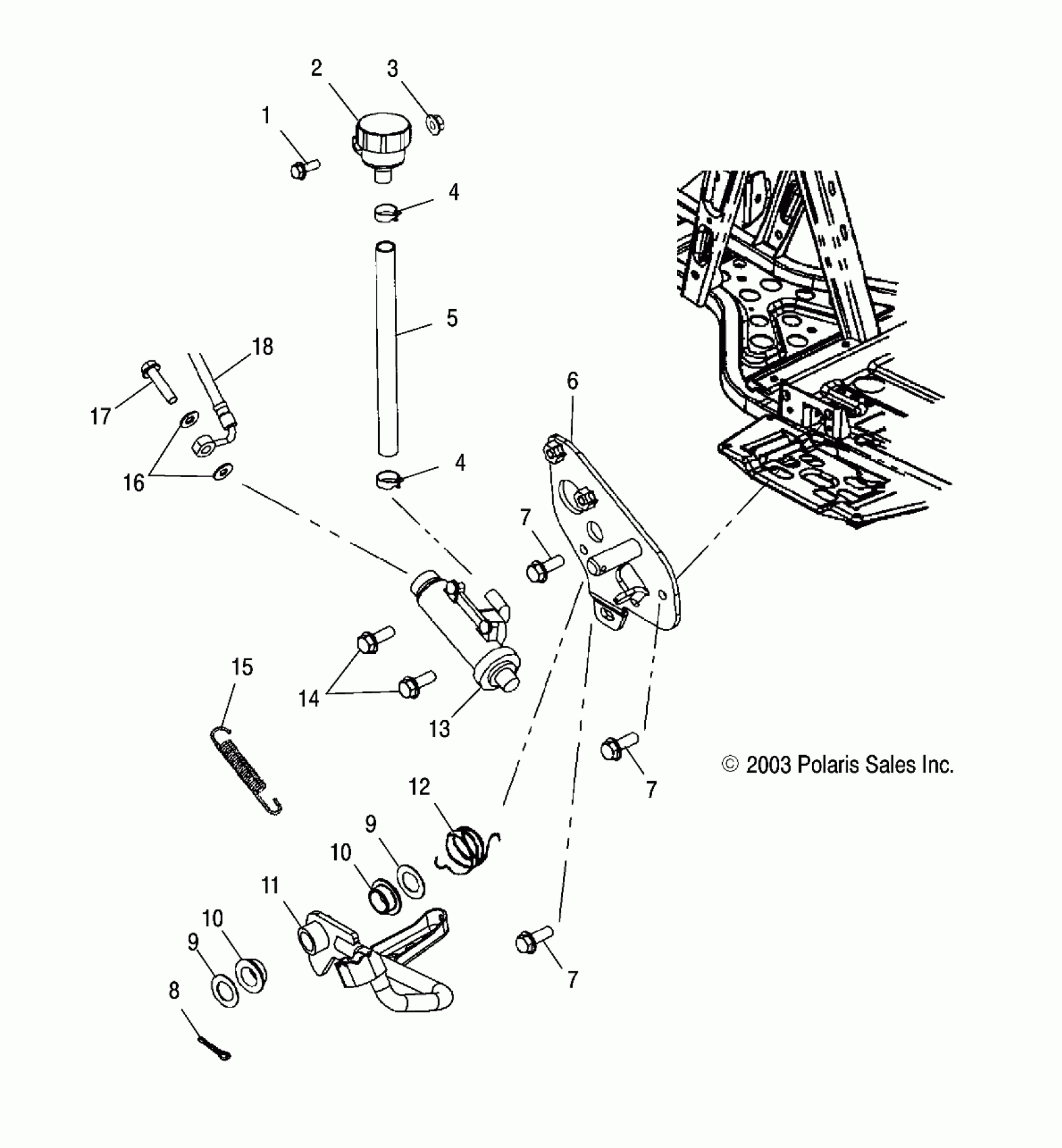

Polaris SPORTSMAN 600 - A03CH59AA REAR MASTER CYLINDER/FOOT PEDAL - A03CH59AA/AF/AG (4987438743B12) Diagram

#

Description
Price

1

Screw

7512240

$3.97

2

Reservoir, Brake, Rear

1930854

$36.41

3

Nut

7542153

$1.59

4

HOSE CLAMP, RED

7080003

$1.19

4

HOSE CLAMP, RED

7080003

$1.19

5

Hose, Reservoir [If built before 7/17/02]

1910331

$4.92

5

Hose, Reservoir [If built after 7/17/02]

1910438

$8.08

6

Mount, Brake

1013414-067

Unavailable

7

SCREW

7517386

$1.19

7

SCREW

7517386

$1.19

7

SCREW

7517386

$1.19

8

PIN, COTTER

7661401

$0.79

9

WASHER

7555919

$4.99

9

WASHER

7555919

$4.99

10

BUSHING, PIVOT, PEDAL

5433189

$3.97

10

BUSHING, PIVOT, PEDAL

5433189

$3.97

11

Rod, Brake

1013415-067

Unavailable

12

SPRING-TORSION,BRAKE

7041750

$8.89

13

Master Cylinder, Brake, Rear

1910301

$174.03

14

Screw

7515158

$4.76

15

Spring, Gear Selector Lockout

7042075

$54.99

16

Seal

5410988

$4.84

17

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

18

Line, Rear Brake, Foot

1910429

$89.03
