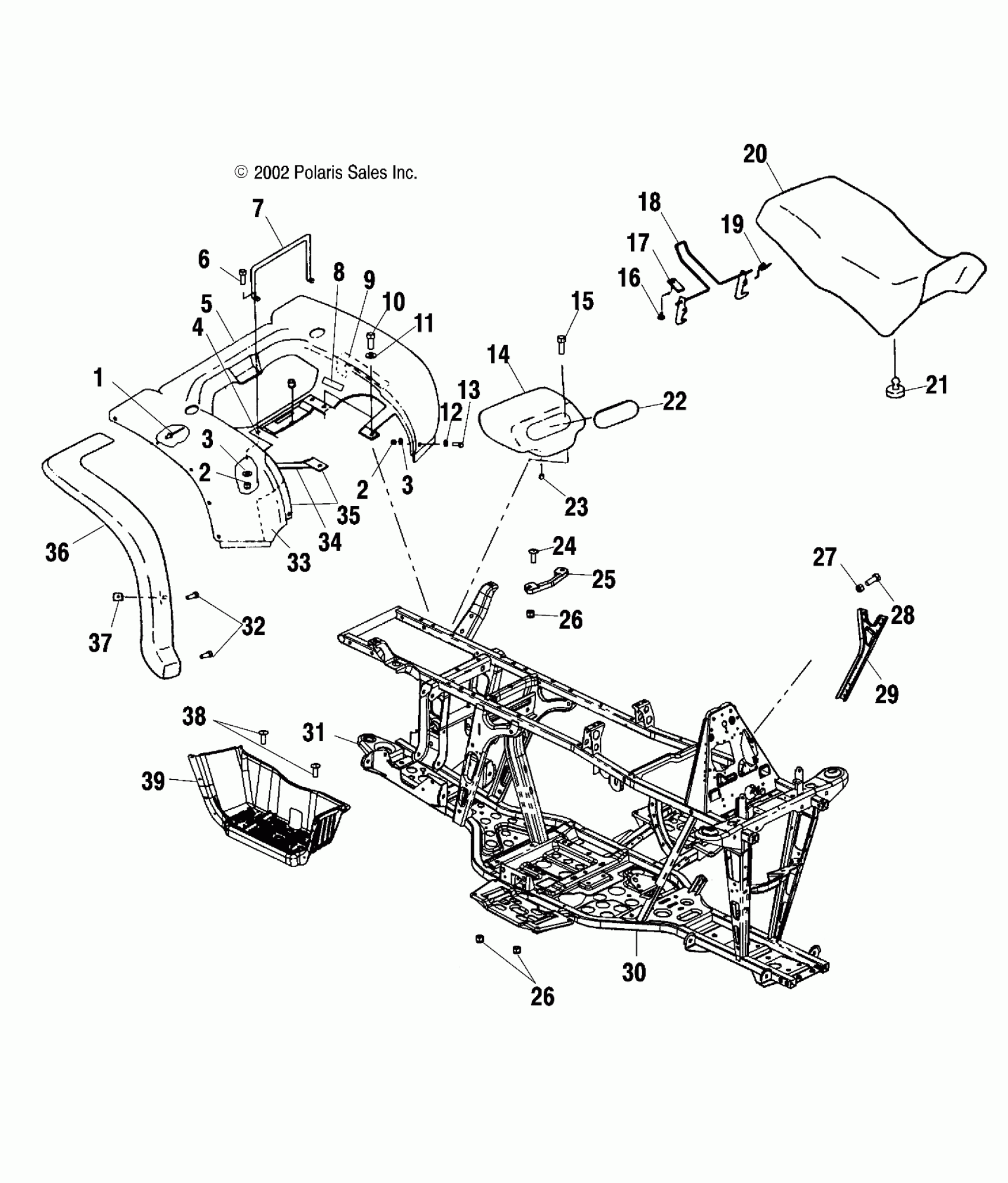

Polaris SPORTSMAN 600 - A03CH59AA REAR CAB, SEAT AND MAIN FRAME - A03CH59AA/AF/AG (4977187718A03) Diagram

#

Description
Price

1

Rivet, T-Lock

7661645

Unavailable

2

Nut, Nylok

7541925

$0.79

2

Nut, Nylok

7541925

$0.79

3

WASHER

7555792

$4.76

3

WASHER

7555792

$4.76

4

Foil, Rear Cab, Rear

5811107

Unavailable

5

Cab, Rear [AA]

5432117-400

Unavailable

5

Cab, Rear [AG]

5432117-341

Unavailable

5

Cab, Rear [AF]

5432117-177

Unavailable

6

Bolt

7511930

$2.38

7

Retainer, Seat Latch

5246076

Unavailable

8

Decal, 4 Stroke, Carb/Filter Information

7079902

Unavailable

9

Foil, Tape, Rear Cab

5811308

$12.94

10

SCREW

7512242

$2.38

11

Washer, Flat

7555859

$1.19

12

WASHER

7556034

$2.38

13

Screw

7512085

Unavailable

14

Box, Tool

5431786

$53.17

15

Screw

7517375

$1.19

16

RIVET

7621403

$1.19

17

BRACKET, LEVER RETAINER

5211033

$34.99

18

LATCH, SEAT

1040387

$48.56

19

SPRING, LATCH

7041370

$9.52

20

Covering, Seat, Black

2682958-070

$149.75

20

Asm., Seat, Black

2682957-070

$445.22

21

BUMPER-RUBBER

5412067

$3.97

22

Cover, Tool Box

5431787

Unavailable

23

Cap, Drain

5410896

$5.65

24

SCREW

7517377

$4.76

25

Spacer [LH Only]

5432280

$8.73

26

Nut, Nylok

7542122

$1.19

26

Nut, Nylok

7542122

$1.19

27

NUT, NYLOK, FLANGED

7542153

$1.59

28

Screw

7512283

$3.97

29

Brace, Frame

5244751-067

Unavailable

30

Frame, Main

1014006-067

Unavailable

31

DECAL, HITCH, 1500 LBS.

7170509

$7.27

32

SCREW

7512232

$1.19

33

Foil, Rear Fender

5811111

Unavailable

34

Foil

5811087

Unavailable

35

Foil, Rear Cab, Front

5811106

Unavailable

36

Guard, Mud, Rear, LH

5431796-070

Unavailable

36

Guard, Mud, Rear, RH

5431797-070

Unavailable

37

NUT, U-TYPE SPEED

7670057

$1.19

38

Screw [LH Side]

7517377

$4.76

38

Screw [RH Side]

7517376

$0.79

39

Footwell, Black, LH

5432221-070

$230.70

39

Footwell, Black, RH

5433929-070

$230.70
