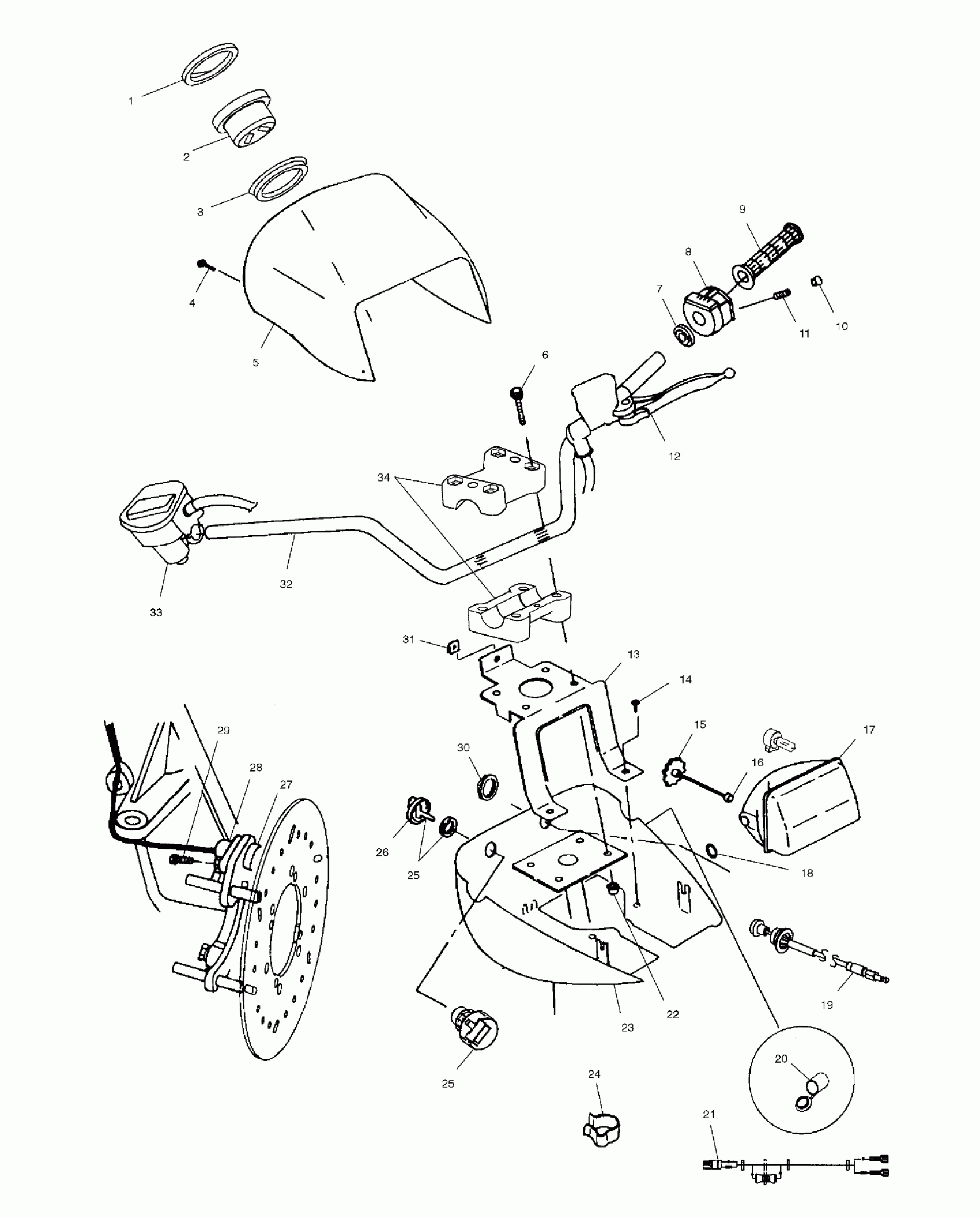

Polaris SPORTSMAN 600 - A03CH59AA HANDLEBAR AND HEADLIGHT POD - A03CH59AA/AF/AG (4977187718B13) Diagram

#

Description
Price

1

Bezel

5434380

$44.51

2

Cluster

3280425

Unavailable

3

MOUNT-RUBBER,INSTR. CLUSTER

5412138

$44.51

4

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.19

5

Pod, Handlebar, Upper [AA]

5434284-400

$133.56

5

Pod, Handlebar, Upper [AF]

5434284-382

Unavailable

5

Pod, Handlebar, Upper [AG]

5434284-341

Unavailable

6

SCREW

7517238

$4.76

7

Spacer, Switch, LH

5433903

Unavailable

8

Switch, Handlebar

4010560

$151.99

9

Grip, Handlebar

5433834-070

$28.32

10

Plug

5432952

$6.46

11

SCREW, SET

7517625

$4.76

12

ASM., MASTER CYLINDER [SEE CONTROLS - MASTER CYLINDER/BRAKE LINE PG. B10 FOR DETAILS]

----

Unavailable

13

Bracket, Pod Mounting

5244969-067

$44.99

14

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.17

15

KNOB, ADJUSTING

4032079

$28.32

16

Rod, Adjusting

4032078

Unavailable

17

KIT-HARNESS,HEADLIGHT

2204143

$91.97

17

BULB-HEADLIGHT,50 WATT

4010253

$34.99

17

Asm., Headlamp

2410268

$109.27

18

O-RING

5410163

$1.60

19

Cable, Choke

7081008

$80.94

20

Receptacle, Pod Mount, 12V

4010638

$28.32

21

Harness, Light, Pod/Accy.

2461045

Unavailable

22

Nut, Nylok

7542122

$1.19

23

Pod, Headlight [AA][AG]

5433762-070

Unavailable

23

Pod, Headlight [AF]

5433762-177

$93.08

24

Clip, Cable Retaining

7080631

Unavailable

25

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

$14.56

25

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

25

Switch, Ignition [Incl. Key]

4010390

$109.27

25

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

$14.56

25

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

25

Switch, Ignition [Incl. Key]

4010390

$109.27

26

KEY SWITCH KEY COVER

5433534

$13.75

27

CAP

5132382

$24.27

28

Sensor

4010298

$117.37

29

Screw

7517658

$5.56

30

Nut, Choke

7080922

$3.17

31

CLIP, SCREW

7670127

$10.46

32

Tube, Handlebar

5242987-067

$119.99

33

ASM., THROTTLE CONTROL [SEE CONTROLS - THROTTLE ASM./CABLE PG. B9, REF. 5]

----

Unavailable

34

Block, Handlebar, Pegged

5631146

$10.63

34

Block, Handlebar

5631147

Unavailable
