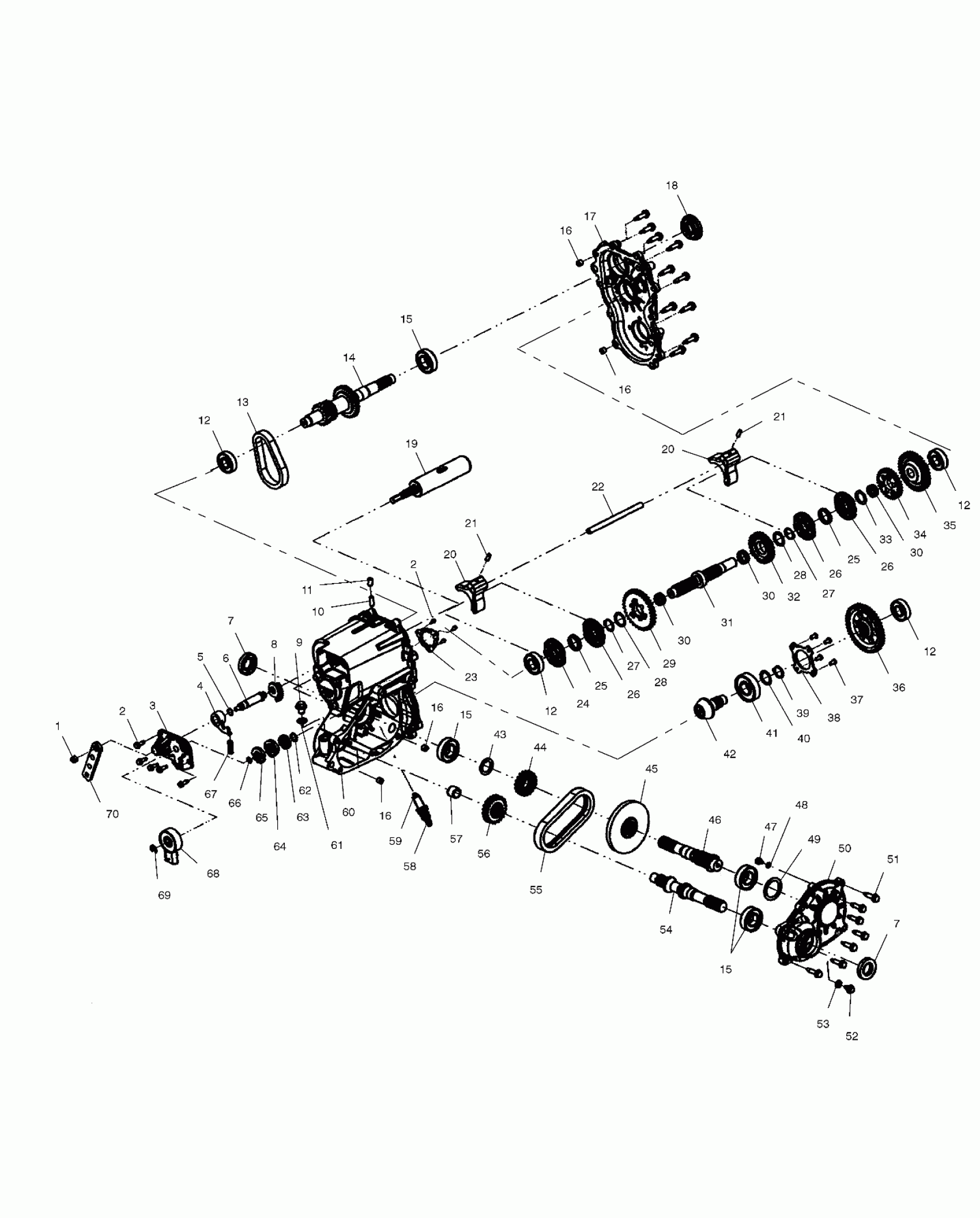

Polaris SPORTSMAN 600 - A03CH59AA GEARCASE - A03CH59AA/AF/AG (4977187718C13) Diagram

#

Description
Price

-

Asm., Main Gearcase [Incl. All]

1341432

Unavailable

1

NUT

3233961

$3.32

2

SCREW

3233826

$9.52

2

SCREW

3233826

$9.52

3

Cover

3233827

$113.32

4

Pawl, Detent

3233829

$36.41

5

O-RING

3233869

$5.65

6

SHAFT, SHIFT

3233831

$60.70

7

Seal

3233788

$32.37

7

Seal

3233788

$32.37

8

GEAR-SECTOR,31T

3233832

$36.41

9

Plug, Oil Fill

3233711

Unavailable

10

TUBE, VENT

3233524

$9.99

11

Plug, Cap Vent

3233578

$7.99

12

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

12

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

12

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

12

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

13

Chain, Silent

3233036

Unavailable

14

Shaft, Input

3234012

$348.49

15

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

15

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

15

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

16

Pipe, Knock

3233529

$10.99

16

Pipe, Knock

3233529

$10.99

16

Pipe, Knock

3233529

$10.99

16

Pipe, Knock

3233529

$10.99

17

Cover, LH

3233865

Unavailable

18

Seal

3233874

$32.37

19

Drum, Shift

3233910

Unavailable

20

Fork, Shift w/Pin [Incl. 21]

3234141

Unavailable

20

Fork, Shift w/Pin [Incl. 21]

3234141

Unavailable

21

Pin, Dowel

----

Unavailable

21

Pin, Dowel

----

Unavailable

22

RAIL, SHIFT SHAFT

3233860

$64.99

23

PLATE, PARK

3233915

$40.46

24

Engagement Dog

3233916

Unavailable

25

SPRING, WAVE

3234144

$33.24

25

SPRING, WAVE

3234144

$33.24

26

ENGAGEMENT DOG

3233875

$165.94

26

ENGAGEMENT DOG

3233875

$165.94

26

ENGAGEMENT DOG

3233875

$165.94

27

RING, RETAINING

3233850

$10.32

27

RING, RETAINING

3233850

$10.32

28

WASHER

3233851

$10.32

28

WASHER

3233851

$10.32

29

GEAR, 33T

3233852

$246.89

30

BEARING, NEEDLE

3233718

$35.71

30

BEARING, NEEDLE

3233718

$35.71

30

BEARING, NEEDLE

3233718

$35.71

31

Shaft, Reverse

3233853

Unavailable

32

Sprocket, 24T

3233854

$169.99

33

WASHER

3233855

$10.32

34

Gear, 29T

3234011

Unavailable

35

Gear, 40T

3233913

Unavailable

36

Gear, 44T

3233612

Unavailable

37

Screw

3233608

$5.99

38

Cover, Bearing

3233609

$19.99

39

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

40

SPACER

3233357

$24.99

41

Bearing, Ball

3233607

$36.41

42

Subasm., Ground Spiral Bevel [Incl. 45]

3234912

Unavailable

43

WASHER,THRUST

3233619

$24.99

44

Sprocket, 22T/18T

3233782

$124.99

45

Subasm., Ground Spiral Bevel [Incl. 42]

3234912

Unavailable

46

SHAFT-OUTPUT,MAIN,REAR

3233911

$214.99

47

THRUST BUTTON

3233582

$8.99

48

SHIM

3233583

$33.24

49

SHIM

3233611

$34.99

50

Cover, Output, Front

3233781

Unavailable

51

SCREW

3234114

$7.14

52

Plug

3233777

$34.99

53

Washer

3233254

$8.08

54

SHAFT,FRONT OUTPUT

3233625

$141.65

55

CHAIN, SILENT

3233784

$93.08

56

Sprocket, 22/22T

3233783

$144.99

57

BUSHING-GARLOCK

3233552

$23.81

58

Clamp, Tie

3234013

Unavailable

59

Lockout, Park

3233917

Unavailable

60

Gearcase, Main

3233867

$569.99

61

Washer

3233324

$8.54

62

O-Ring

3233548

$33.24

63

GEAR, 16T

3233839

$36.41

64

DISC, LOCKOUT

3233838

$33.24

65

Star, Detent

3234082

$42.74

66

O-RING

3233076

$6.46

67

SPRING, COMPRESSION

3233830

$10.32

68

SWITCH

3233835

$142.49

69

RING, RETAINING

3233834

$10.32

70

Bellcrank

3233906

Unavailable
