Description

Price

1

Pump, Fuel

2520227

$79.99

2

SCREW

7517867

$1.59

3

Washer, Flat

7558301

$1.49

4

NUT-M5X.8,HX NYL-Y

7546601

$1.49

5

Nut, Well

7541923

$5.59

6

Strap, Fuel Pump Mounting

5243829

Unavailable

7

Bolt

7512329

$3.99

8

HOSE CLAMP, RED

7080003

$1.49

8

HOSE CLAMP, RED

7080003

$1.49

8

HOSE CLAMP, RED

7080003

$1.49

8

HOSE CLAMP, RED

7080003

$1.49

8

HOSE CLAMP, RED

7080003

$1.49

8

HOSE CLAMP, RED

7080003

$1.49

9

Line, Fuel

8450103-600

Unavailable

9

Line, Fuel

8450103-600

Unavailable

10

FILTER

2530009

$5.65

11

Sheath, Foil

8450080-50

Unavailable

12

Kit, Short Block, ATV 600 03 NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for w

2202361

Unavailable

13

WASHER

7555770

Unavailable

14

Cable, Ground, Engine

4010132

Unavailable

15

SCREW

7517386

$1.49

16

LINE, FUEL

8360009-600

Unavailable

17

Hose, Formed

5412287

$10.71

18

VALVE, CHECK

7051011

Unavailable

19

Screw

7516714

$3.99

20

WASHER, SPRING LOCK

7552901

$1.49

21

NUT, FLANGE LOCK

7547108

$4.79

21

NUT, FLANGE LOCK

7547108

$4.79

21

NUT, FLANGE LOCK

7547108

$4.79

21

NUT, FLANGE LOCK

7547108

$4.79

22

Bracket, Mount, Top

5244622-067

Unavailable

23

Washer

7555815

$3.99

23

Washer

7555815

$3.99

24

Screw

7517868

$7.99

25

Cable, Black

4010470

Unavailable

26

Boot, Intake

5411944

Unavailable

27

CLAMP, HOSE

7080451

$7.19

28

Mount, Rubber

3021119

Unavailable

29

Bolt

7518197

Unavailable

30

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

31

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

32

BUSHING-.437 X.770 X.50

5430261

$7.19

33

Washer, Spring Lock

7552603

$1.49

34

Screw

7512492

$1.49

35

Mount, Rubber, Top

3110044

Unavailable

36

Mount, Lower, Front

5244771-067

$127.59

37

WASHER, FLAT

7555823

Unavailable

38

Bracket, Torque Stop

5245043-067

Unavailable

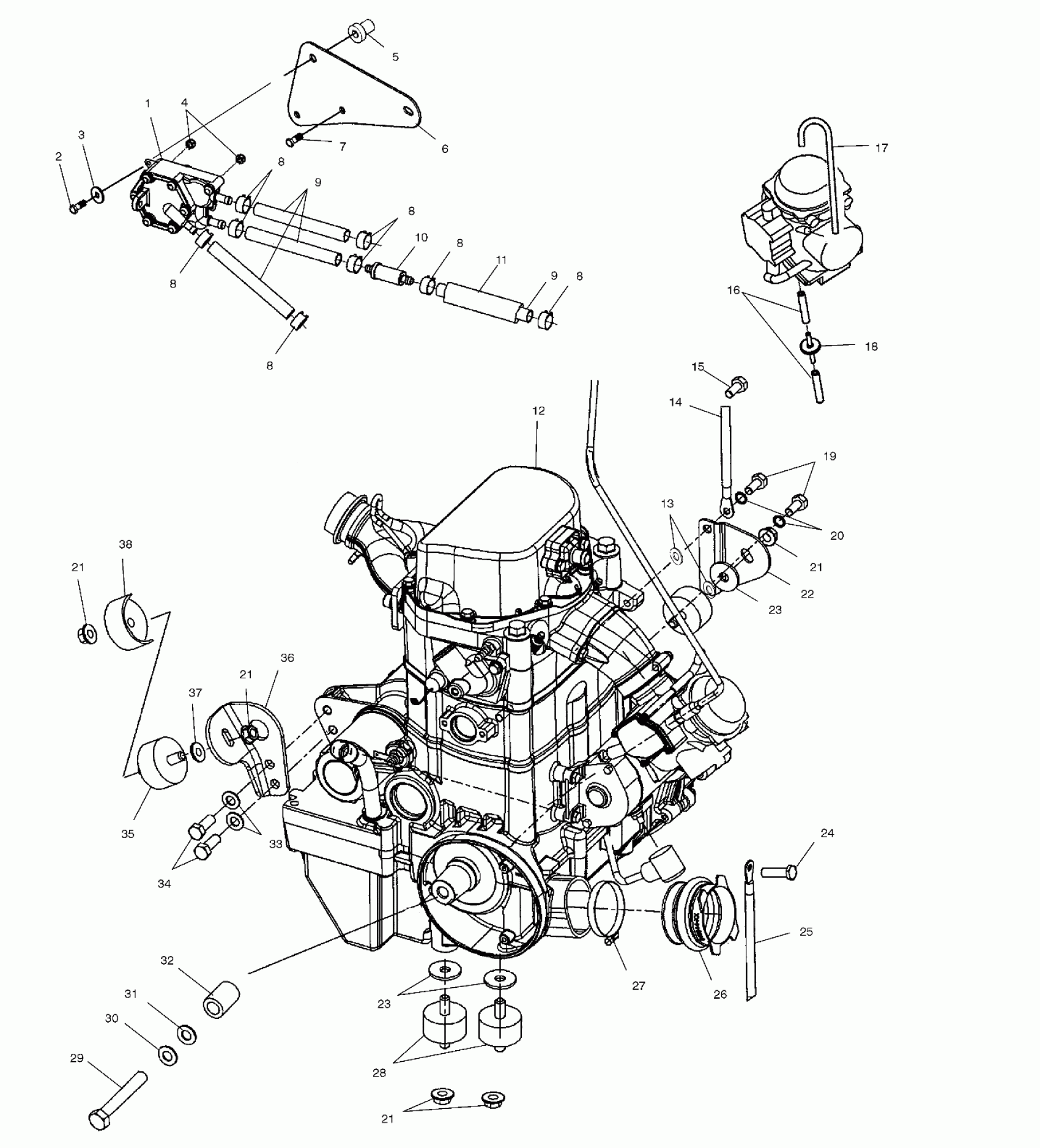

Polaris SPORTSMAN 600 - A03CH59AA ENGINE MOUNTING - A03CH59AA/AF/AG (4977187718A13) Diagram

Pump, Fuel

SCREW

Washer, Flat

NUT-M5X.8,HX NYL-Y

Nut, Well

Strap, Fuel Pump Mounting

Bolt

HOSE CLAMP, RED

HOSE CLAMP, RED

HOSE CLAMP, RED

HOSE CLAMP, RED

HOSE CLAMP, RED

HOSE CLAMP, RED

Line, Fuel

Line, Fuel

FILTER

Sheath, Foil

Kit, Short Block, ATV 600 03 NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for w

WASHER

Cable, Ground, Engine

SCREW

LINE, FUEL

Hose, Formed

VALVE, CHECK

Screw

WASHER, SPRING LOCK

NUT, FLANGE LOCK

NUT, FLANGE LOCK

NUT, FLANGE LOCK

NUT, FLANGE LOCK

Bracket, Mount, Top

Washer

Washer

Screw

Cable, Black

Boot, Intake

CLAMP, HOSE

Mount, Rubber

Bolt

WASHER-7/16-INT LK-(1222)-Z

WASHER-.440X1.25X.190 FL-Y

BUSHING-.437 X.770 X.50

Washer, Spring Lock

Screw

Mount, Rubber, Top

Mount, Lower, Front

WASHER, FLAT

Bracket, Torque Stop
