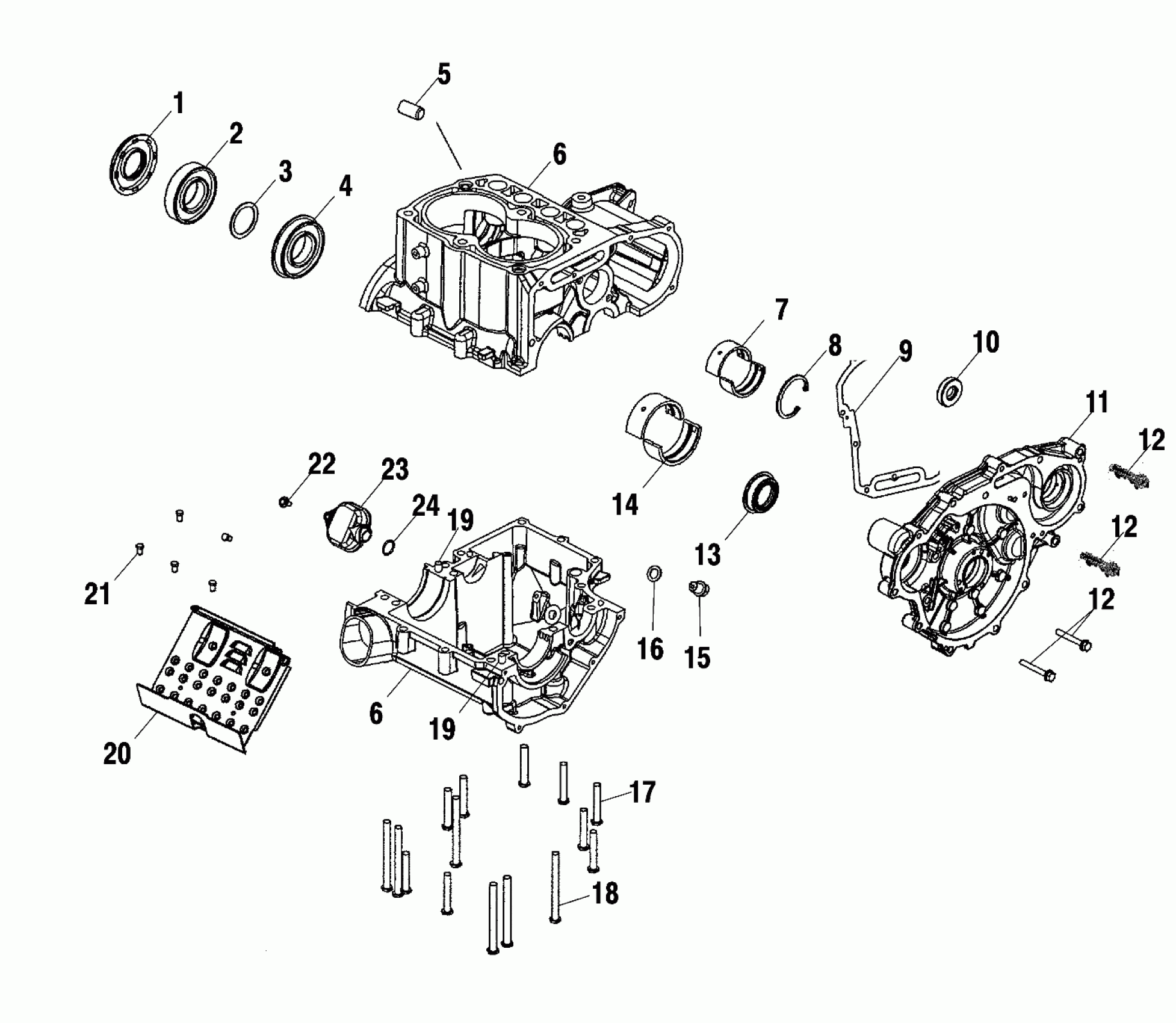

Polaris SPORTSMAN 600 - A03CH59AA CRANKCASE - A03CH59AA/AF/AG (4977187718D03) Diagram

#

Description
Price

1

Seal, Flanged

5412114

$39.99

2

BEARING, BALL

3514361

Unavailable

3

BUSHING

7556194

$3.99

4

BEARING, BALL

3514318

$43.99

5

Plug

7518007

$5.65

6

Asm., Crankcase [Incl. 8,15-24]

1201655

$1,058.49

6

Asm., Crankcase [Incl. 8,15-24]

1201655

$1,058.49

7

BEARING

5132753

Unavailable

8

RING, RETAINING

7710512

$3.99

9

Gasket

5812364

$24.27

10

Seal, Oil

5411184

Unavailable

11

Cover, Magneto

1201975

$246.89

12

Screw

7517950

$5.59

12

Screw

7517950

$5.59

12

Screw

7517950

$5.59

13

Seal

5412048

Unavailable

14

BEARING, MAIN JOURNAL

3585704

$28.56

15

Plug, Magnetic

7052306

$15.37

16

WASHER, COPPER

5812232

$1.59

17

SCREW

7517793

$5.59

18

SCREW

7517792

$2.39

19

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

19

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

20

Baffle

5211785

$39.99

21

SCREW

7518045

$10.39

22

Screw

7516603

$10.39

23

Pickup, Oil

1201970

Unavailable

24

O-Ring

5812016

$3.19
