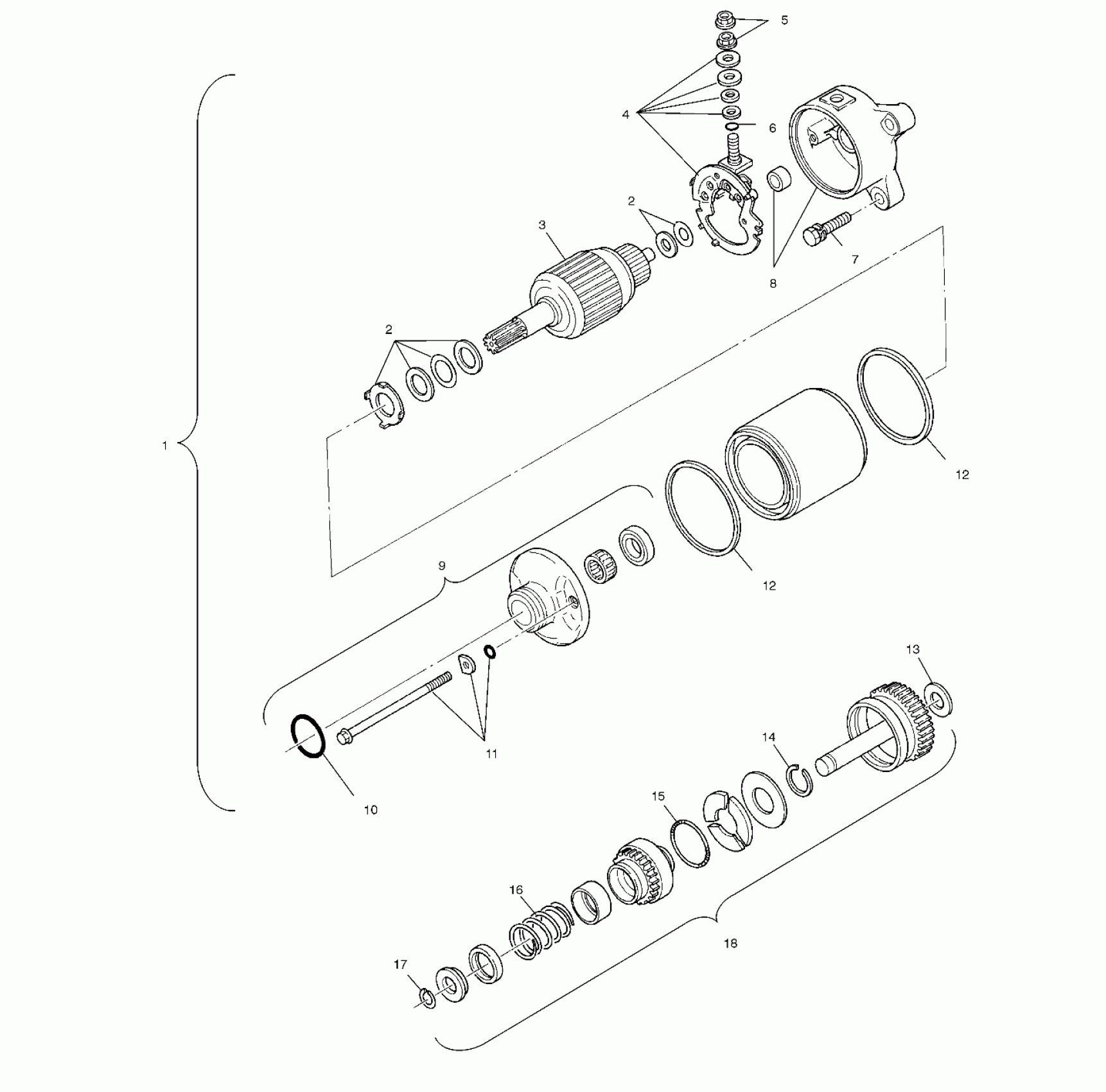

Polaris SPORTSMAN 500 ALL OPTIONS - A02CH50 STARTING MOTOR - A02CH50 ALL OPTIONS (4967436743E01) Diagram

#

Description
Price

1

Motor, Starting (Incl. 2-6,8-12) (Incl. 2-6,8-12)

3084981

Unavailable

2

Washer Set

3084982

Unavailable

2

Washer Set

3084982

Unavailable

3

Armature

3085353

Unavailable

4

Brush

3084406

Unavailable

5

NUT, FLANGE

3083649

$3.99

6

O-RING

3084408

Unavailable

7

Bolt and Washer

3082038

$3.99

8

Bracket, Rear

3085034

$91.99

9

Bracket, Front (Incl. 10) (Incl. 10)

3085033

$137.60

10

O-Ring

3240114

$5.59

11

Asm., Set Bolt (Incl. 6) (Incl. 6)

3084983

$23.99

12

RING, RUBBER

3084405

Unavailable

12

RING, RUBBER

3084405

Unavailable

13

Washer, Gear Shaft

3083737

Unavailable

14

CLIP

3084412

$9.59

15

SPRING, WEIGHT

3084411

$15.67

16

SPRING, RETURN

3084410

$2.47

17

CLIP

3084409

$7.19

18

Asm., Gear Shaft (Incl. 13-17) (Incl. 13-17)

3087030

Unavailable
