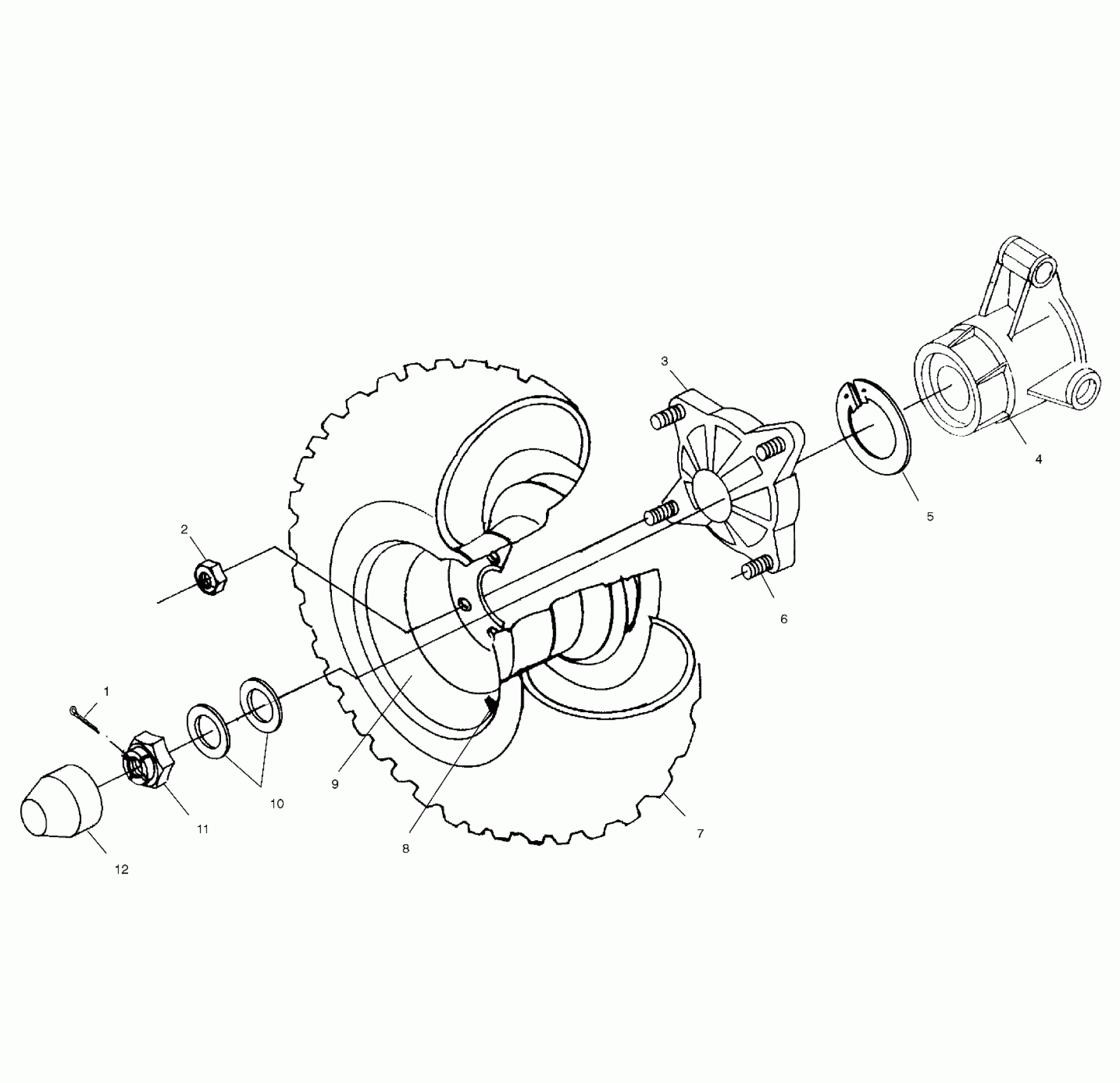

Polaris SPORTSMAN 500 ALL OPTIONS - A02CH50 REAR WHEEL DRIVE - A02CH50 ALL OPTIONS (4967436743C11) Diagram

#

Description

Price

1

PIN, COTTER

7661404

$4.79

2

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

3

Hub, Rear Wheel

5131649

Unavailable

4

Carrier, Bearing, Wheel (See Rear Suspension Pg. C10, Ref. 43)

-------

Unavailable

5

RING, RETAINING

7710440

$10.39

6

Stud

7515513

$1.49

7

Tire, 25x11-10 (AA)(AB)(AE)(EB) (AA)(AB)(AE)(EB)

5410948

Unavailable

7

Tire, 25x11-12 (AC)(AD) (AC)(AD)(AJ)(AK)(FA)(AL)(AM)(AN)

5411949

Unavailable

8

VALVE-RIM

1525017

$5.59

9

WELD-RIM,REAR,12X8.0,BLK (AC)(AD)(FA)

1520457-067

Unavailable

9

Rim, Rear, Silver (AA)(AB)(AE)(EB) (AA)(AB)(AE)(EB)

1520217-117

Unavailable

9

Rim, Rear, Chrome (AJ)(AK)(AL)(AM)(AN)

1520520

Unavailable

10

WASHER, CONE

7555796

$7.99

11

Nut, Castle

7543005

Unavailable

12

Cover, Dust, Hub

5411164

$24.27
