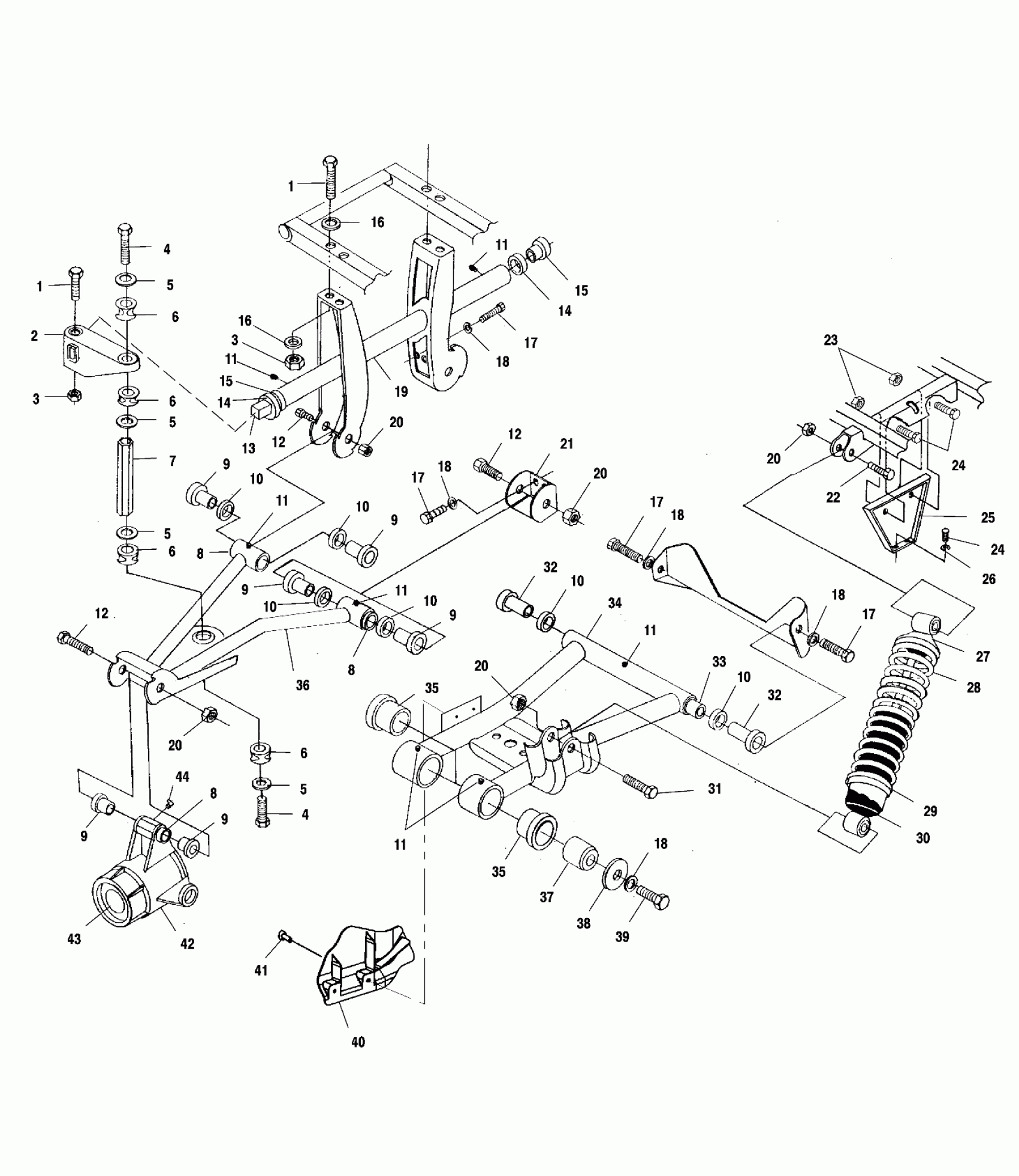

Polaris SPORTSMAN 500 ALL OPTIONS - A02CH50 REAR SUSPENSION - A02CH50 ALL OPTIONS (4967436743C09) Diagram

#

Description
Price

1

Bolt

7512329

$3.99

1

Bolt

7512329

$3.99

2

Arm, Stabilizer Bar

1580107-067

$62.92

3

NUT-5/16-18 NYLOK-Y

7542324

$1.49

3

NUT-5/16-18 NYLOK-Y

7542324

$1.49

4

SCREW

7517231

$7.19

4

SCREW

7517231

$7.19

5

Washer, Flat

7555761

$2.39

5

Washer, Flat

7555761

$2.39

5

Washer, Flat

7555761

$2.39

5

Washer, Flat

7555761

$2.39

6

BUSHING, STABILIZER

5432598

$6.39

6

BUSHING, STABILIZER

5432598

$6.39

6

BUSHING, STABILIZER

5432598

$6.39

6

BUSHING, STABILIZER

5432598

$6.39

7

ROD, LINKAGE, STABILIZER

5020827

$47.99

8

SHAFT, A-ARM, SHORT

5020826

$11.99

8

SHAFT, A-ARM, SHORT

5020826

$11.99

8

SHAFT, A-ARM, SHORT

5020826

$11.99

9

Bushing, A-Arm, Short (If built after 10/01/01)

5434548

$2.38

9

Bushing, A-Arm, Short (If built before 10/01/01)

5433063

$2.38

9

Bushing, A-Arm, Short (If built after 10/01/01)

5434548

$2.38

9

Bushing, A-Arm, Short (If built before 10/01/01)

5433063

$2.38

9

Bushing, A-Arm, Short (If built after 10/01/01)

5434548

$2.38

9

Bushing, A-Arm, Short (If built before 10/01/01)

5433063

$2.38

9

Bushing, A-Arm, Short (If built after 10/01/01)

5434548

$2.38

9

Bushing, A-Arm, Short (If built before 10/01/01)

5433063

$2.38

9

Bushing, A-Arm, Short (If built after 10/01/01)

5434548

$2.38

9

Bushing, A-Arm, Short (If built before 10/01/01)

5433063

$2.38

9

Bushing, A-Arm, Short (If built after 10/01/01)

5434548

$2.38

9

Bushing, A-Arm, Short (If built before 10/01/01)

5433063

$2.38

10

Bushing

5020677

$10.39

10

Bushing

5020677

$10.39

10

Bushing

5020677

$10.39

10

Bushing

5020677

$10.39

10

Bushing

5020677

$10.39

10

Bushing

5020677

$10.39

11

Fitting, Lubrication

7080433

$1.49

11

Fitting, Lubrication

7080433

$1.49

11

Fitting, Lubrication

7080433

$1.49

11

Fitting, Lubrication

7080433

$1.49

11

Fitting, Lubrication

7080433

$1.49

11

Fitting, Lubrication

7080433

$1.49

12

SCREW

7515472

$2.39

12

SCREW

7515472

$2.39

12

SCREW

7515472

$2.39

13

Bar, Stabilizer Tube

5334114-067

$111.33

14

Washer

7555939

Unavailable

14

Washer

7555939

Unavailable

15

Bushing, Stabilizer Tube (If built after 10/10/01)

5434549

$8.48

15

Bushing, Stabilizer Tube (If built before 10/10/01)

5433413

$8.48

15

Bushing, Stabilizer Tube (If built after 10/10/01)

5434549

$8.48

15

Bushing, Stabilizer Tube (If built before 10/10/01)

5433413

$8.48

16

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

16

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

17

Screw

7512492

$1.49

17

Screw

7512492

$1.49

17

Screw

7512492

$1.49

17

Screw

7512492

$1.49

18

Washer, Spring Lock

7552603

$1.49

18

Washer, Spring Lock

7552603

$1.49

18

Washer, Spring Lock

7552603

$1.49

18

Washer, Spring Lock

7552603

$1.49

18

Washer, Spring Lock

7552603

$1.49

19

Support, Stabilizer (If built after 10/08/01)

1541802-067

Unavailable

19

Support, Stabilizer (If built before 10/08/01)

1541322-067

Unavailable

20

Nut, Nylok

7542439

$1.49

20

Nut, Nylok

7542439

$1.49

20

Nut, Nylok

7542439

$1.49

20

Nut, Nylok

7542439

$1.49

20

Nut, Nylok

7542439

$1.49

21

Bracket, A-Arm Pivot

5242077-067

Unavailable

22

Screw

7515433

$1.59

23

Nut, Flange

7542321

$1.49

24

Bolt

7515321

$1.49

24

Bolt

7515321

$1.49

25

Support, Transmission, Upper

5224667-067

$74.99

26

WASHER, SPRING LOCK

7552901

$1.49

27

Retainer, Spring

5630885

$10.03

28

Spring, Compression, Rear (AA)(AB)(AC)(AD)(AE) (AA)(AB)(AC)(AD)(AE)(AJ)(AM)(AL)

7041453-067

$94.99

28

Spring, Compression, Rear (EB) (EB)

7041519-067

Unavailable

29

CAM, ADJUSTING, SPRING

5631014

$31.99

29

Sleeve, Shock Protector

5433551

$39.99

30

Shock, Rear

7041959

$123.99

31

Screw

7515415

$1.49

32

Bushing, A-Arm, Long (If built after 10/01/01)

5434551

$5.01

32

Bushing, A-Arm, Long (If built before 10/01/01)

5433066

$5.01

32

Bushing, A-Arm, Long (If built after 10/01/01)

5434551

$5.01

32

Bushing, A-Arm, Long (If built before 10/01/01)

5433066

$5.01

33

Shaft, A-Arm

5020681

Unavailable

34

Arm, Control, Lower, LH

1012717-067

Unavailable

34

Arm, Control, Lower, RH

1012718-067

Unavailable

35

Bushing, Control, Lower (If built after 10/01/01)

5434550

$4.62

35

Bushing, Control, Lower (If built before 10/01/01)

5433065

$4.62

35

Bushing, Control, Lower (If built after 10/01/01)

5434550

$4.62

35

Bushing, Control, Lower (If built before 10/01/01)

5433065

$4.62

36

Arm, Control, Upper, LH

1040730-067

Unavailable

36

Arm, Control, Upper, RH

1040731-067

Unavailable

37

Bushing, Bearing Carrier

5631141

Unavailable

38

Washer

7555936

$4.99

39

Screw

7517297

$5.99

40

Shield, Rear, RH

5433099-070

Unavailable

40

Shield, Rear, LH

5433098-070

Unavailable

41

Screw

7512084

$1.49

42

Carrier, Wheel Bearing

5131738

$111.96

43

Bearing, Wheel Carrier

3585502

Unavailable

44

Fitting, Lubrication

7080586

Unavailable
