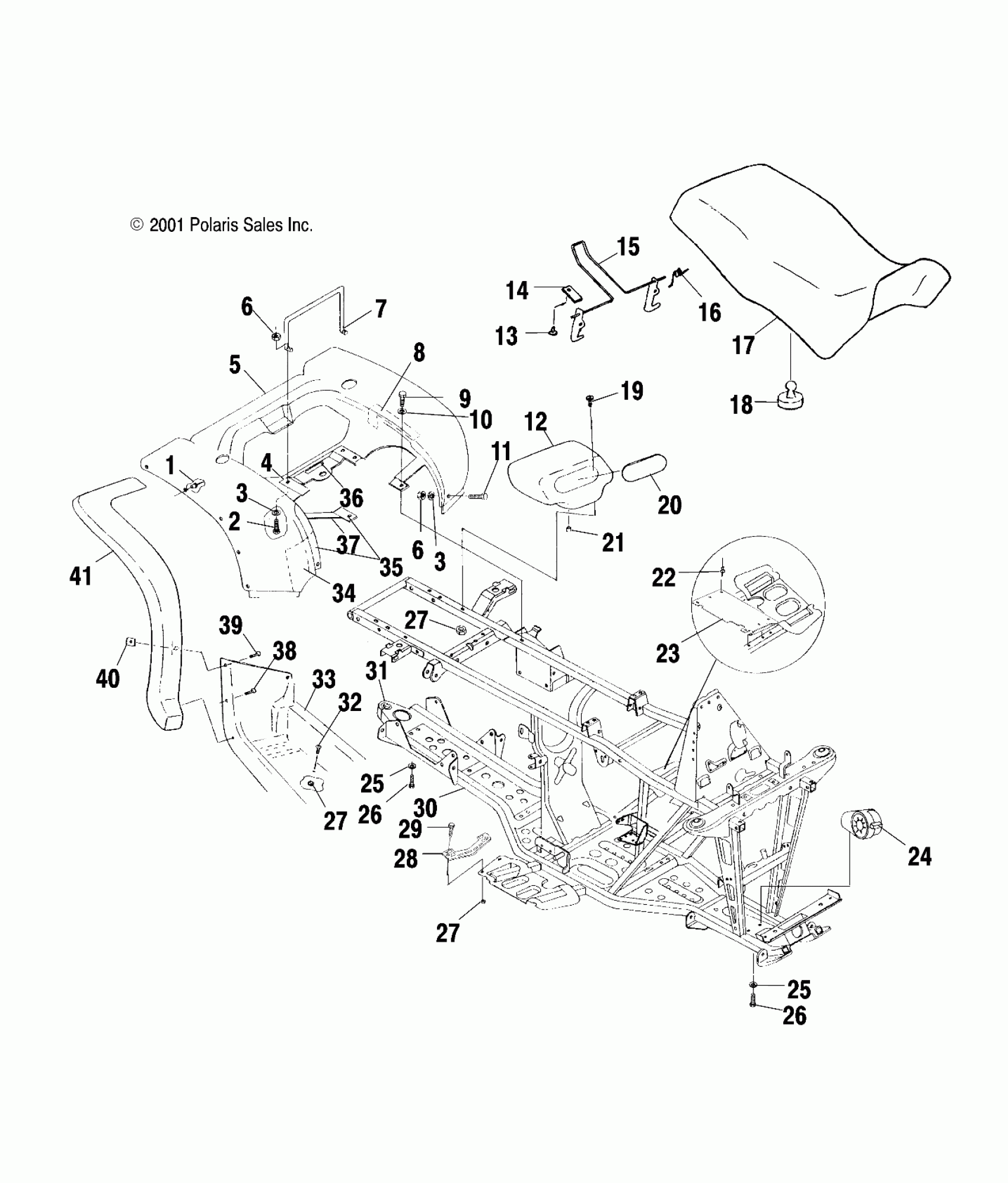

Polaris SPORTSMAN 500 ALL OPTIONS - A02CH50 REAR CAB AND SEAT - A02CH50 ALL OPTIONS (4967436743A03) Diagram

#

Description
Price

1

Rivet, T-Lock

7661645

$3.99

2

Bolt

7511930

$2.39

3

WASHER

7555792

$4.79

3

WASHER

7555792

$4.79

4

Foil, Rear Cab, Rear

5811107

$6.46

5

Cab, Rear, Sonic Blue (AJ)(AL)

5432117-341

Unavailable

5

Cab, Rear, Yellow (AE) (AE)

5432117-053

Unavailable

5

Cab, Rear, Porsche Red (AB)(EB) (AB)(EB)

5432117-136

Unavailable

5

Cab, Rear, Gun Metal (AK)

5432117-317

Unavailable

5

Cab, Rear, Black Metallic (AM)

5432117-177

Unavailable

5

Cab, Rear, Mossy Oak (AC) (AC)

5433282-283A

Unavailable

5

Cab, Rear, Sterling Spruce (AN)

5432117-333

Unavailable

5

Cab, Rear, Wetlands Camo (AD) (AD)

5433941-315A

$559.99

5

Cab, Rear, Olive Green Metallic (AA) (AA)

5432117-359

Unavailable

5

Cab, Rear, C.E.W. Camo (FA)

5434393-375A

Unavailable

6

Nut, Nylok

7541925

$1.49

6

Nut, Nylok

7541925

$1.49

7

Retainer, Seat Latch

5224592

Unavailable

8

Foil, Tape, Rear Cab

5811308

$12.79

9

SCREW

7512242

$2.39

10

Washer, Flat

7555859

$1.49

11

Screw

7512085

Unavailable

12

Box, Tool

5431786

$53.59

13

RIVET

7621403

$1.49

14

BRACKET, LEVER RETAINER

5211033

$29.25

15

LATCH, SEAT

1040387

$47.99

16

SPRING, LATCH

7041370

$9.59

17

Covering, Seat, Black (AA)(AB)(AC)(EB) (AA)(AB)(AC)(EB)(AN)

2682958-070

$141.65

17

Asm., Seat, Black (AA)(AB)(AC)(EB) (AA)(AB)(AC)(EB)(AK)(FA)(AN)

2682441-070

$424.98

17

Foil, Seat Base, Large

5811104

Unavailable

17

Foil, Seat Base, Small

5811105

$9.91

17

Asm., Seat (AL)(AM)

2683104

$424.98

17

Cover, Seat (AL)(AM)

2683105

$141.65

17

Asm., Seat, Delta Marsh (AD) (AD)

2682441-316

$424.98

17

Covering, Seat, Delta Marsh (AD) (AD)

2681747-316

$141.65

17

Asm., Seat (AJ)

2683017

$424.98

17

Covering, Seat (AJ)

2683018

$141.65

18

BUMPER-RUBBER

5412067

$3.99

19

Screw

7517375

Unavailable

20

Cover, Tool Box

5431787

Unavailable

21

Cap, Drain

5410896

$5.59

22

Rivet

7661638

$1.49

23

Guard, Clutch

5246103-067

$6.63

24

FRONT HOUSING (See Front Housing Pg. C13 for Details) (See Front Housing Pg. C13 for Details)

-------

Unavailable

25

Washer, Spring Lock

7552603

$1.49

25

Washer, Spring Lock

7552603

$1.49

26

Screw

7512492

$1.49

26

Screw

7512492

$1.49

27

Nut, Nylok

7542122

$1.49

27

Nut, Nylok

7542122

$1.49

27

Nut, Nylok

7542122

$1.49

28

Spacer, Footwell

5432280

$8.79

29

SCREW

7517377

$4.79

30

Frame, Main (If built before 9/03/01)

1013325-067

Unavailable

31

Decal, Hitch

7078261

Unavailable

31

Frame, Main (If built after 9/03/01)

1013729-067

Unavailable

32

Screw

7517376

Unavailable

33

Footwell, Black, LH

5432221-070

$230.70

34

Foil, Foam, Rear Fender

5811111

$32.37

34

Footwell, Black, RH

5433219-070

$230.70

35

Foil, Rear Cab, Front

5811106

$8.89

36

Decal, Carb/Filter Information

7079902

Unavailable

37

Foil, Foam

5811087

Unavailable

38

SCREW

7512232

$1.49

39

SCREW

7517685

$1.59

40

NUT, U-TYPE SPEED

7670057

$1.49

41

Guard, Mud, Rear, LH

5431796-070

Unavailable

41

Guard, Mud, Rear, RH

5431797-070

Unavailable
