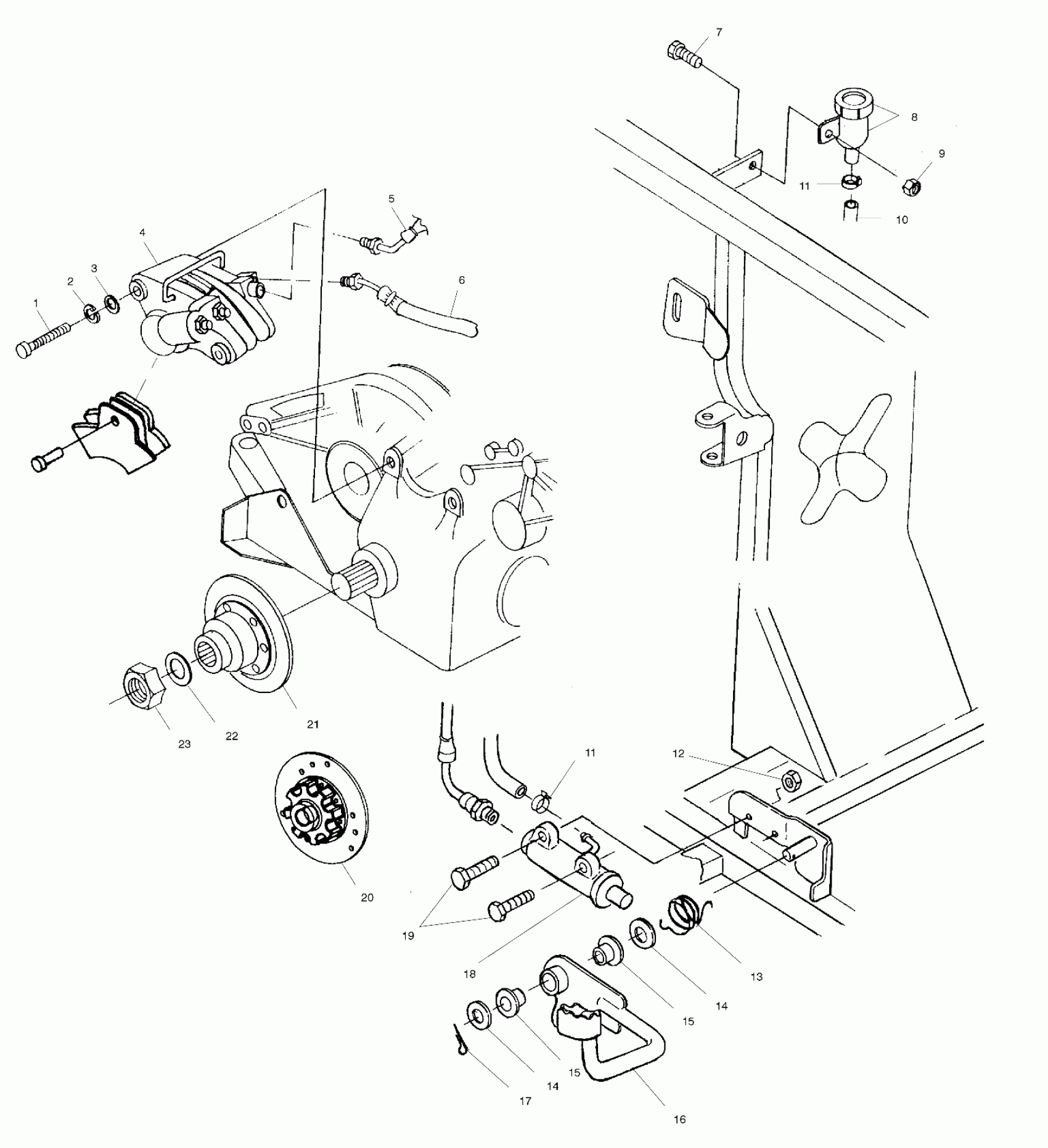

Polaris SPORTSMAN 500 ALL OPTIONS - A02CH50 REAR BRAKE/FOOT PEDAL - A02CH50 ALL OPTIONS (4967436743B09) Diagram

#

Description
Price

1

Screw

7515497

$3.97

2

Washer, Spring Lock

7552603

$0.79

3

Washer, Flat

7555806

$0.79

4

Kit, Seal

2201180

$64.75

4

Kit, Bleeder Replacement

2201428

$27.78

4

Piston, STEPPED BORE

2201181

$83.33

4

Kit, Brake Pad (Incl. Spacer and Pin) (Incl. Spacer and Pin)

2201399

$38.08

4

Asm., Caliper, Brake, Rear

1910553

$288.87

5

Line, Brake

1910479

$89.03

6

LINE, BRAKE, STAINLESS STEEL (See Controls-Master Cylinder Brake Line Pg. B8,Ref. 8)

----

Unavailable

7

BOLT

7512240

$3.97

8

Reservoir, Brake, Rear

1930854

Unavailable

9

NUT, NYLOK, FLANGED

7542153

$1.59

10

Hose, Reservoir

1910315

$14.51

11

HOSE CLAMP, RED

7080003

$1.19

11

HOSE CLAMP, RED

7080003

$1.19

12

Nut, Nylok

7542122

$1.19

13

SPRING-TORSION,BRAKE

7041750

$8.89

14

WASHER

7555919

$4.99

14

WASHER

7555919

$4.99

15

BUSHING-PEDAL PIVOT

5431107

$8.73

15

BUSHING-PEDAL PIVOT

5431107

$8.73

16

Rod, Brake

1910280-067

Unavailable

17

PIN, COTTER

7661401

$0.79

18

Master Cylinder, Brake, Rear

1910301

$174.03

19

Bolt

7512247

Unavailable

20

Disc, Brake (EB) (EB)

1910439

$214.29

21

Disc, Brake (AA)(AB)(AC)(AD)(AE) (AA)(AB)(AC)(AD)(AE)(AJ)(AK)(FA)(AM)(AN)

1910440

Unavailable

22

Washer, Spring

7571620

$7.14

23

Nut, Nylok, Thin

7547046

$5.56
