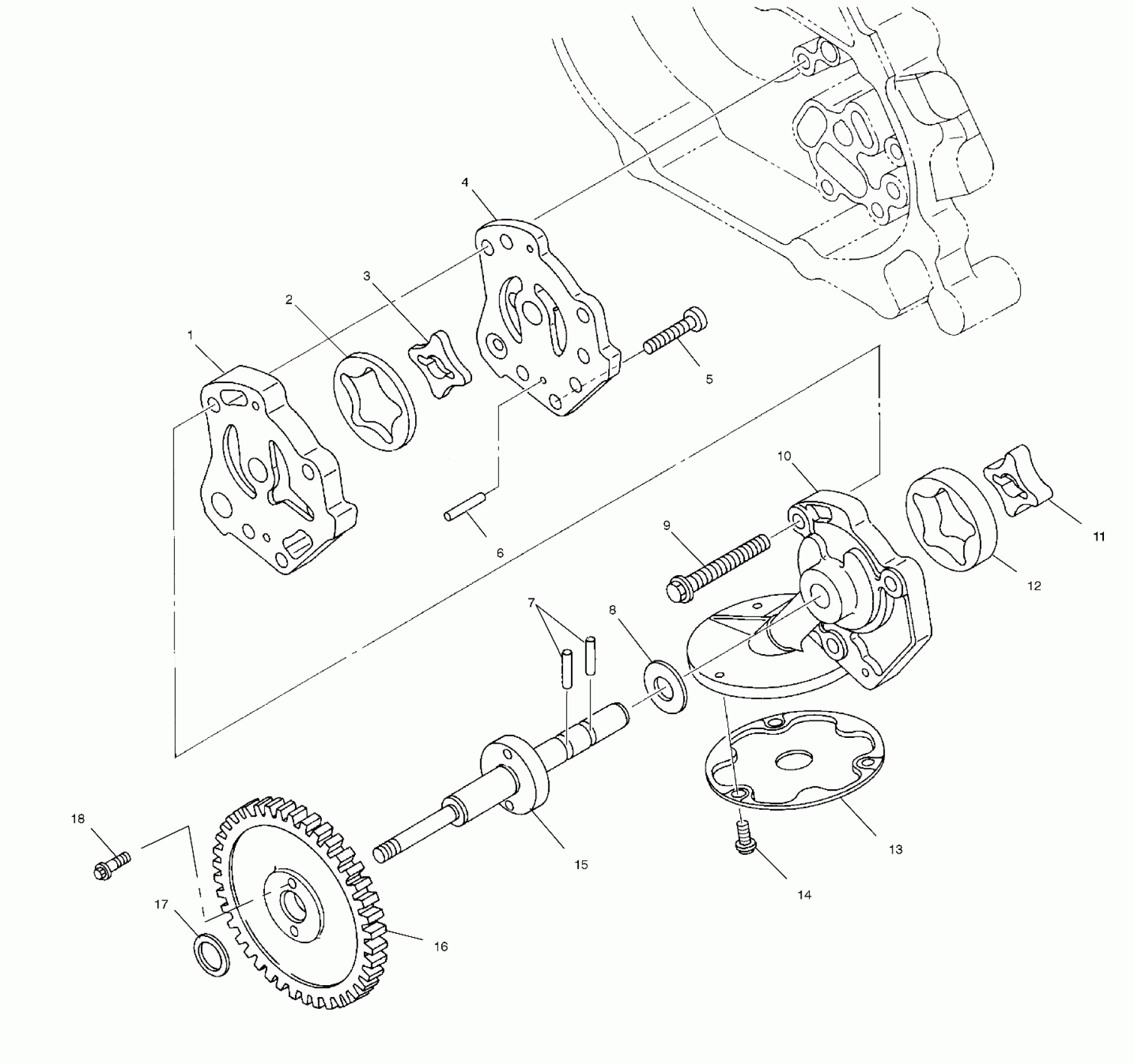

Polaris SPORTSMAN 500 ALL OPTIONS - A02CH50 OIL PUMP - A02CH50 ALL OPTIONS (4967436743D12) Diagram

#

Description
Price

1

Case 2, Oil Pump

3084946

$75.40

2

Rotor, Outer Feed

3084949

$44.51

3

Rotor, Inner Feed

3084948

Unavailable

4

Asm., Oil Pump (Incl. 1-8,10-15) (Incl. 1-8,10-15)

3085817

Unavailable

4

Case 1, Oil Pump

3084945

Unavailable

5

SCREW

3085535

Unavailable

6

PIN, DOWEL

3084955

Unavailable

7

PIN, DOWEL

3084954

$7.14

8

WASHER

3084953

$3.17

9

Bolt and Washer

3084962

Unavailable

10

Case 3, Oil Pump

3084947

$83.33

11

ROTOR, INNER

3084950

$32.37

12

ROTOR, OUTER

3090307

$48.56

13

Strainer, Oil

3084956

Unavailable

14

Screw and Washer

3084205

$3.97

15

Shaft, Pump

3085818

Unavailable

16

Gear, Pump 2

3087173

Unavailable

17

Spacer (0.8) (0.8)

3084959

Unavailable

17

Spacer (1.2) (1.2)

3084961

Unavailable

17

Spacer (1.0) (1.0)

3084960

Unavailable

18

Bolt, Flange

3085820

Unavailable
