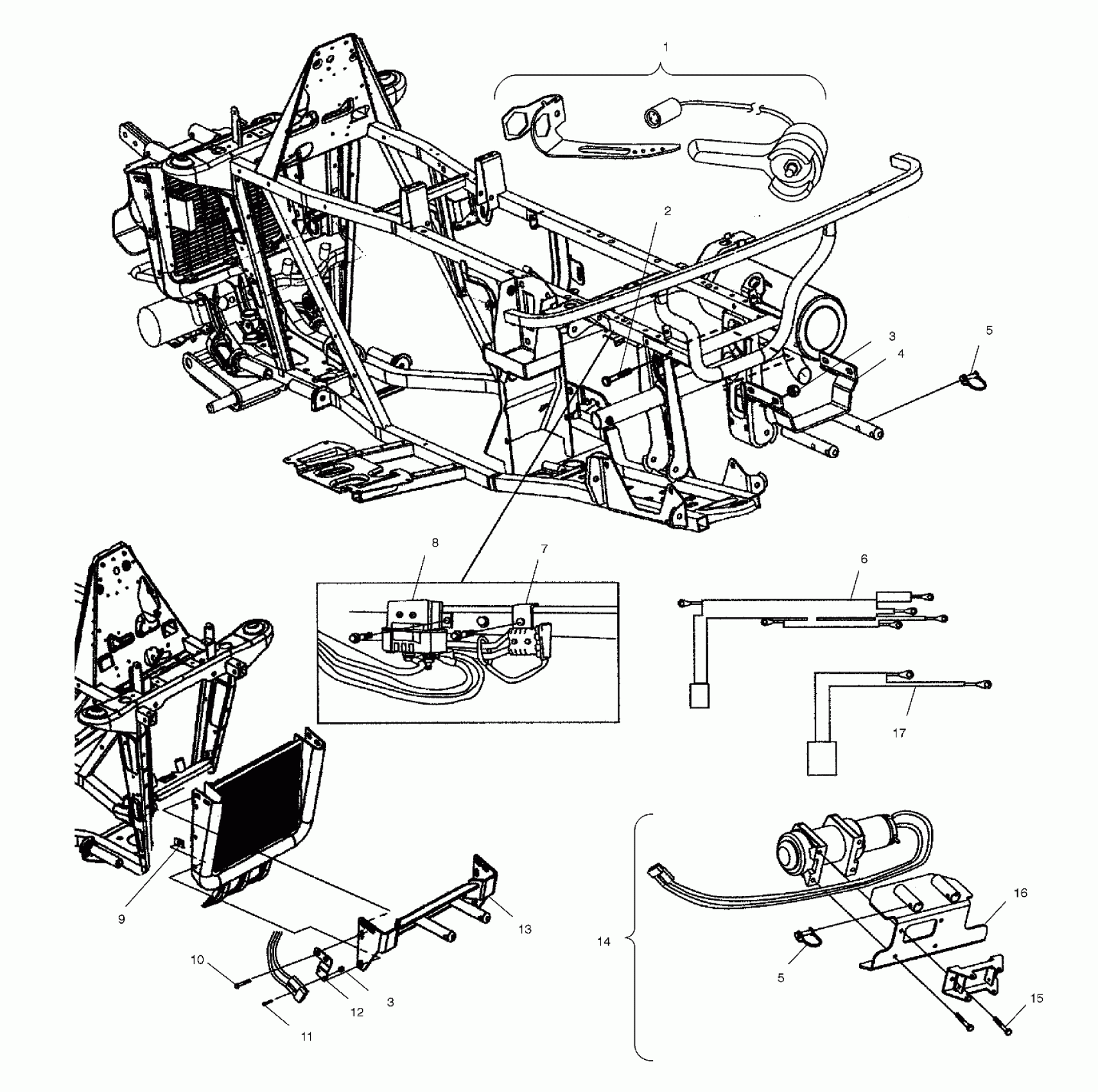

Polaris SPORTSMAN 500 ALL OPTIONS - A02CH50 MULTI MOUNT WINCH - A02CH50AJ (4967436743E04) Diagram

#

Description
Price

1

Kit, Winch Remote Holster Wire

2202140

Unavailable

2

BOLT

7515319

$4.79

3

Nut

7541602

$1.49

3

Nut

7541602

$1.49

4

Mount, Receiver, Rear

1541536-067

$156.79

5

Pin

7661114

Unavailable

5

Pin

7661114

Unavailable

6

Harness, Battery

2460916

$131.99

7

Plate, Rear

1541637-067

$11.51

8

Kit, Winch Contractor and Bracket

2202139

Unavailable

9

NUT, CHIMNEY

7670096

$1.59

10

SCREW

7517208

$1.99

11

Screw

7515180

Unavailable

12

Plate, Front

1541636-067

$11.51

13

Mount, Receiver, Front

1541537-067

Unavailable

14

Kit, Winch Asm., 2500 LB Cable

2202142

Unavailable

15

Bolt

7517914

$1.99

16

Mount, Winch

1541535-067

Unavailable

17

Harness, Main

2460929

$74.39
