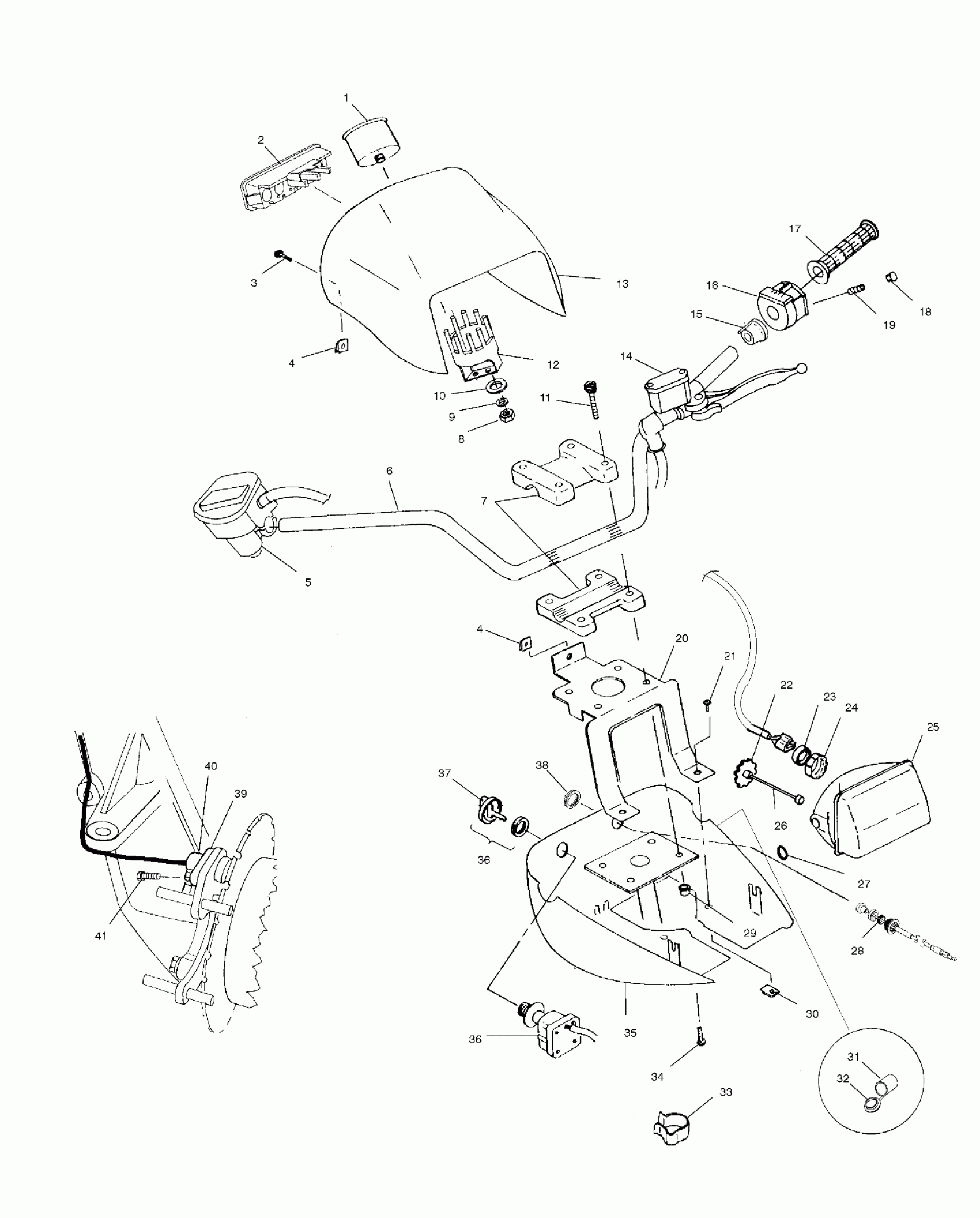

Polaris SPORTSMAN 500 ALL OPTIONS - A02CH50 HANDLEBAR AND HEADLIGHT POD - A02CH50 ALL OPTIONS (4967436743B13) Diagram

#

Description
Price

1

Speedometer, Kilo (EB) (EB)

3280377

Unavailable

1

Speedometer (AA)(AB)(AE) (AA)(AB)(AE)

3280363

Unavailable

1

Speedometer, Kilo (FA)

3280358

Unavailable

1

Speedometer (AC)(AD) (AC)(AD)(AJ)(AK)(AL)(AM)(AN)

3280378

Unavailable

2

Panel, Indicator Light

4010315

Unavailable

2

Bulb

4010416

$9.70

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.19

4

Nut, U-Type

7670086

$3.97

4

Nut, U-Type

7670086

$3.97

5

Asm., Throttle Control (See Controls - Throttle Asm./Cable Pg. B12, Ref. 5)

----

Unavailable

6

Tube, Handlebar

5242987-067

$119.99

7

Kit, Handlebar Block (Incl. Blocks and 7,11,29) (Incl. Blocks and 7,11,29)

2200774

Unavailable

7

Block, Handlebar Retainer

5630616

Unavailable

8

Nut, Brass

7541933

Unavailable

9

Washer, Lock

7555868

Unavailable

10

Washer, Flat

7558212

$0.79

11

SCREW

7515189

$1.19

12

Clamp, Speedometer

3280291

Unavailable

13

Pod, Headlight, Upper (AE) (AE)

5433763-053

Unavailable

13

Pod, Headlight, Upper (AK)

5433763-317

Unavailable

13

Pod, Headlight, Upper (AB)(EB) AB)(EB)

5433763-136

Unavailable

13

Pod, Headlight, Upper (AD) (AD)

5433972-315A

Unavailable

13

Pod, Headlight, Upper (AC) (AC)

5433975-283A

Unavailable

13

Pod, Headlight, Upper (AA) (AA)

5433763-359

Unavailable

13

Pod, Headlight, Upper (AJ)

5433763-341

Unavailable

13

Pod, Headlight, Upper (FA)

5434398-375A

Unavailable

13

Pod, Headlight, Upper (AL)

5433763-288

Unavailable

13

Pod, Headlight, Upper (AM)

5433763-177

Unavailable

13

Pod, Headlight, Upper (AN)

5433763-333

Unavailable

14

Asm., Master Cylinder (See Controls - Master Cylinder/Brake Line Pg. B8 for details)

----

Unavailable

15

Spacer, Switch, LH

5433903

Unavailable

16

Switch, Handlebar, H/L/O/Rev./OR

4010422

$151.99

17

Grip, Handlebar

5433834-070

$28.32

18

PLUG, HOLE

5432952

$6.46

19

SCREW, SET

7517625

$4.76

20

Bracket, Pod Mounting

5244969-067

$44.99

21

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.17

22

KNOB, ADJUSTING

4032079

$28.32

23

BOOT, HEADLIGHT

5411120

$28.32

24

Collar, Locking

4032077

$27.78

25

KIT-HARNESS,HEADLIGHT

2204143

$91.97

25

BULB-HEADLIGHT,50 WATT

4010253

$34.99

25

Asm., Headlamp

2410268

$109.27

26

Rod, Adjusting

4032078

Unavailable

27

O-RING

5410163

$1.60

28

Cable, Choke

7081008

$80.94

29

Nut, Nylok

7542122

$1.19

30

Nut, U-Type

7670089

$5.56

31

Receptacle, Pod Mount, 12V

4010283

Unavailable

32

Cap, Rubber

5411744

Unavailable

33

Clip, Cable Retaining

7080631

Unavailable

34

Screw

7522021

Unavailable

35

Pod, Headlight, Lower

5433762-070

Unavailable

35

Pod, Headlight, Lower (AM)

5433762-177

$93.08

36

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

$14.56

36

Blank, Key, Series 2200, 2300, 2700, 2800.

4010321

$14.29

36

Switch, Ignition (Incl. Key) (Incl. Key)

4010390

$109.27

36

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

$14.56

36

Blank, Key, Series 2200, 2300, 2700, 2800.

4010321

$14.29

36

Switch, Ignition (Incl. Key) (Incl. Key)

4010390

$109.27

37

KEY SWITCH KEY COVER

5433534

$13.75

38

Nut, Choke

7080922

$3.17

39

Sensor, Hall Effect

4010298

$117.37

40

Cap, Hall Sensor

5132382

$24.27

41

Screw

7517658

$5.56
