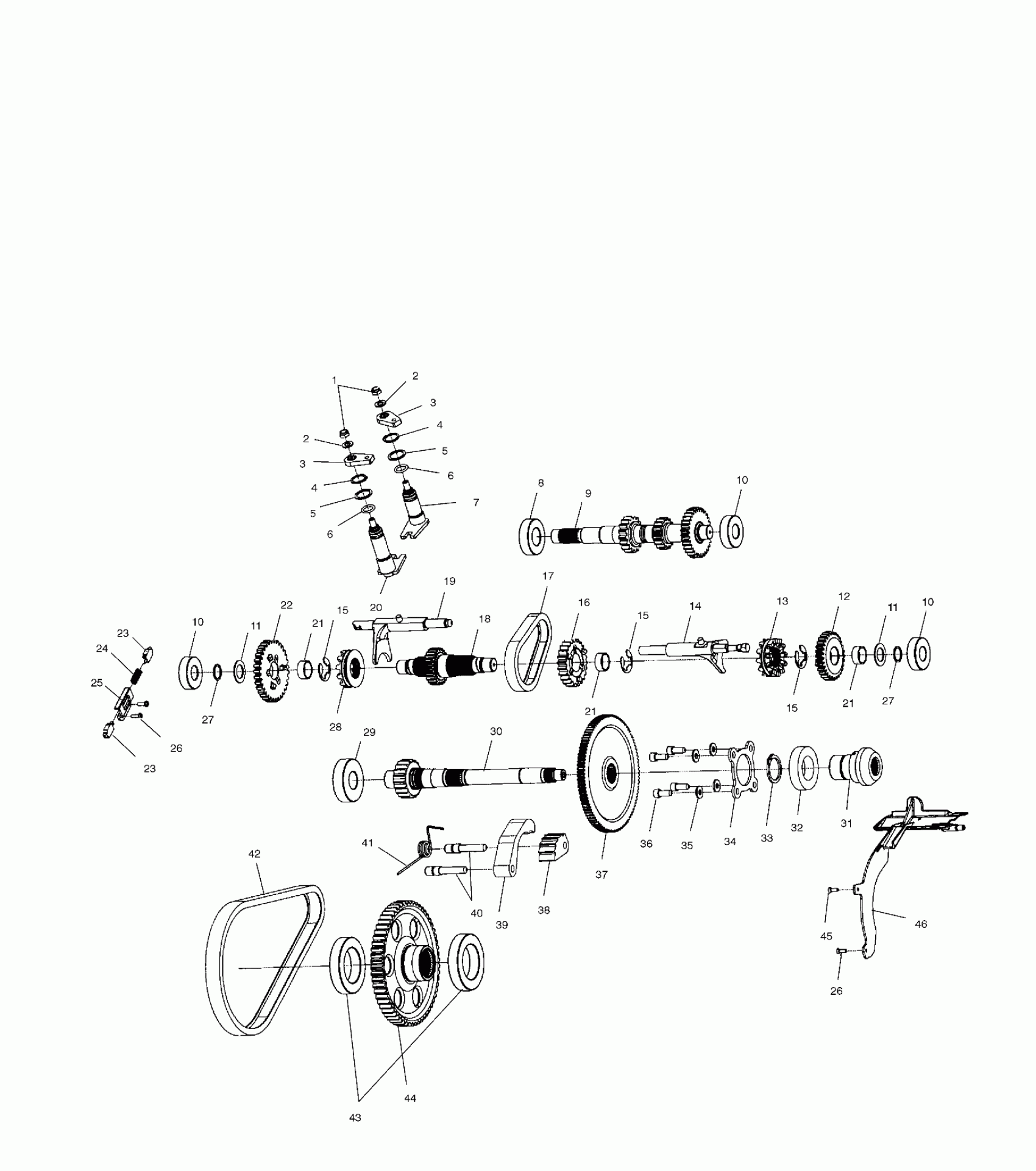

Polaris SPORTSMAN 500 ALL OPTIONS - A02CH50 GEARCASE (Internal Components) - A02CH50 ALL OPTIONS (4967436743D01) Diagram

#

Description
Price

-

Asm., Gearcase (Incl. 1-37 and all on Gearcase (Cases and Snorkel) Pg. C14)

1341360

Unavailable

1

Nut

3233055

Unavailable

2

Washer

3233054

$6.46

2

Washer

3233054

$6.46

3

Bellcrank, HLR

3233153

$27.99

3

Bellcrank, HLR

3233153

$27.99

4

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

4

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

5

Washer

3233040

$9.59

5

Washer

3233040

$9.59

6

O-Ring

3233548

$27.99

6

O-Ring

3233548

$27.99

7

Shaft, Shift

3233774

Unavailable

8

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

9

Shaft, Input, 31T, HCR

3233571

Unavailable

10

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

10

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

10

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

11

WASHER, THRUST

3233176

$9.59

11

WASHER, THRUST

3233176

$9.59

12

Gear, 30T

3233744

Unavailable

13

Engagement Dog, High

3233743

Unavailable

14

Fork, Shift, H/R

3233664

Unavailable

15

Ring, Retaining

3233720

$9.59

15

Ring, Retaining

3233720

$9.59

15

Ring, Retaining

3233720

$9.59

16

Sprocket, 24T

3233719

$109.27

17

Chain, Silent, 34P

3233036

Unavailable

18

Shaft, Reverse, HCR

3233742

$174.60

19

Fork, Shift, Low

3233775

Unavailable

20

Shaft, Shift

3233661

Unavailable

21

BEARING, NEEDLE

3233718

$35.99

21

BEARING, NEEDLE

3233718

$35.99

21

BEARING, NEEDLE

3233718

$35.99

22

Gear, 36T

3233745

Unavailable

23

Pin, Interlock

3233308

Unavailable

23

Pin, Interlock

3233308

Unavailable

24

Spring, Interlock

3233189

Unavailable

25

Bracket, Interlock

3233309

$20.63

26

Screw

3233747

Unavailable

26

Screw

3233747

Unavailable

27

Ring, Retaining

3233177

$6.39

27

Ring, Retaining

3233177

$6.39

28

Engagement Dog, Low

3233732

$169.98

29

BEARING

3233020

$47.99

30

Shaft, Center Drive

3233715

Unavailable

31

Pinion, 16T, Spiral Bevel

3233365

Unavailable

32

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

33

RING, RETAINING

3233364

$6.39

34

Cover, Bearing, Center Drive

3233263

Unavailable

35

Washer

7552901

$1.49

36

Screw

3233262

$1.83

37

Gear, Output, 100T, HCR

3233360

Unavailable

38

Chain Tensioner, Cam

3233434

$12.79

39

Chain Tensioner, Shoe

3233433

$27.99

40

PIN, DOWEL

3233432

$7.19

41

SPRING, TORSION

3233431

$23.99

42

Chain, Silent

3233430

Unavailable

43

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

44

Sprocket, 60T

3233670

Unavailable

45

Screw

3233282

Unavailable

46

Deflector, Oil

3233669

$7.94
