GEARCASE (Cases and Snorkel) - A02CH50 ALL OPTIONS (4967436743C14)

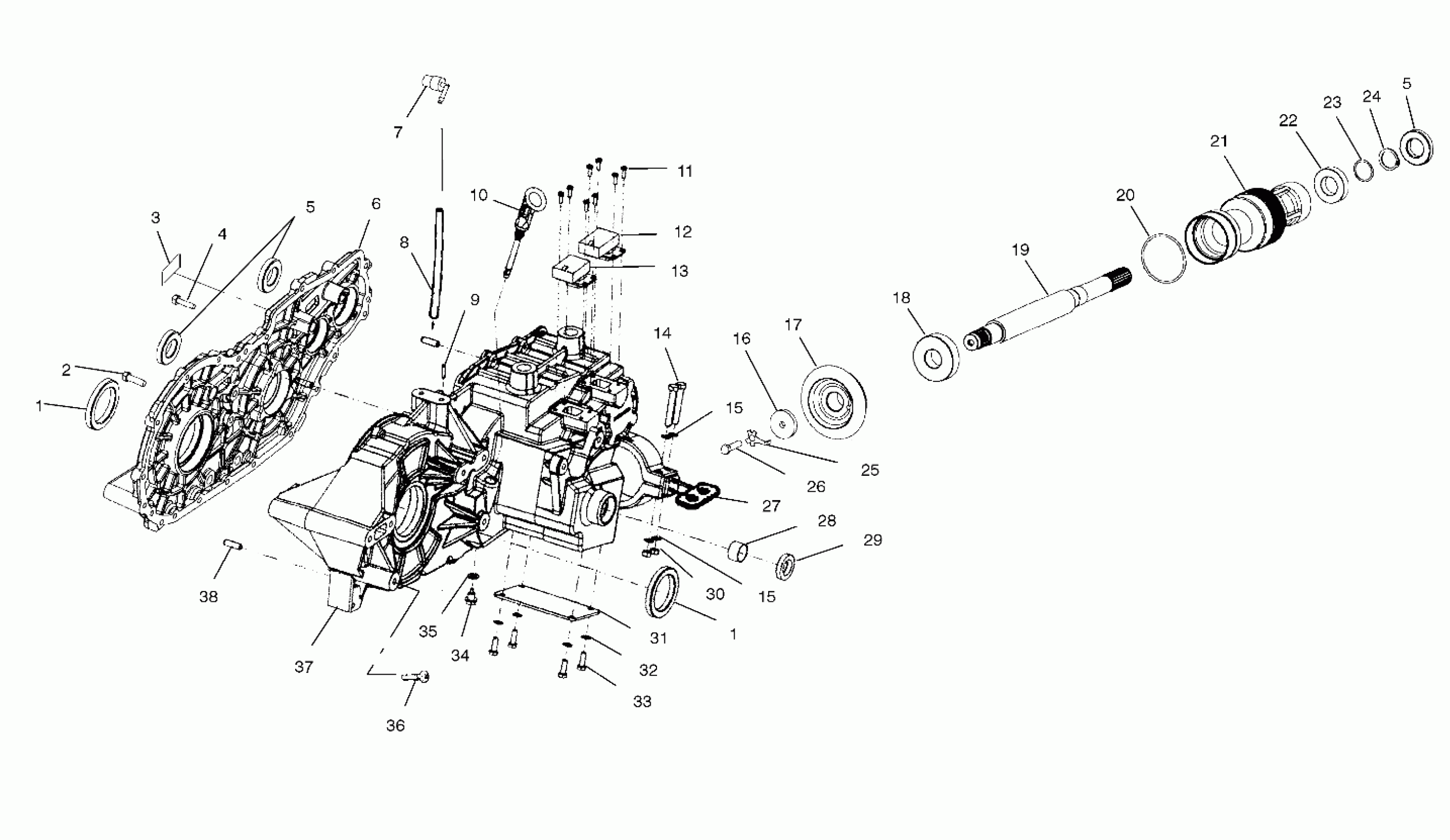

Polaris SPORTSMAN 500 ALL OPTIONS - A02CH50 GEARCASE (Cases and Snorkel) - A02CH50 ALL OPTIONS (4967436743C14) Diagram
#
Description
Price
-
Asm., Gearcase (See Gearcase -Internal Components Pg. D2 for Details)
----
Unavailable
3
Decal, Switch
3233636
Unavailable
6
Gearcase, LH
3233778
Unavailable
8
LINE, FUEL
8360009-600
Unavailable
9
Vent, Tube
3233037
Unavailable
10
Dipstick
3233475
Unavailable
12
Switch, 2 Position
3233617
Unavailable
15
Washer (See Gearcase - Internal Components Pg. D2, Ref. 2)
----
Unavailable
15
Washer (See Gearcase - Internal Components Pg. D2, Ref. 2)
----
Unavailable
17
Gear, 31T, Snorkel
3233476
Unavailable
18
Bearing, Ball (See Gearcase -Internal Components Pg. D2, Ref. 29)
----
Unavailable
19
Shaft, Drive, Snorkel
3233446
Unavailable
20
O-Ring
3233302
Unavailable
21
Tube, Snorkel
3233750
Unavailable
23
Spacer (1.180x.995x.008) NOTE: Ref. 23 indicates choices, may also be used in combinations.
3233357
$24.99
23
Spacer (1.180x.995x.040) (1.180x.995x.040)
3233355
Unavailable
23
Spacer (1.180x.995x.005) (1.180x.995x.005)
3233356
Unavailable
27
Spacer, Snorkel
3233779
Unavailable
29
Seal
3233293
Unavailable
33
Screw
3233296
Unavailable
