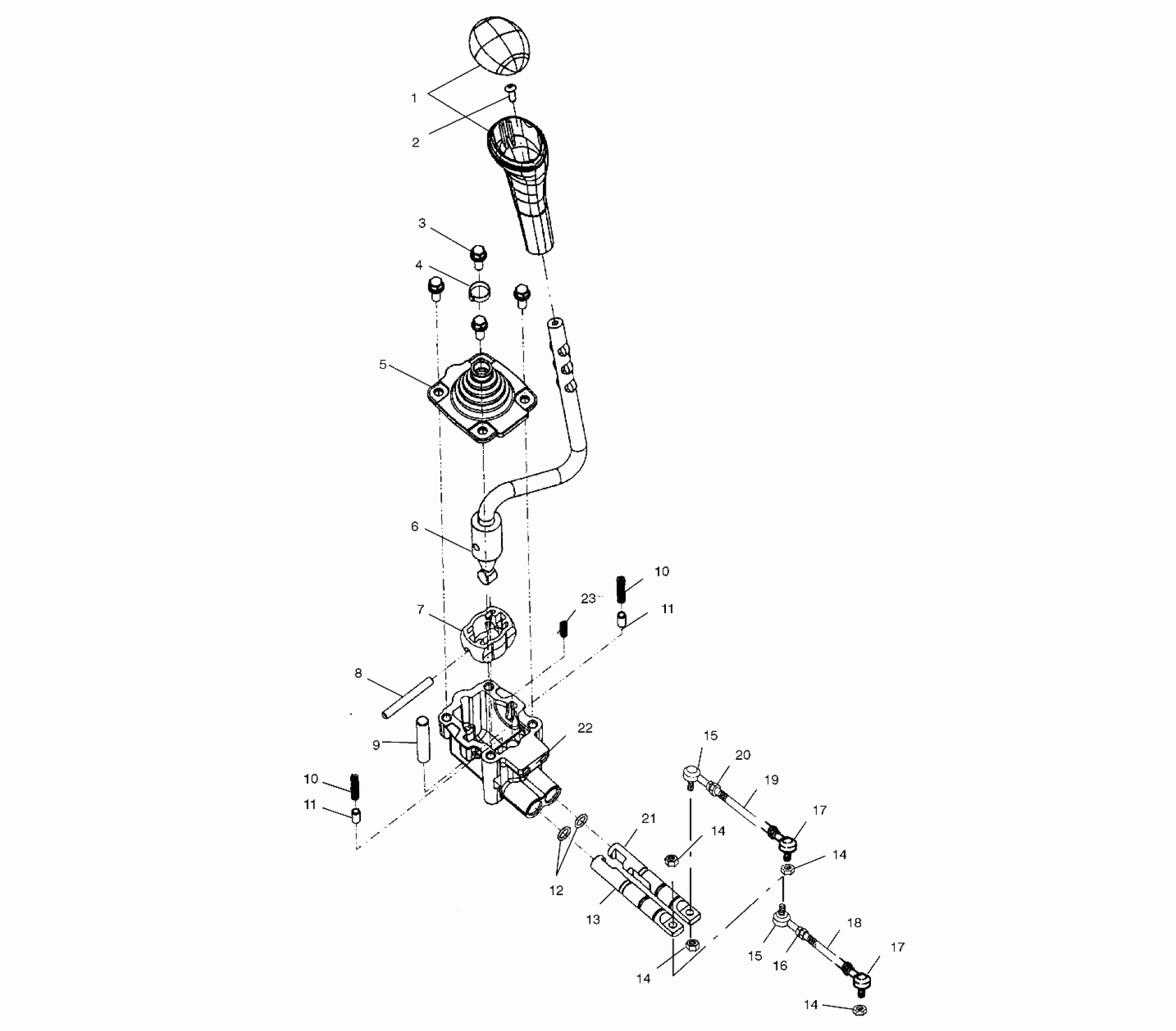

Polaris SPORTSMAN 500 ALL OPTIONS - A02CH50 GEAR SELECTOR - A02CH50 ALL OPTIONS (4967436743C12) Diagram

#

Description
Price

-

Asm., Gear Selector (Incl. 1-13,21-23) (Incl. 1-13,21-23)

1341271

Unavailable

1

Asm., Knob

3233195

Unavailable

2

SCREW

7512024

$4.76

3

Screw

3233649

Unavailable

4

Strap, Wire

3233131

$9.70

5

Cover, Gear Selector Boot

3233648

$37.99

6

Handle, Gear Selector

3233658

Unavailable

7

Sphere, Plastic

3233646

$16.14

8

Pin, Groove

3233754

$9.49

9

Pin, Dowel

3233644

$7.99

10

Spring, Detent

3233642

$16.99

10

Spring, Detent

3233642

$16.99

11

Bullet, Detent

3233060

$69.99

11

Bullet, Detent

3233060

$69.99

12

O-RING

3233076

$6.46

13

Slide, Low

3233639

Unavailable

14

Nut, FLEXLOC

7546707

$1.19

14

Nut, FLEXLOC

7546707

$1.19

14

Nut, FLEXLOC

7546707

$1.19

14

Nut, FLEXLOC

7546707

$1.19

15

Rod End, RH

7061014

$75.99

15

Rod End, RH

7061014

$75.99

16

Nut, RH

7546701

$3.97

17

Rod End, LH

7061013

$75.99

17

Rod End, LH

7061013

$75.99

18

Rod, Shift Linkage, Low-Range

5020824

$68.79

19

Rod, Shift Linkage, Hi-Range

5020823

$68.79

20

Nut, LH

7546702

$1.19

21

Slide, High/Reverse

3233640

Unavailable

22

Body, Gear Selector

3233641

Unavailable

23

Spring, Centering

3233643

$56.99
