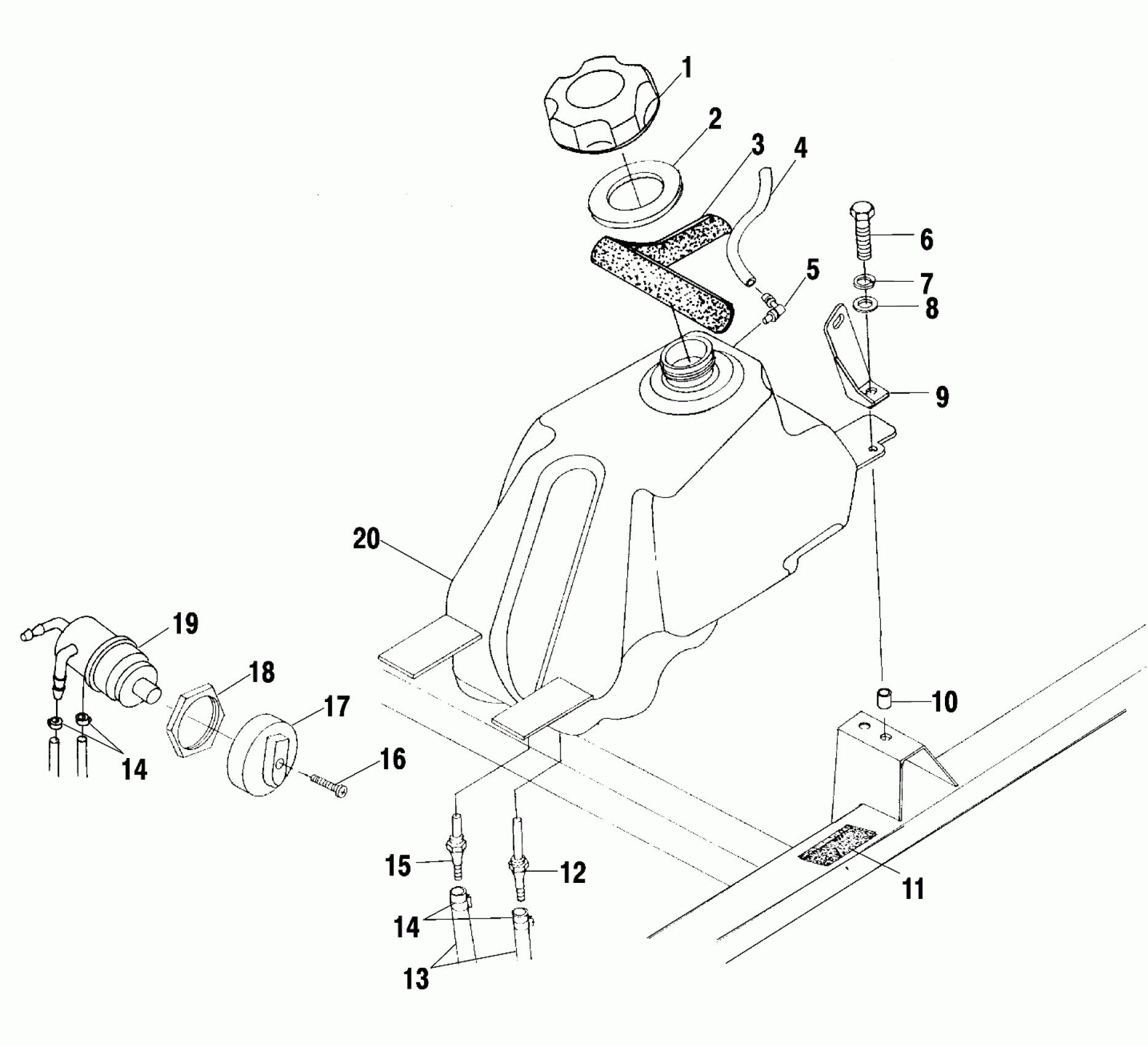

Polaris SPORTSMAN 500 ALL OPTIONS - A02CH50 FUEL TANK - A02CH50 ALL OPTIONS (4967436743A12) Diagram

Cap, Gas Tank

5433687

$20.22

Gasket, Fuel Cap

5812123

$5.65

Seal, Foam

5812210

Unavailable

LINE, FUEL

8360009-600

Unavailable

Vent, Tank

5431053

$24.27

Bolt

7512247

Unavailable

WASHER, SPRING LOCK

7552801

$1.59

Washer, Flat

7558301

$1.19

Bracket, Mounting, Rear, LH (If built after 7/23/01)

5246069-067

Unavailable

Bracket, Mounting, Rear, LH (If built before 7/23/01)

5222154-067

Unavailable

Bracket, Mounting, Rear, RH (If built before 7/23/01)

5222155-067

Unavailable

Bracket, Mounting, Rear, RH (If built after 7/23/01)

5246070-067

$49.99

Nutsert

7547069

$3.97

Pad, Fuel Tank Bracket (FA)

5810317

Unavailable

Fitting, Fuel Outlet, Main

7052150

$27.78

Line, Fuel

8450040-600

Unavailable

HOSE CLAMP, RED

7080003

$1.19

HOSE CLAMP, RED

7080003

$1.19

Fitting, Fuel Outlet, Reserve

7052149

$23.81

Screw

7517505

$1.59

Knob, Fuel Valve

5432559

$11.32

Nut, Fuel Valve

5432733

Unavailable

Valve, 3-Way

7052161

$44.51

Asm., Fuel Tank (Incl. 12,15) (Incl. 12,15)

2520144

Unavailable
