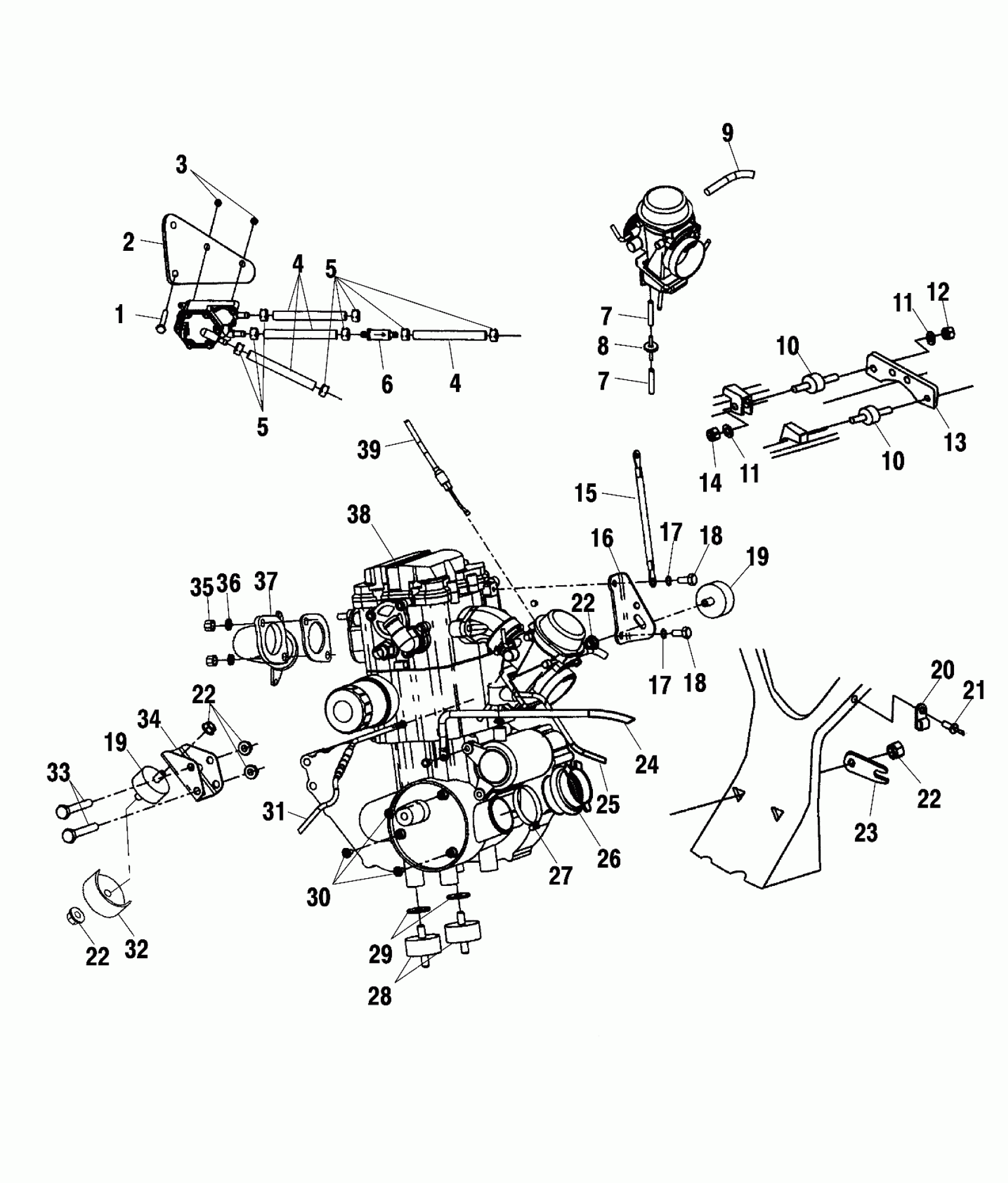

Polaris SPORTSMAN 500 ALL OPTIONS - A02CH50 ENGINE MOUNTING - A02CH50 ALL OPTIONS (4967436743A13) Diagram

#

Description
Price

1

Screw

7517756

$1.49

2

Strap, Fuel Pump

5243829

Unavailable

3

NUT-M5X.8,HX NYL-Y

7546601

$1.49

4

Line, Fuel

8450040-600

Unavailable

4

Line, Fuel

8450040-600

Unavailable

5

HOSE CLAMP, RED

7080003

$1.49

5

HOSE CLAMP, RED

7080003

$1.49

6

FILTER

2530009

$5.65

7

LINE, FUEL

8360009-600

Unavailable

7

LINE, FUEL

8360009-600

Unavailable

8

VALVE, CHECK

7051011

Unavailable

9

Line, Fuel

8450003-1525

Unavailable

10

Mount, Rubber

3110071

$27.99

10

Mount, Rubber

3110071

$27.99

11

Washer, Split Lock

7552605

$5.27

11

Washer, Split Lock

7552605

$5.27

12

NUT

7542105

$3.99

13

Strap, Carburetor Mount

5245055

Unavailable

14

Nutsert

7547069

$3.99

15

Cable, Ground, Engine

4010132

Unavailable

16

Mount, Engine, Top

5241453

$7.99

17

WASHER, SPRING LOCK

7552901

$1.49

17

WASHER, SPRING LOCK

7552901

$1.49

18

BOLT

7512315

$4.79

18

BOLT

7512315

$4.79

19

Mount, Rubber, Top

3110044

Unavailable

19

Mount, Rubber, Top

3110044

Unavailable

20

Clamp, Nylon

7080539

$4.79

21

Rivet

7621462

$1.49

22

NUT, FLANGE LOCK

7547108

$4.79

22

NUT, FLANGE LOCK

7547108

$4.79

22

NUT, FLANGE LOCK

7547108

$4.79

22

NUT, FLANGE LOCK

7547108

$4.79

23

Strap, Frame Support

5224658-067

Unavailable

24

Choke, Black, Battery/Engine

4010095

Unavailable

25

Cable, Solenoid/Starter

4010093

$47.99

26

Boot, Clutch Intake

5410421

$11.19

27

Clamp, Narrow Band

7080511

$4.79

28

Mount, Rubber, Front

3110046

Unavailable

29

Washer

7555815

$3.99

30

Screw and Washer

3084205

$3.99

31

Cable, Choke

7081008

$79.99

32

BRACKET, TORQUE STOP

5245043

$15.83

33

SCREW

7515417

$4.79

34

Mount, Engine, Front

5241150-067

Unavailable

35

Nut

3080285

Unavailable

36

Washer, Lock

3080530

$3.19

37

Manifold

1261043-029

Unavailable

38

Engine, Short Block (EH50PLE013) NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required f

3085822

Unavailable

39

Cable, Throttle

7080967

$55.99
