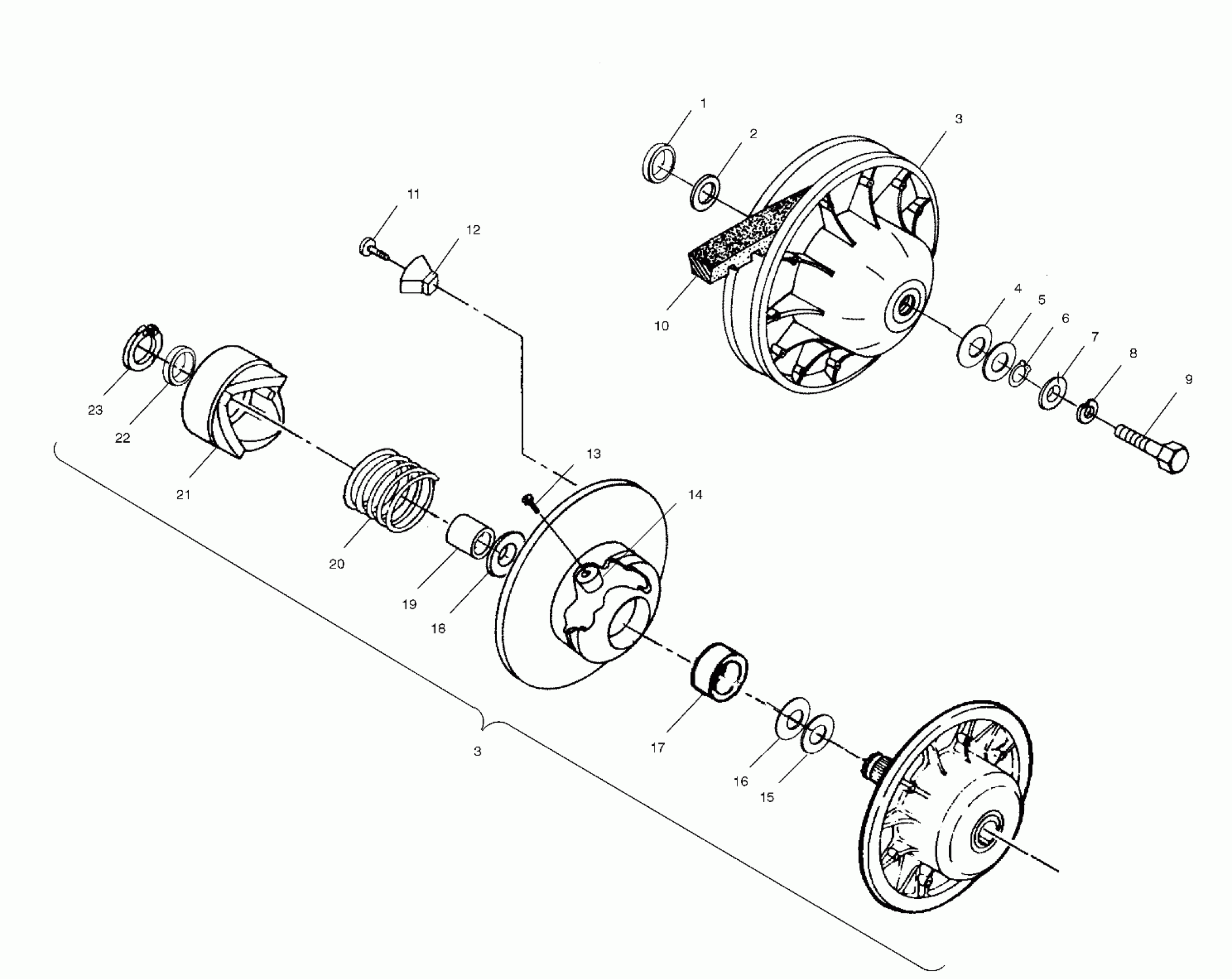

Polaris SPORTSMAN 500 ALL OPTIONS - A02CH50 DRIVEN CLUTCH - A02CH50 ALL OPTIONS (4967436743C06) Diagram

#

Description
Price

1

Spacer, Driven

5010409

Unavailable

2

BUSHING

7556120

Unavailable

3

Asm., Driven Clutch, Braking (Incl. 11-19,22,23)

1322184

$739.99

3

Asm., Driven Clutch (Incl. 11-19,22,23)(EB)

1322182

$614.99

3

Asm., Driven Clutch, Braking (Incl. 11-19,22,23)

1322184

$739.99

3

Asm., Driven Clutch (Incl. 11-19,22,23)(EB)

1322182

$614.99

4

Washer (If built after 3/20/01)

7556203

Unavailable

4

Washer (If built before 3/20/01)

7556013

Unavailable

5

Bushing

7556010

Unavailable

6

Ring, Retaining

7710461

Unavailable

7

Washer, Domed

5220646

$2.39

8

WASHER, SPRING LOCK

7552901

$1.49

9

SCR-HH-5/16-18X4 GR5 ZY3

7515327

$5.59

10

BELT, DRIVE

3211077

$63.99

10

Belt, Drive (EB)

3211069

$67.99

11

Bolt (EB)

7511854

$1.49

12

Button, Ramp (EB)

5430766

Unavailable

13

Screw

7517323

$13.59

14

Roller, Taper

1321977

$31.99

15

Washer (.020)(EB)

7555898

Unavailable

15

Washer (.025)(EB)

7556076

Unavailable

16

Washer (.030)(EB)

7556804

Unavailable

17

Bearing (EB)

3576504

$23.99

17

Bearing

3585710

$19.99

18

WASHER-2.06X2.62X.105-Y (Not EB)

5211115

$3.99

19

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

20

Spring (EB)

7041198

$52.60

20

Spring

7041635

$47.99

21

Ramp, Stationary (EB)

5132344

$79.99

21

Ramp, Stationary

5131674

$83.99

22

Spacer (EB)

5210752

$1.59

23

Ring, Retaining (EB)

7710448

$3.19
