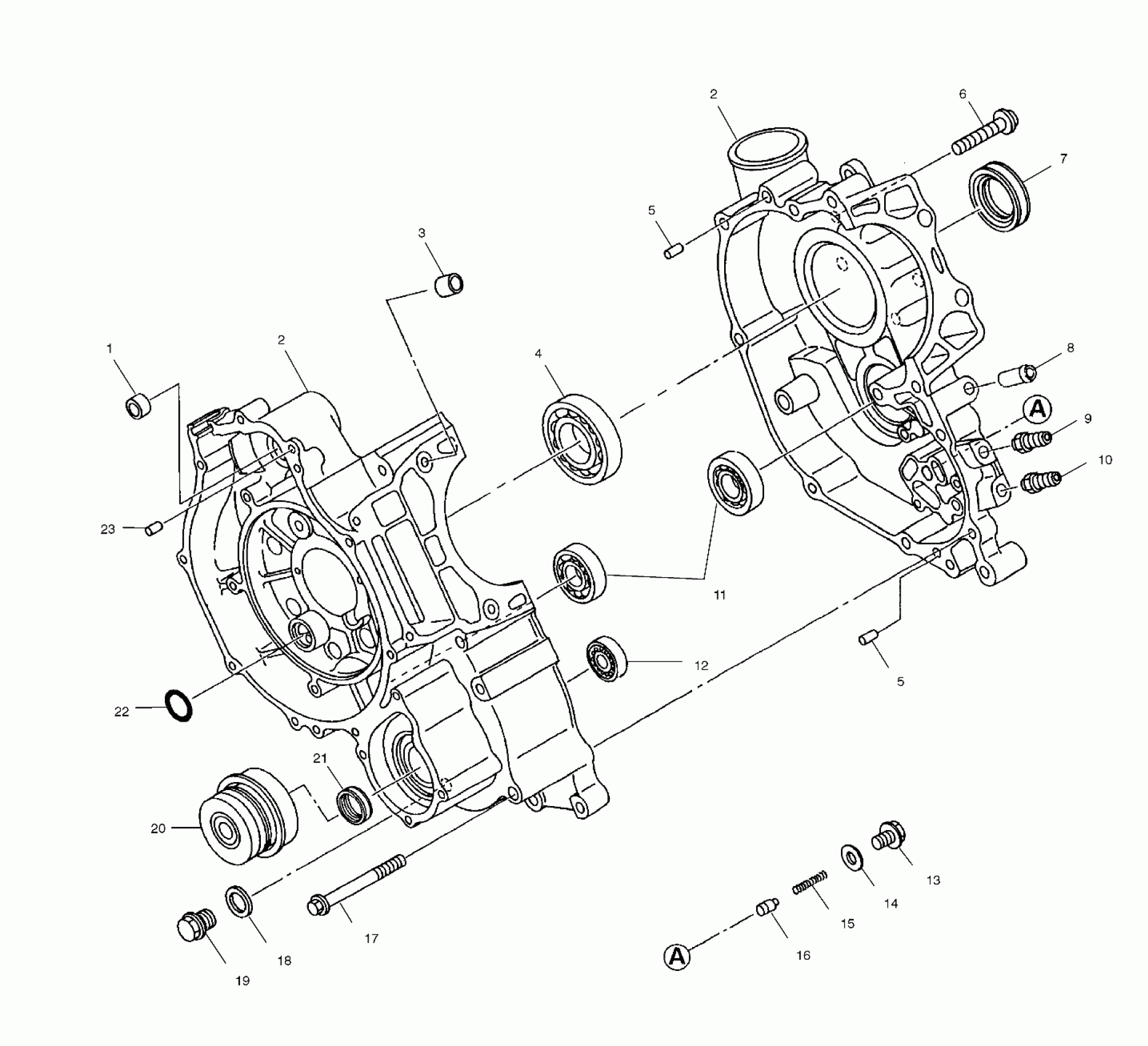

Polaris SPORTSMAN 500 ALL OPTIONS - A02CH50 CRANKCASE - A02CH50 ALL OPTIONS (4967436743D03) Diagram

#

Description
Price

1

BUSHING, STARTER

3083669

Unavailable

2

Asm., Crankcase (Incl. 1,4,5,7,10,11,16,19,20,22) (Incl. 1,4,5,7,10,11,16,19,20,22)

3085808

$1,199.99

2

Asm., Crankcase (Incl. 1,4,5,7,10,11,16,19,20,22) (Incl. 1,4,5,7,10,11,16,19,20,22)

3085808

$1,199.99

3

Pin, Straight

3084838

Unavailable

4

BEARING, BALL

3080676

Unavailable

5

Pin, Dowel

3084840

$6.46

5

Pin, Dowel

3084840

$6.46

6

Screw and Washer

3084205

$3.97

7

SEAL, OIL

3084839

$28.32

8

PIPE, AIR BREATHER

3085525

Unavailable

9

Fitting, Oil Inlet

3087154

Unavailable

10

Union

3084842

$32.37

11

BEARING, BALL

3084834

Unavailable

12

BEARING, BALL

3084835

$31.75

13

PLUG

3084845

Unavailable

14

GASKET, ALUMINUM

3084846

$5.65

15

Spring, Valve, One Way

3084844

$4.84

16

VALVE, ONE WAY

3086810

Unavailable

17

BOLT, FLANGE

3084841

$3.17

18

GASKET

3082956

$4.84

19

PLUG

3083453

Unavailable

20

SEAL, MECHANICAL

3084837

$68.79

21

SEAL, OIL

3084836

Unavailable

22

O-RING

3084847

$6.46

23

Pin, Dowel

3080103

$7.14
