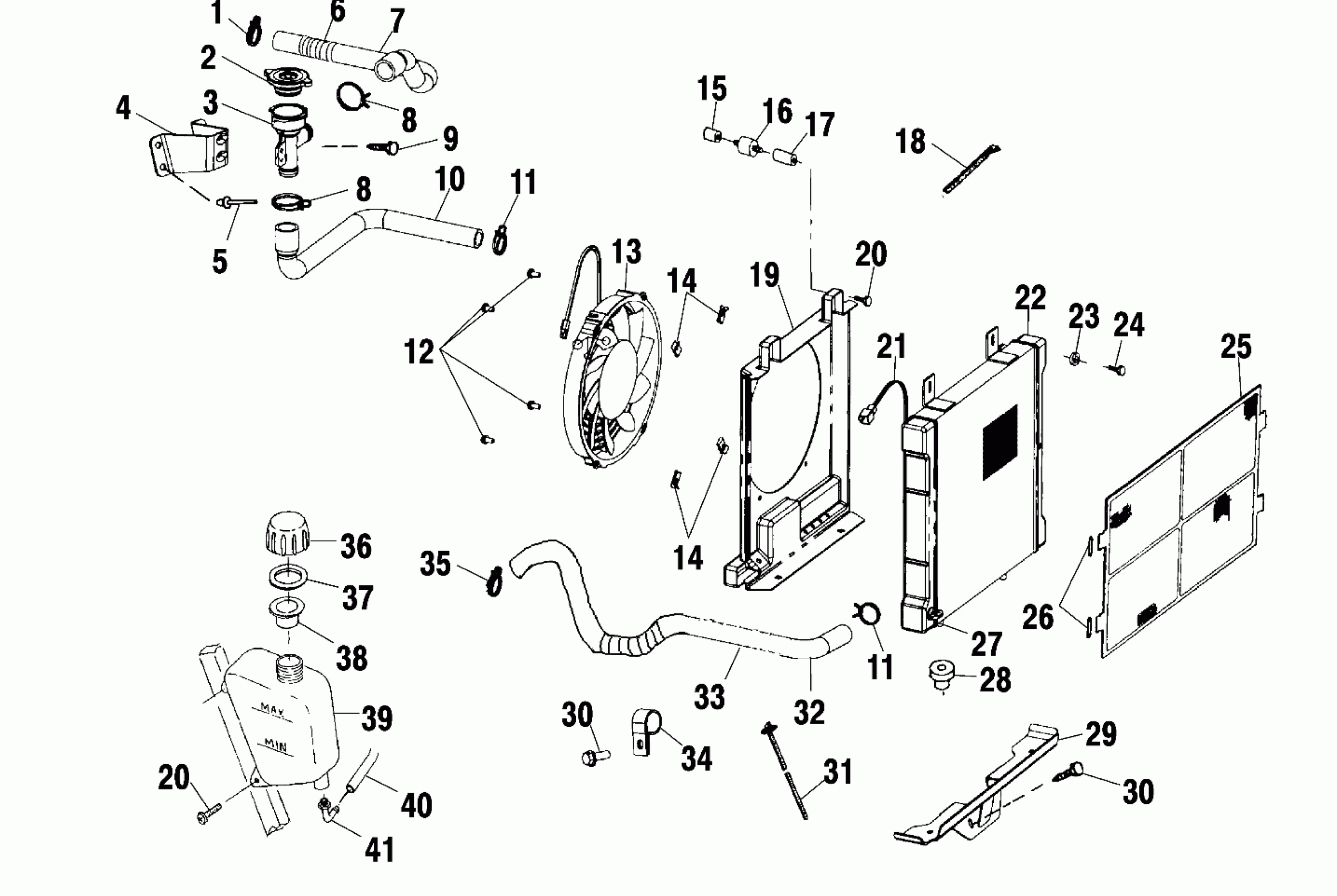

Polaris SPORTSMAN 500 ALL OPTIONS - A02CH50 COOLING SYSTEM - A02CH50 ALL OPTIONS (4967436743A10) Diagram

#

Description
Price

1

CLAMP-HOSE

7080807

$9.59

2

Cap, Pressure

1240044

Unavailable

3

Filler, Coolant

5433364

$43.56

4

Bracket, Filler, Coolant

5243505

Unavailable

5

RIVET-3/16-.090-.290

7661637

$1.49

6

Flexguard

5433948

Unavailable

7

Hose, Engine, Upper

5411783

$63.99

8

Clamp, 1"

7080827

Unavailable

8

Clamp, 1"

7080827

Unavailable

9

SCREW

7512232

$1.49

10

Hose, Filler Neck

5411632

Unavailable

11

Clamp

7080826

$4.79

11

Clamp

7080826

$4.79

12

Screw

7517659

$3.99

13

Asm., Fan and Motor

2410123

$180.79

14

U-Clip

7670111

Unavailable

14

U-Clip

7670111

Unavailable

15

Nutsert

7547069

$3.99

16

Mount, Rubber

3110032

$7.99

17

Spacer

5020572

$8.79

18

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

19

Shroud, Fan

5433059

Unavailable

20

Screw

7512084

$1.49

20

Screw

7512084

$1.49

21

Sensor, Thermal

4010161

$103.99

22

Radiator

1240045

Unavailable

23

WASHER, SPRING LOCK

7552801

$1.59

24

Screw

7512240

$3.99

25

Cover, Radiator

5433317

$35.35

26

O-Ring

5410607

$5.99

27

Valve, Radiator/Coller Drain

7052296

Unavailable

28

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

29

Bracket, Radiator, Lower

5243503-067

$154.99

30

SCREW

7517386

$1.49

30

SCREW

7517386

$1.49

31

Tie, Panel

7080890

$5.75

32

Hose, Engine, Lower

5411782

Unavailable

33

Guard, Hose

5521550

Unavailable

34

CLAMP-HOSE,1.312 VINYL COATED

7080851

Unavailable

35

CLAMP, HOSE

7080696

$5.59

36

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

37

GASKET-OVERFLOW CAP

5810279

$2.41

38

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

39

Tank, Surge

5431673

Unavailable

40

Line, Fuel

8450003-1525

$84.99

41

Fitting, Barbed, 90 Degree

7052065

$7.19
