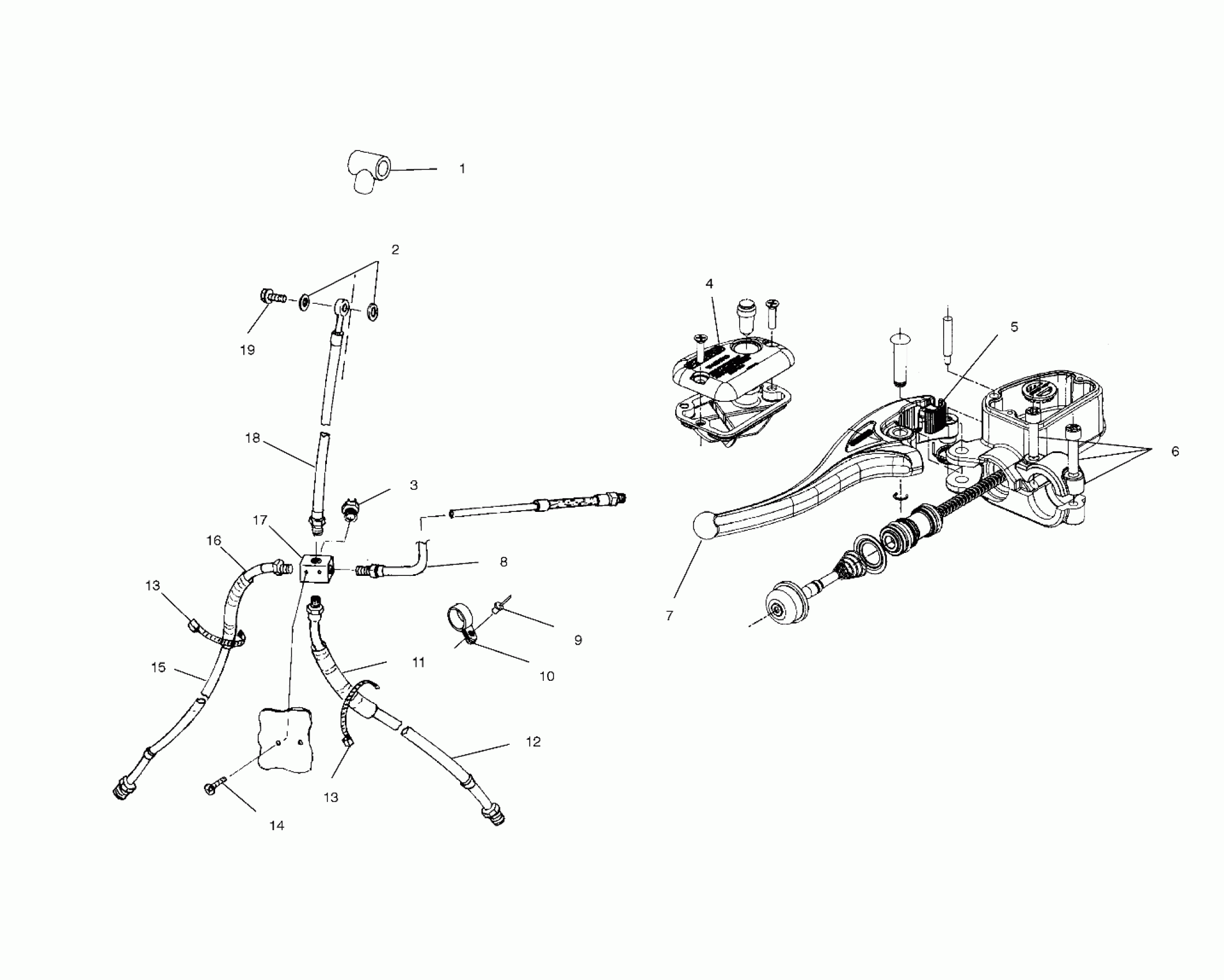

Polaris SPORTSMAN 500 ALL OPTIONS - A02CH50 CONTROLS - MASTER CYLINDER/BRAKE LINE - A02CH50 ALL OPTIONS (4967436743B08) Diagram

#

Description
Price

-

Asm., Master Cylinder

2010196

Unavailable

1

Boot, Brake Line, Rubber

5411297

$2.07

2

Seal

5410988

$4.84

3

SWITCH

4110164

Unavailable

4

Kit, Master Cylinder Cap (Incl. Cap, Screws, Sight, Gasket)

2201834

Unavailable

5

Kit, Master Cylinder Park Brake Lever (Incl. Lever, Spring)

2201836

$43.99

6

Kit, Master Cylinder Clamp (Incl. Clamp, Screws)

2201833

$47.99

7

Kit, Master Cylinder Lever (Incl. Pin, Lever, Clip)

2201835

$59.99

8

Line, Brake, Stainless Steel

1910478

Unavailable

9

Rivet

7621462

$1.49

10

Clamp, Nylon

7080539

$4.79

11

Conduit

8360031-30

Unavailable

12

Line, Brake, Left Front

1910474

$87.99

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

SCREW

7512024

$4.79

15

Tubing, Convoluted

8360011-38

Unavailable

16

Line, Brake, Right Front

1910475

$89.03

17

FITTING, CROSS

7052292

$39.99

18

Line, Brake, Stainless Steel

1910470

$87.99

19

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.99
