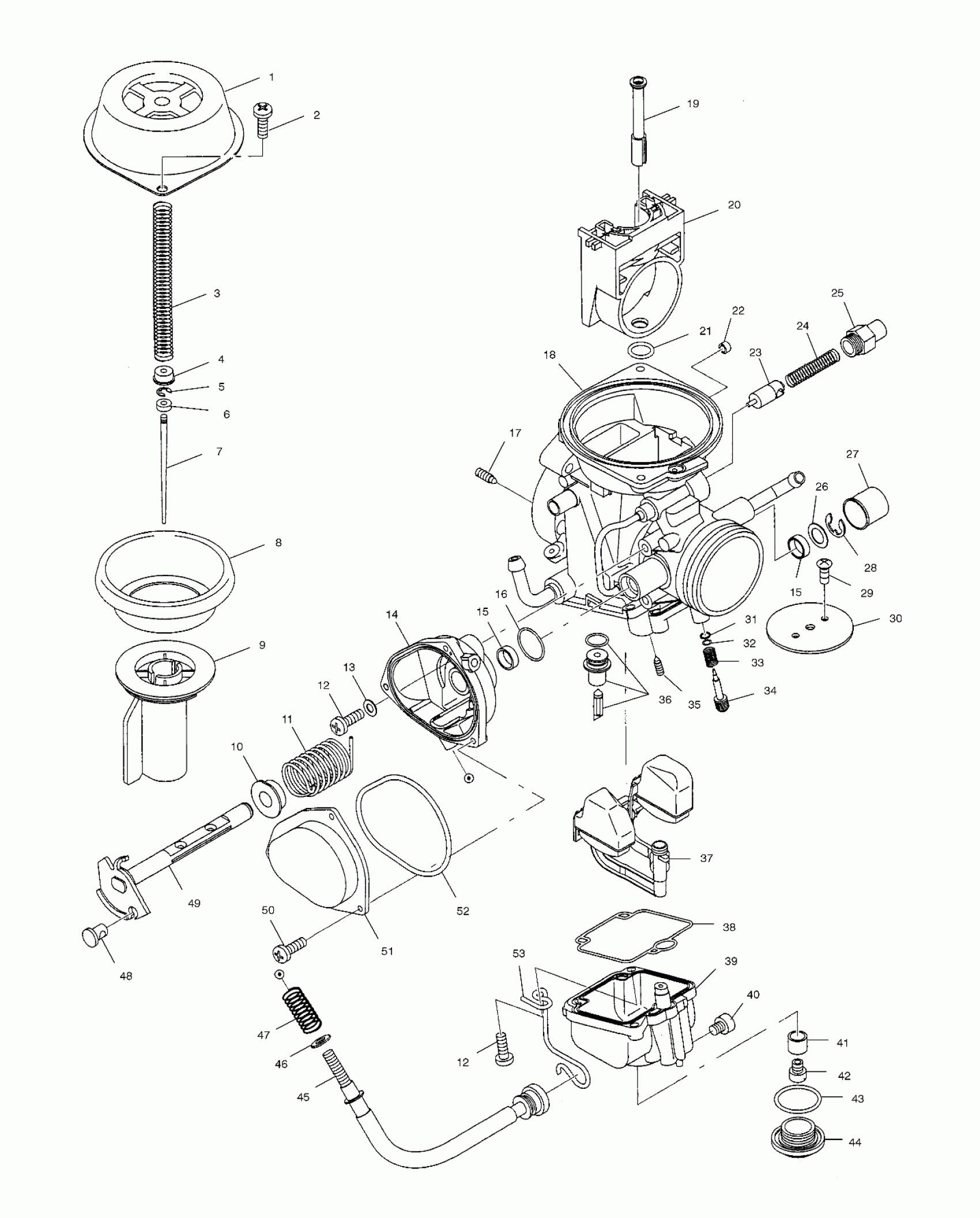

Polaris SPORTSMAN 500 ALL OPTIONS - A02CH50 CARBURETOR - A02CH50 ALL OPTIONS (4967436743D09) Diagram

#

Description
Price

1

COVER, DIAPHRAGM

3130914

$48.56

2

Screw

3130821

$7.14

3

SPRING

3130911

$11.32

4

RING

3130913

$5.65

5

E-RING

3130908

$6.46

6

RING

3130915

$5.65

7

Needle, Jet

3131292

$44.51

8

DIAPHRAGM

3130910

$68.79

9

VALVE, PISTON

3130912

$71.10

10

RING

3130932

$1.99

11

SPRING

3130927

$6.99

12

SCREW

3130933

$2.38

12

SCREW

3130933

$2.38

13

WASHER

3130926

$3.97

14

CASE

3130925

$69.99

15

SEAL

3130515

$12.13

15

SEAL

3130515

$12.13

16

O-RING

3130928

$6.46

17

JET, AIR

3130619

$8.08

18

Asm., Carburetor (Incl. 1-53)

3131289

$674.49

19

JET, NEEDLE

3131305

$48.56

20

Block, Jet

3131290

$47.49

21

O-RING

3130916

$4.84

22

Cap

3131208

Unavailable

23

Plunger

3130593

$40.46

24

SPRING

3130538

$5.65

25

Holder, Guide

3130199

$28.32

26

PACKING

----

Unavailable

27

CAP

3130519

$10.51

28

E-RING

3130518

$1.60

29

Screw

3130906

$3.97

30

Valve, Throttle

3130907

$54.99

31

O-Ring

3130522

$5.65

32

Washer

3130523

$2.38

33

Spring

3130525

$5.65

34

ADJUSTER

3130934

$12.99

35

Jet, Pilot (#40)

3131306

$28.32

36

Valve, Needle

3130922

$72.84

37

Float

3131293

$75.54

38

SEAL

3130917

$7.27

39

Body, Float

3130923

$75.54

40

SCREW

3130935

$6.64

41

RING

3130919

Unavailable

42

Jet, Main (#152.5)

3131304

$8.89

43

O-RING

3130239

Unavailable

44

Screw, Guide

3131291

$23.81

45

Adjuster, Cable

3131295

Unavailable

46

WASHER

3131296

$9.52

47

Spring

3130010

$9.70

48

GUIDE, CABLE

3130543

$32.37

49

Shaft, Throttle

3130931

$64.75

50

SCREW

3130924

$1.59

51

COVER

3130930

$36.41

52

O-Ring

3131294

$14.24

53

CLIP

3131242

$33.24
