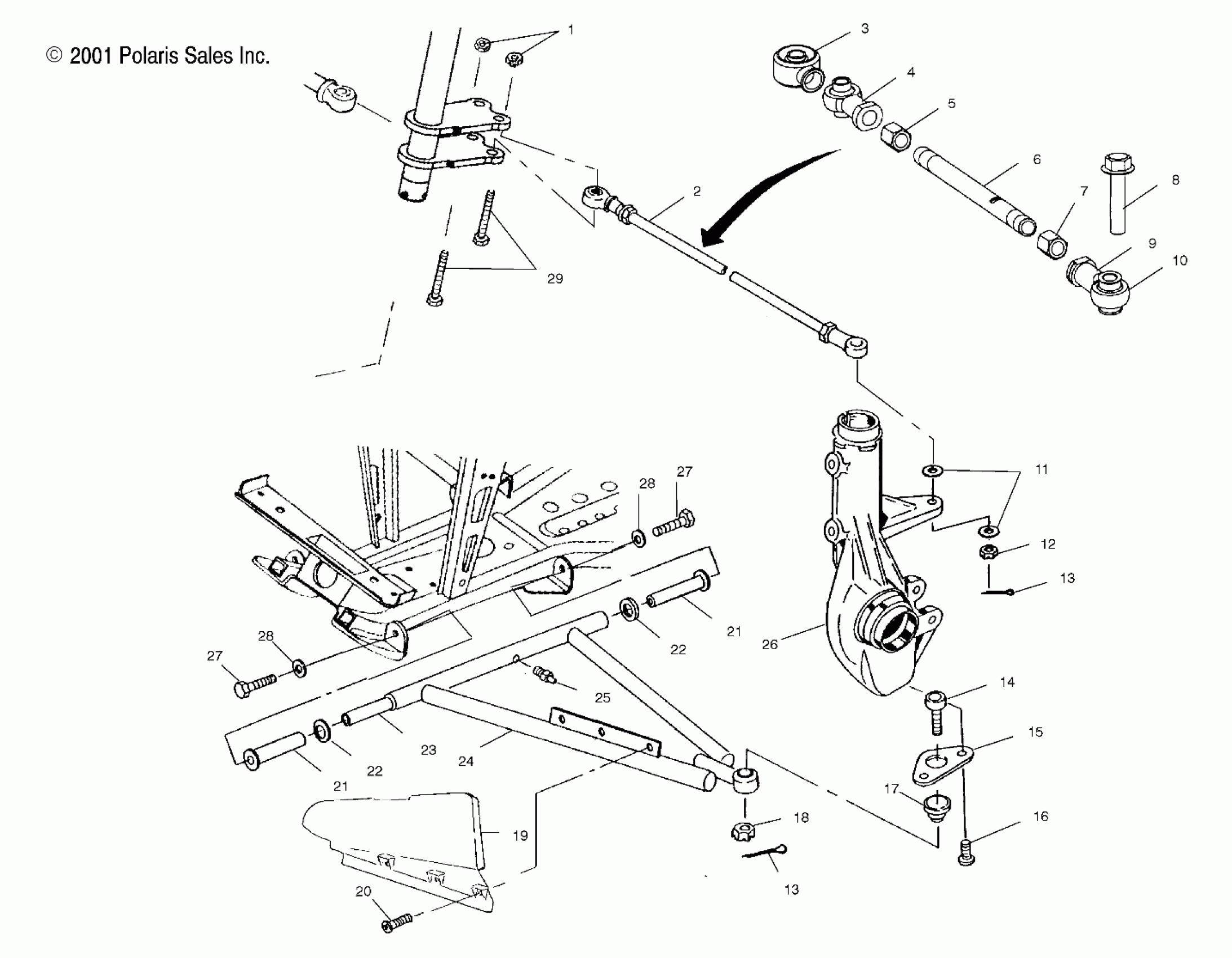

Polaris SPORTSMAN 500 ALL OPTIONS - A02CH50 A-ARM/STRUT MOUNTING - A02CH50 ALL OPTIONS (4967436743C04) Diagram

#

Description
Price

1

Nut, FLEXLOC

7542403

$3.99

2

Asm., Tie Rod

1820805

Unavailable

3

Boot, Seal, Rod End

5411291

Unavailable

4

Rod End, RH

7061034

$54.04

5

Nut, Jam

7542711

$2.39

6

Tie Rod

5020926

$39.99

7

Nut, Jam, LH

7547028

$2.39

8

Bolt

7517909

$5.59

9

Rod End, LH

7061054

Unavailable

10

Boot, Seal, Rod End

5411920

Unavailable

11

Washer, Flat

7556099

$1.59

12

Nut

7547177

$2.39

13

Pin, Cotter

7661203

$1.49

13

Pin, Cotter

7661203

$1.49

14

Joint, Ball

7080927

$76.89

15

BRACKET-BALL JOINT

5211121

$31.99

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

17

Boot, Rubber

5410548

Unavailable

18

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

19

Shield, CV Joint, LH

5431837

Unavailable

19

Shield, CV Joint, RH

5431838

Unavailable

20

Screw

7512084

$1.49

21

Bushing, A-Arm, Long (AL)

5434551

$5.01

21

Bushing, A-Arm, Long

5433066

$5.01

21

Bushing, A-Arm, Long (AL)

5434551

$5.01

21

Bushing, A-Arm, Long

5433066

$5.01

22

Bushing

5020677

$10.39

22

Bushing

5020677

$10.39

23

Shaft, A-Arm

5020681

Unavailable

24

Kit, A-Frame, LH

2201607

$138.99

24

Kit, A-Frame, RH

2201608

$138.99

25

Fitting, Lubrication

7080433

$1.49

26

Asm., Heavy Hubstrut (See Front Strut Pg. B5, Ref. 16)

-------

Unavailable

27

Screw

7512492

$1.49

27

Screw

7512492

$1.49

28

Washer, Spring Lock

7552603

$1.49

28

Washer, Spring Lock

7552603

$1.49

29

Screw

7515415

$1.49
