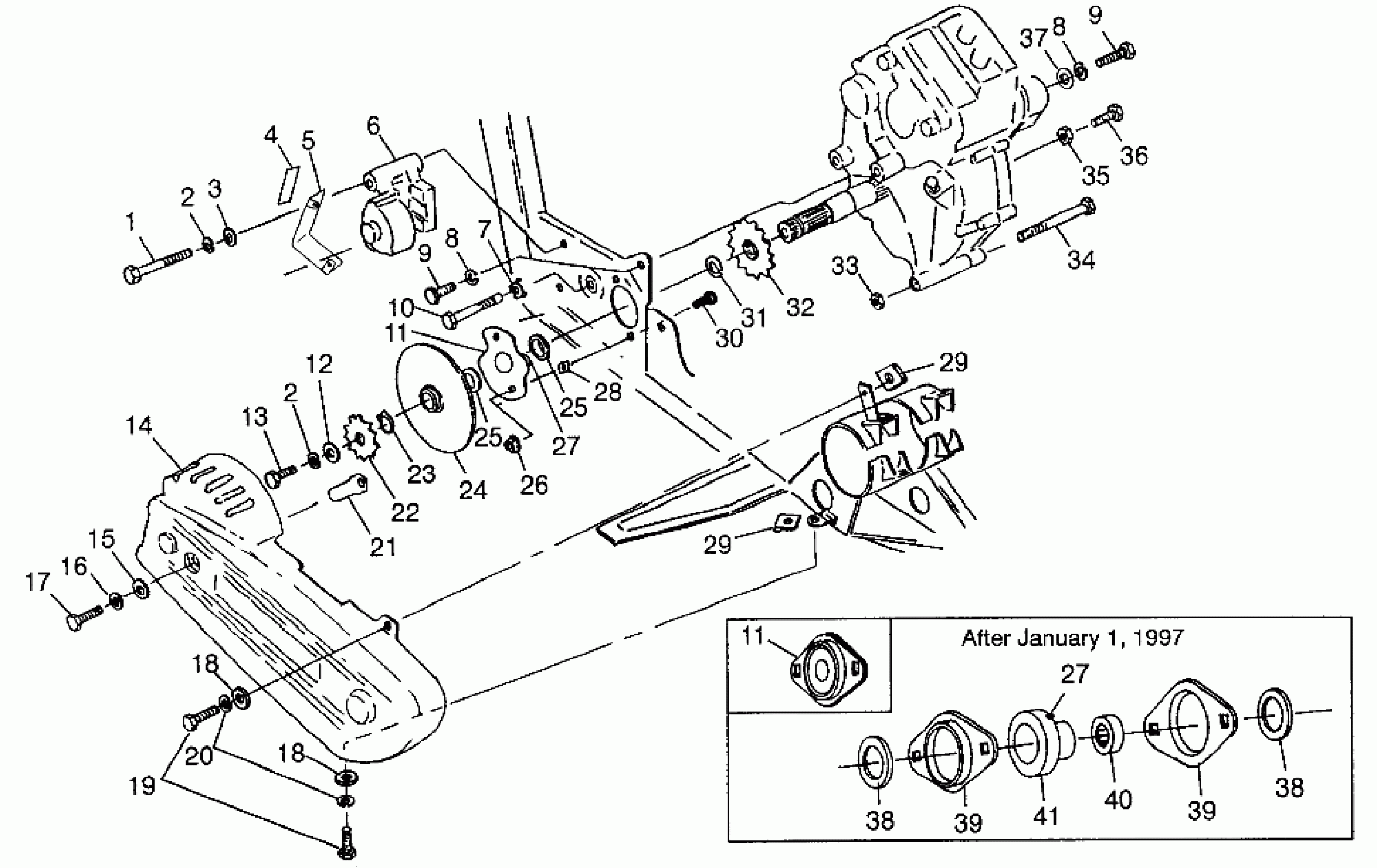

Polaris SPORTSMAN 400L - W97AC38C GEARCASE/BRAKE and CHAIN COVER MOUNTING Sportsman 400L W97AC38C (4939673967C004) Diagram

#

Description
Price

1

BOLT(10)

7515345

$5.59

2

LOCK WASHER(10)

7552901

$1.49

2

LOCK WASHER(10)

7552901

$1.49

3

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

4

DECAL,BRAKE SHIELD

7075339

Unavailable

5

SHIELD,R.CALIPER,BLK.

5241018-067

Unavailable

6

CALIPER ASM,R.BRAKE

1910224

Unavailable

7

Plate, Bolt Lock (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

8

WASHER(10)

7552603

$1.49

8

WASHER(10)

7552603

$1.49

9

BOLT(10)

7515522

$3.99

9

BOLT(10)

7515522

$3.99

10

Bolt, Shoulder (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

11

BRG.ASM,O/P SHAFT (Incl. 28) (Before Jan. 1, 1997)

1590237

$84.99

11

SHAFT ASM,O/P,NDL BRG. Substituted by 2201115 (After Jan. 1, 1997)

1590265

Unavailable

11

BRG.ASM,O/P SHAFT (Incl. 28) (Before Jan. 1, 1997)

1590237

$84.99

11

SHAFT ASM,O/P,NDL BRG. Substituted by 2201115 (After Jan. 1, 1997)

1590265

Unavailable

12

WASHER FLAT(10)

7555701

$3.99

13

BOLT(10)

7515321

$1.49

14

GUARD,CHAIN,CTR.

5431717

Unavailable

15

WASHER(10) Substituted by 7558402

7555770

Unavailable

16

WASHER(10)

7552606

$4.79

17

BOLT(10)

7515346

$5.59

18

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

18

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

19

BOLT(10)

7512269

Unavailable

20

WASHER(10)

7552605

$5.27

21

SPACER, CHAIN GUARD

5333244

Unavailable

22

SPKT, 11T

3221058

$74.99

23

RING,RETAINING(10)

7710433

$4.79

24

DISC ASM,BRAKE

1910177

Unavailable

25

SEAL, BRAKE (Order Only w/PN 1590237)

3610026

$7.99

25

SEAL, BRAKE (Order Only w/PN 1590237)

3610026

$7.99

26

NUT,FLANGE LOCK(10)

7542449

$3.99

27

FITTING,LUBE.W/BALL CK.(10) (Only w/PN 1590237)

7080306

$3.19

27

ZERK,FITTING,THREADED(10) (Only w/PN 1590265)

7080433

$1.49

27

FITTING,LUBE.W/BALL CK.(10) (Only w/PN 1590237)

7080306

$3.19

27

ZERK,FITTING,THREADED(10) (Only w/PN 1590265)

7080433

$1.49

28

SPACER,(10) (.020)

5210764

Unavailable

28

SHIM,.010,GEARCASE (.010)

5211065

Unavailable

28

SHIM,(.030) (.030) Note: Use shims only with Output Shaft Bearing PN 1590237, Ref. 11

5211517

Unavailable

29

NUT, SPEED(10)

7670060

$3.99

29

NUT, SPEED(10)

7670060

$3.99

30

BOLT,CARRIAGE(10)

7515484

Unavailable

31

RING,SNAP(10)

7710434

$3.99

32

SPKT,13T,SPLINED

3221041

$43.99

33

NUT LOCK(10)

7542403

$3.99

34

BOLT(10)

7515472

$2.39

35

NUT(10)

7542404

$1.59

36

BOLT(10)

7515485

$3.03

37

WASHER Substituted by 7555720

7555784

Unavailable

38

SEAL,BRAKE

3610062

$9.70

38

SEAL,BRAKE

3610062

$9.70

39

FLANGETTE,O/P SHAFT BRNG.

5242072

Unavailable

39

FLANGETTE,O/P SHAFT BRNG.

5242072

Unavailable

40

BEARING,NEEDLE

3554202

Unavailable

41

HSG,BRNG,O/P SHAFT

5131643

Unavailable
