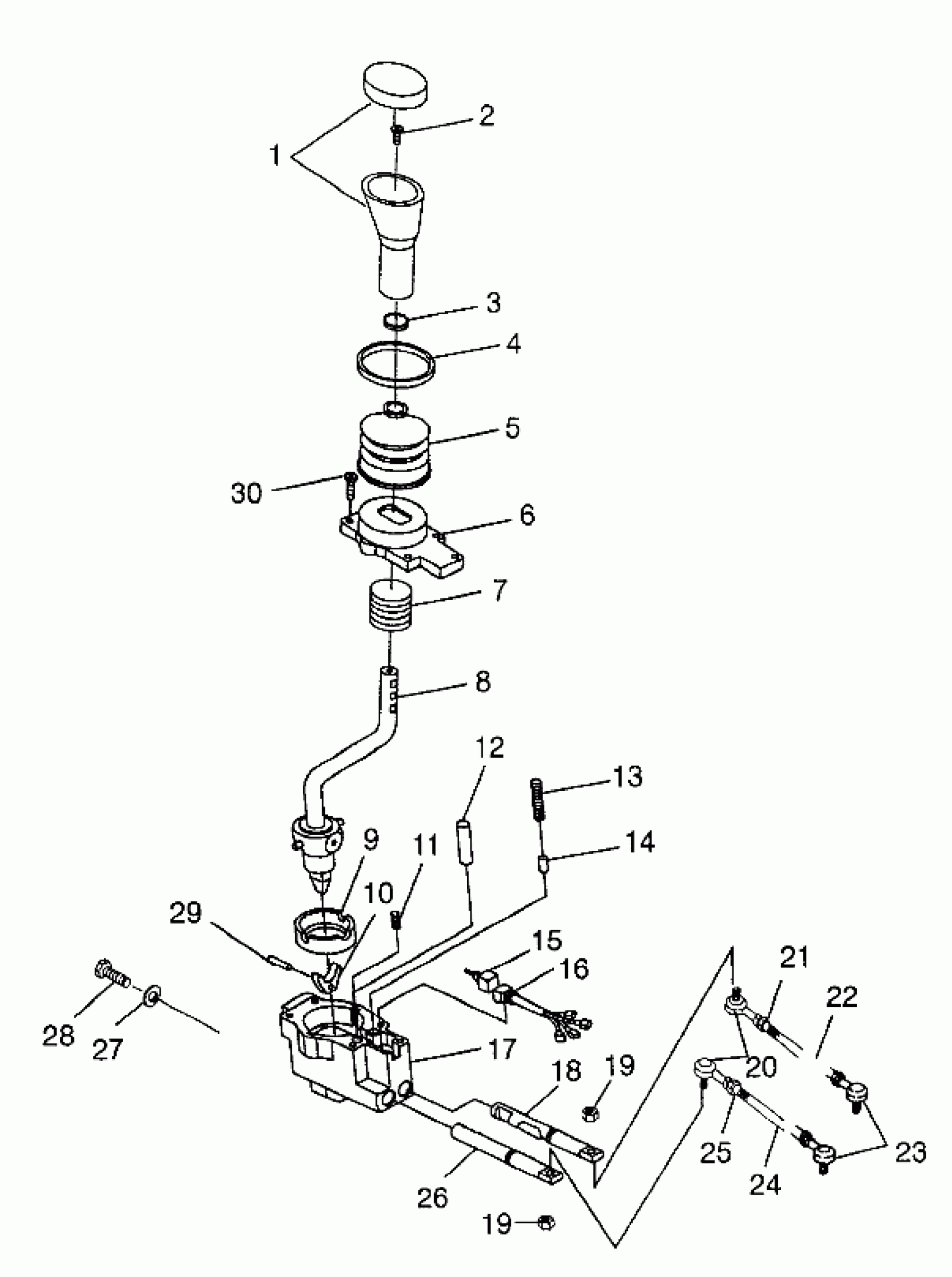

Polaris SPORTSMAN 400L - W97AC38C GEAR SELECTOR Sportsman 400L W97AC38C (4939673967C013) Diagram

#

Description
Price

-

SELECTOR ASM,GEAR,GENII (Incl. 1-18, 26, 29-30)

1341220

Unavailable

1

KNOB ASM,HI/LO/REV. Substituted by 3233195-070

3233195

$49.99

2

SCREW,(10)

7512024

$4.79

3

Strap, Wire

3233131

$9.70

4

CLAMP

3233132

Unavailable

5

BOOT,GEAR SELECTOR

3233368

$74.79

6

COVER,GEAR SELECTOR

3233213

Unavailable

7

SPRING,HOLDING

3233158

Unavailable

8

HANDLE,SUBASM,GS 400

3233458

Unavailable

9

CUP,BEARING

3233063

$15.99

10

INTERLOCK,BUTTERFLY

3233084

Unavailable

11

SPRING,CENTERING

3233083

Unavailable

12

PIN, STOP

3233062

Unavailable

13

SPRING,DETENT

3233069

Unavailable

14

BULLET,DETENT

3233060

$64.99

15

SW,GEARSELECT,W/THRM.JKT.

3233455

Unavailable

16

STRAP, WIRE

3233090

$2.86

17

BODY,GEARSELECT

3233457

Unavailable

18

SLIDE ASM,HIGH/REV

3233217

Unavailable

19

NUT(10) Substituted by 7546703

7546707

Unavailable

19

NUT(10) Substituted by 7546703

7546707

Unavailable

20

ROD END,RH,6MM. (6mm)

7061014

$65.99

21

NUT(10) (6mm)

7546701

$3.99

22

ROD,SHIFTLINK,LOW

5020936

Unavailable

23

ROD END,LH,6MM. (6mm)

7061013

$65.99

24

ROD,SHIFTLINK,HI RANGE Substituted by 5020729

5020690

Unavailable

25

NUT(10) (6mm)

7546702

$1.49

26

SLIDE ASM,LOW

3233218

Unavailable

27

WASHER(10)

7552605

$5.27

28

SCREW(10)

7515181

$2.39

29

PIN,INTERLOCK

3233070

Unavailable

30

SCREW Substituted by 3233498

3233085

Unavailable
