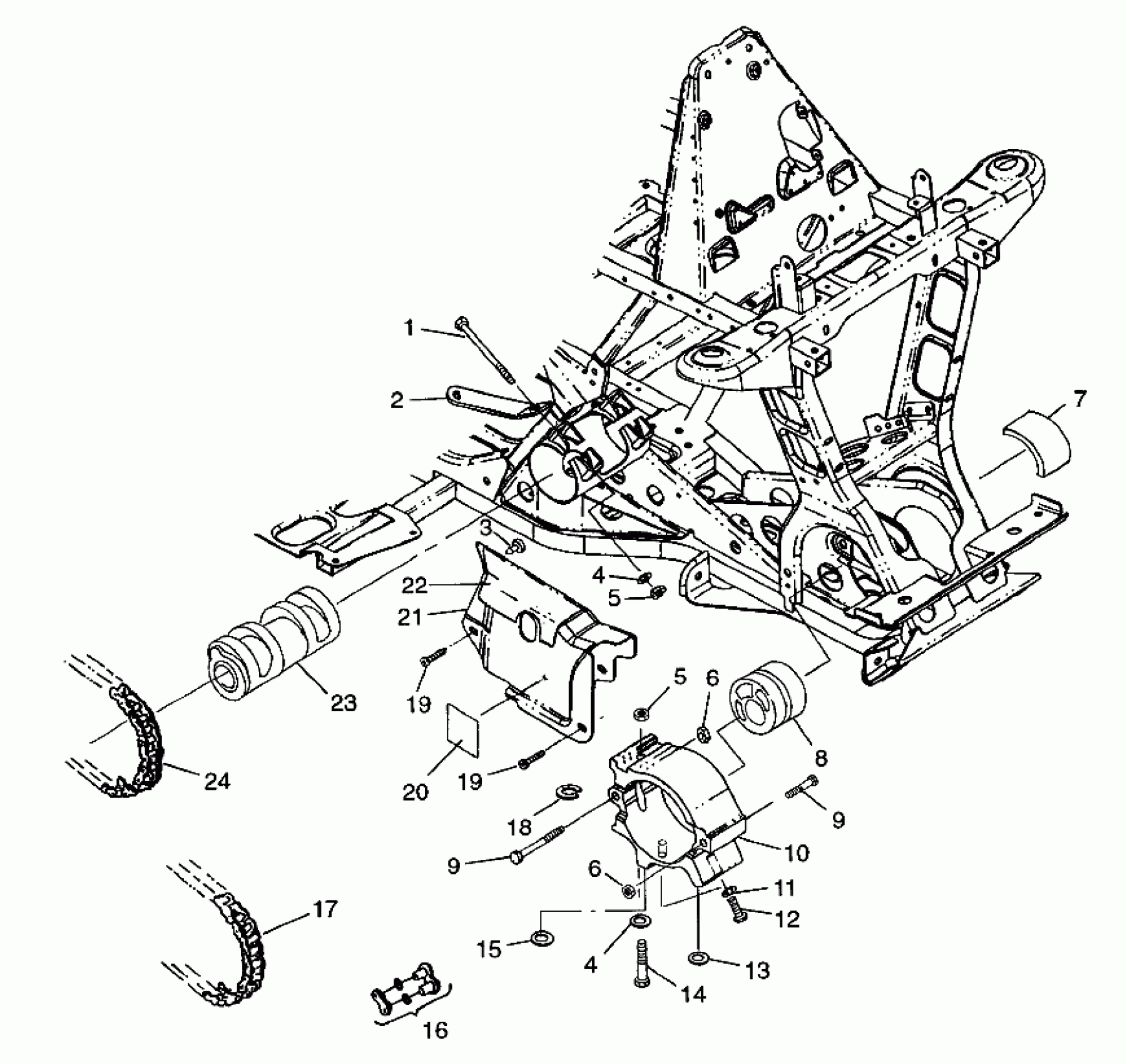

Polaris SPORTSMAN 400L - W97AC38C FRONT DRIVE Sportsman 400L W97AC38C (4939673967B003) Diagram

#

Description
Price

1

BOLT(10)

7512583

Unavailable

2

BRKT,UP.COVER MT.

5222270-067

Unavailable

3

CLIP,X-MAS TREE

7670101

$2.39

4

WASHER(10)

7555883

$3.99

4

WASHER(10)

7555883

$3.99

5

NUT, LOCK,(10)

7542503

$10.39

5

NUT, LOCK,(10)

7542503

$10.39

6

NUT(10)

7542423

$3.99

6

NUT(10)

7542423

$3.99

7

SPACER,F.ECCENTRIC

5811519

Unavailable

8

Asm., Front Tightener (See Pg. NO TAG For Details)

-------

Unavailable

9

SCREW

7517303

Unavailable

9

SCREW

7517303

Unavailable

10

CLAMP,FR.ECCENTRIC

5131379

Unavailable

11

WASHER(10)

7552603

$1.49

12

BOLT(10)

7515522

$3.99

13

WASHER, THRUST(10) Substituted by 7555871

7555787

Unavailable

14

SCREW

7517304

Unavailable

15

WASHER Substituted by 7555720

7555784

Unavailable

16

CONNECTOR LINK

3225024

$19.99

17

CHAIN, DRIVE Substituted by 3224056-064 (Incl. 16)

3224041

Unavailable

18

SHIM,(.030) (.030)

5211517

$29.99

19

SCREW(10)

7512252

Unavailable

19

SCREW(10)

7512252

Unavailable

20

DECAL,FR.CHAIN TENSION

7074956

Unavailable

21

GUARD,FR.CHAIN

5432572

Unavailable

22

FOIL,CHAINGUARD

5811502

Unavailable

23

Asm., Center Tightener (See Pg. NO TAG For Details)

-------

Unavailable

24

CHAIN, DRIVE Substituted by 3224056-070 (Incl. 16)

3224044

Unavailable
