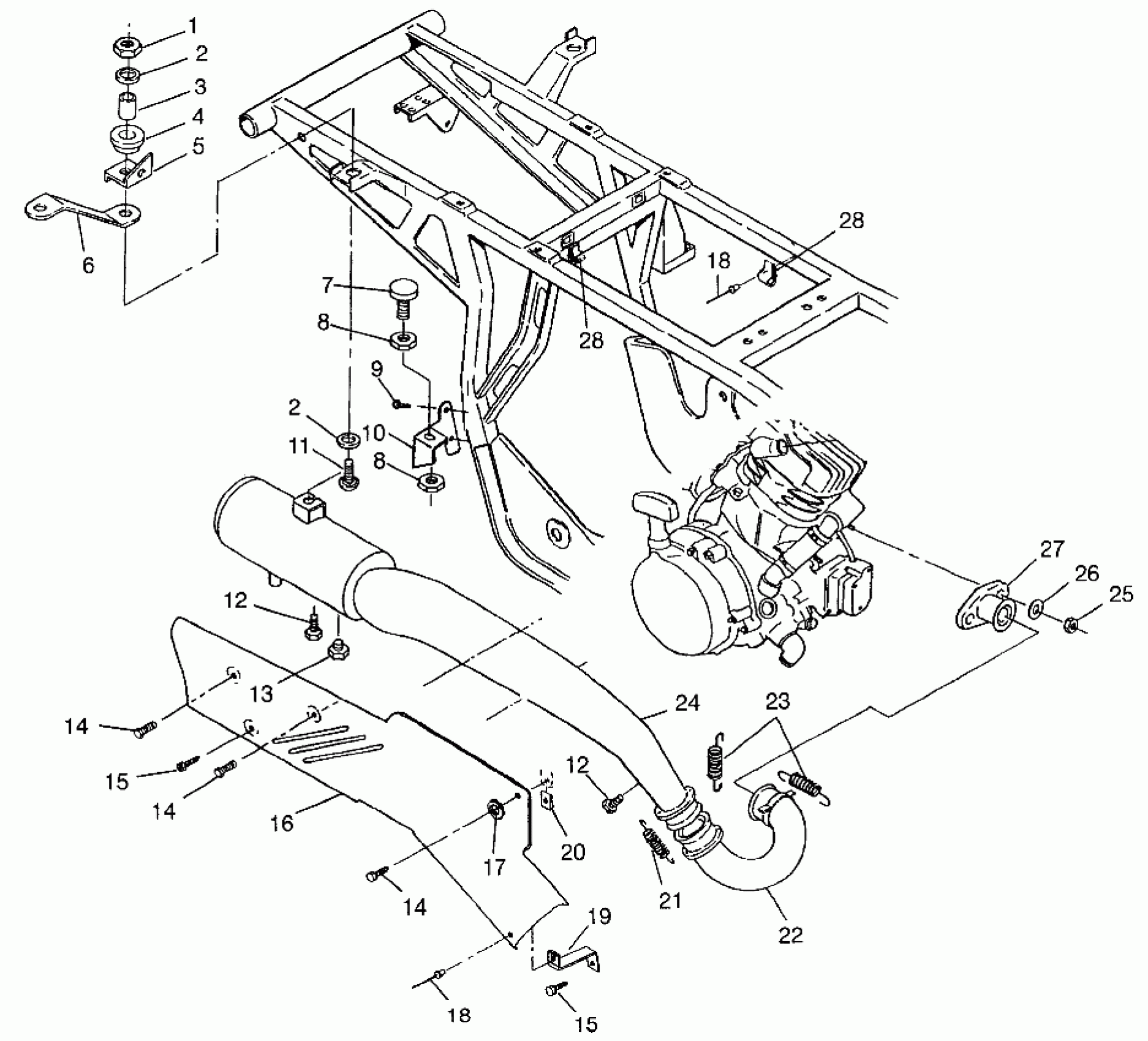

Polaris SPORTSMAN 400L - W97AC38C EXHAUST SYSTEM Sportsman 400L W97AC38C (4939673967A012) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

WASHER(10)

7555716

$1.59

2

WASHER(10)

7555716

$1.59

3

BUSHING-RES. MT.

5010192

$6.39

4

DAMPENER

5410241

Unavailable

5

Bracket, Rack Support, RH (See Pg. A9, Ref. 10)

-------

Unavailable

6

Fender Support, Rear (See Pg. A9, Ref. 12)

-------

Unavailable

7

MOUNT,TORQUE-STOP

3110064

Unavailable

8

NUT HEX(10)

7542301

$1.59

8

NUT HEX(10)

7542301

$1.59

9

BOLT(10)

7512232

$1.49

10

BRKT,MFLR.SUPPORT,BLK

5242081-067

Unavailable

11

BOLT(10)

7515316

$2.39

12

BOLT(10)

7512666

$2.39

12

BOLT(10)

7512666

$2.39

13

PLUG, CLEANOUT

7052083

$15.87

14

SCREW(10)

7515140

$3.19

14

SCREW(10)

7515140

$3.19

14

SCREW(10)

7515140

$3.19

15

BOLT, BLACK(10)

7512282

$1.49

15

BOLT, BLACK(10)

7512282

$1.49

16

HEATSHIELD ASM. (Incl. Foam)

1260717

Unavailable

17

WASHER(10)

7555923

$2.39

18

RIVET(50)

7621462

$1.49

18

RIVET(50)

7621462

$1.49

19

BRKT,BLK,HEATSHIELD

5240179-067

Unavailable

20

NUT, SPEED(10)

7670060

$3.99

21

SPRING, EXHAUST(10)

7042031

$5.65

22

HEADPIPE WELD.

1260549-029

Unavailable

23

SPRING-EXHAUST(10)

7042029

$4.84

24

EXHAUST WELD,BLK,(350)

1260588-029

Unavailable

25

NUT(10)

3080285

Unavailable

26

WASHER LOCK ,(10)

3080530

$3.19

27

MANIFOLD, BLK.

1260543-029

Unavailable

28

CLAMP,NYLON,CABLE(10)

7080539

$4.79

28

CLAMP,NYLON,CABLE(10)

7080539

$4.79
