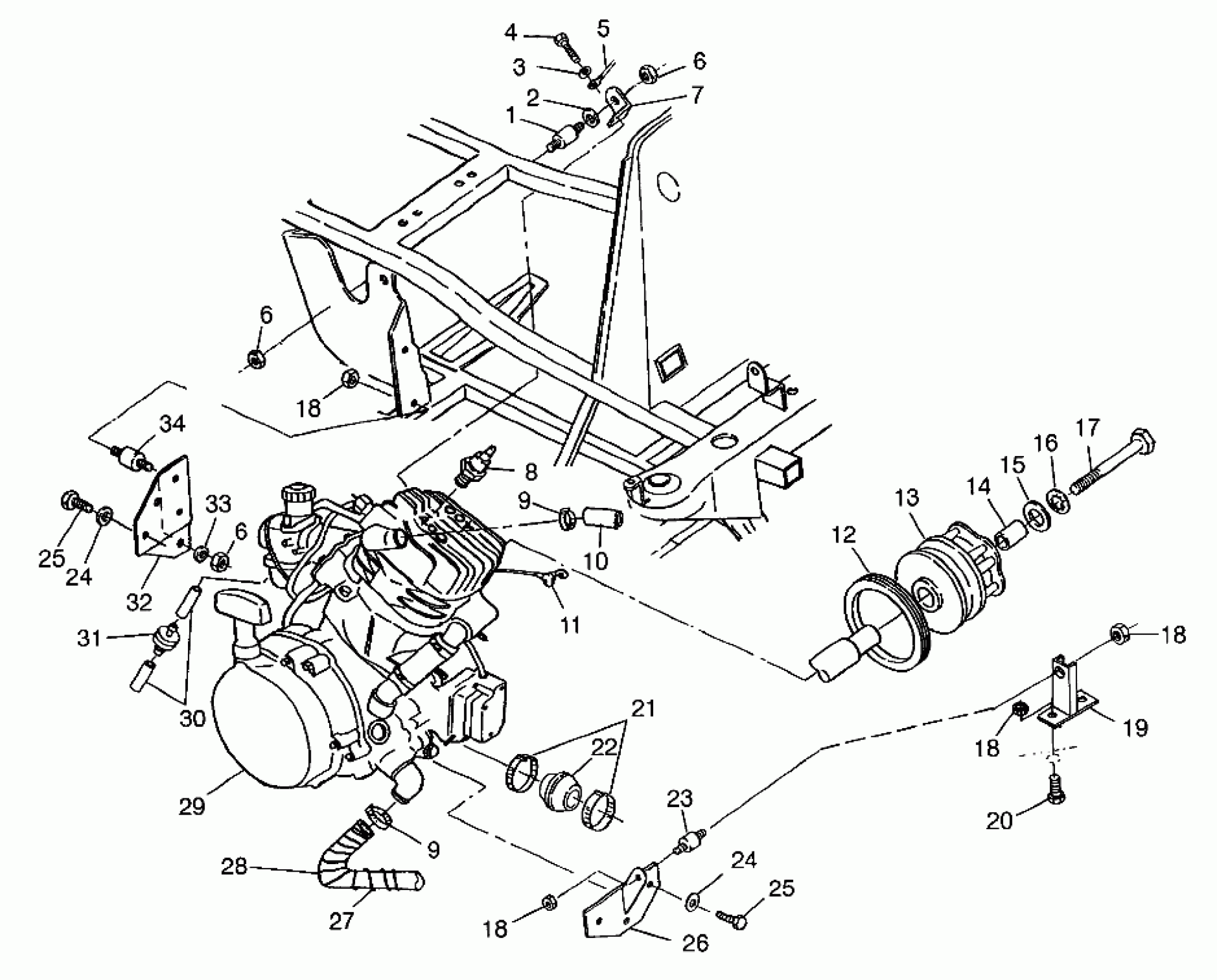

Polaris SPORTSMAN 400L - W97AC38C ENGINE MOUNTING Sportsman 400L W97AC38C (4939673967A010) Diagram

#

Description
Price

1

MT.,RUBBER,ENG.

3110038

Unavailable

2

INSULATOR,MOTOR MT.

5430802

$27.99

3

LOCK WASHER(10)

7552901

$1.49

4

BOLT(10)

7515321

$1.49

5

CABLE,GND-ENGINE

4010132

Unavailable

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

7

MOUNT,ENG,TOP

5241801-067

Unavailable

8

SPARKPLUG (10)

3070156

$3.99

9

CLAMP,HOSE,(10)

7080614

$7.19

9

CLAMP,HOSE,(10)

7080614

$7.19

10

HOSE,ENG,UPPER

5410570

$44.51

11

Cable, Solenoid/Starter (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

12

Seal, Cover Case (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

13

Asm., Drive Clutch (See Pg. NO TAG for Details)

-------

Unavailable

14

BUSHING-.437 X.770 X.50

5430261

$7.19

15

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

16

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

17

BOLT(10)

7512566

$30.79

18

NUT LOCK(10)

7542403

$3.99

18

NUT LOCK(10)

7542403

$3.99

18

NUT LOCK(10)

7542403

$3.99

18

NUT LOCK(10)

7542403

$3.99

19

MOUNT,ENG,LOW,BLK

1040532-067

Unavailable

20

BOLT(10)

7512457

$3.99

21

CLAMP, NARROW BAND(10)

7080511

$4.79

22

BOOT,CLUTCH INTAKE(400)

5410883

$7.99

23

MOUNT,MOTOR

3110026

Unavailable

24

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

24

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

25

SCREW(10)

7512490

$3.99

25

SCREW(10)

7512490

$3.99

26

MOUNT,ENGINE

1040231-067

Unavailable

27

SPRING,HOSE RETAINER

7041079

$4.95

28

HOSE,LOWER ENGINE

5411173

$91.99

29

ENG.(S.B.)EC38PLE-O7 Substituted by 1211625 NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization r

3085547

Unavailable

30

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

31

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

32

MOUNT, REAR MOTOR, BLK.

5240542-067

Unavailable

33

WASHER(10)

7555806

$1.49

34

MOUNT,RUBBER,ENG.

3110042

Unavailable
