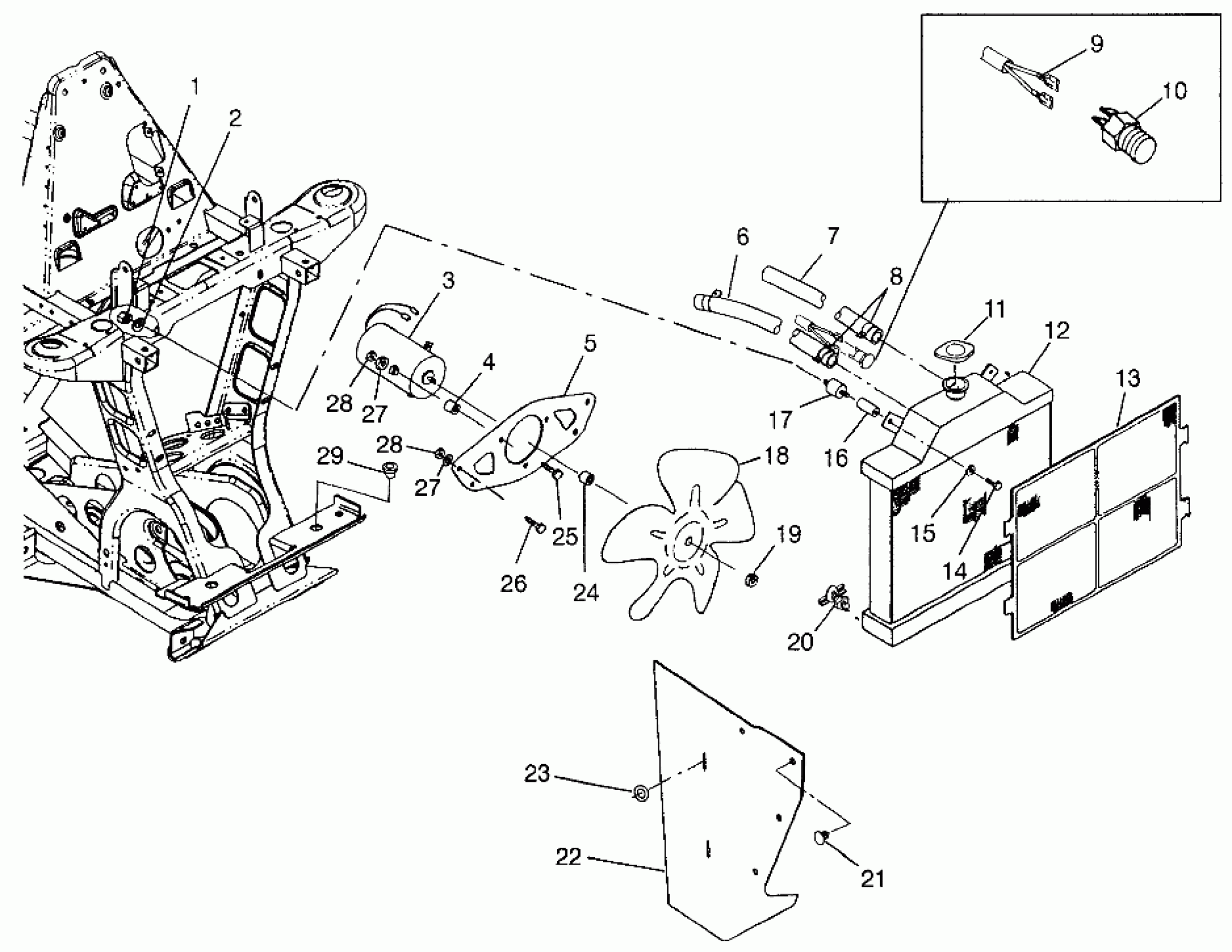

Polaris SPORTSMAN 400L - W97AC38C COOLING SYSTEM Sportsman 400L W97AC38C (4939673967A011) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542122

$1.49

2

WASHER(10)

7558301

$1.49

3

MOTOR,FAN,LQ,W/CONNECTOR (Incl. 19, 24)

4170011

Unavailable

4

SPACER,FAN BRKT.

5432294

$3.99

5

BRKT,FAN MOUNT,BLK

5241788-067

$7.43

6

Hose, Lower Engine (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

7

Hose, Upper Engine (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

8

CLAMP,HOSE,(10)

7080614

$7.19

9

HARNESS,FAN/THERM.SWITCH

2460515

Unavailable

10

SWITCH,THERMAL,FAN,L/C

4110225

Unavailable

11

CAP, RADIATOR Substituted by 2511270

2511189

Unavailable

12

RADIATOR,"U"FLOW

1240015

Unavailable

13

COVER,RADIATOR,W/MESH

5431760

Unavailable

14

SCREW(10)

7512113

$3.99

15

WASHER(10)

7552605

$5.27

16

Spacer, Mount

5020572

$8.79

17

Mount, Rubber

3110032

$7.99

18

BLADE, FAN

5240822

$57.59

19

NUT

7542154

Unavailable

20

VALVE,DRAIN COCK

7052181

Unavailable

21

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

22

SHIELD,LH RADIATOR

5431188

Unavailable

22

SHIELD,RH RADIATOR

5431189

Unavailable

23

O RING

5410607

$5.99

24

SPACER

5333457

Unavailable

25

SCREW

7517221

$1.83

26

BOLT(10)

7512232

$1.49

27

WASHER, FLAT(10)

7558201

$5.79

27

WASHER, FLAT(10)

7558201

$5.79

28

Nut

7547004

$4.79

28

Nut

7547004

$4.79

29

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59
