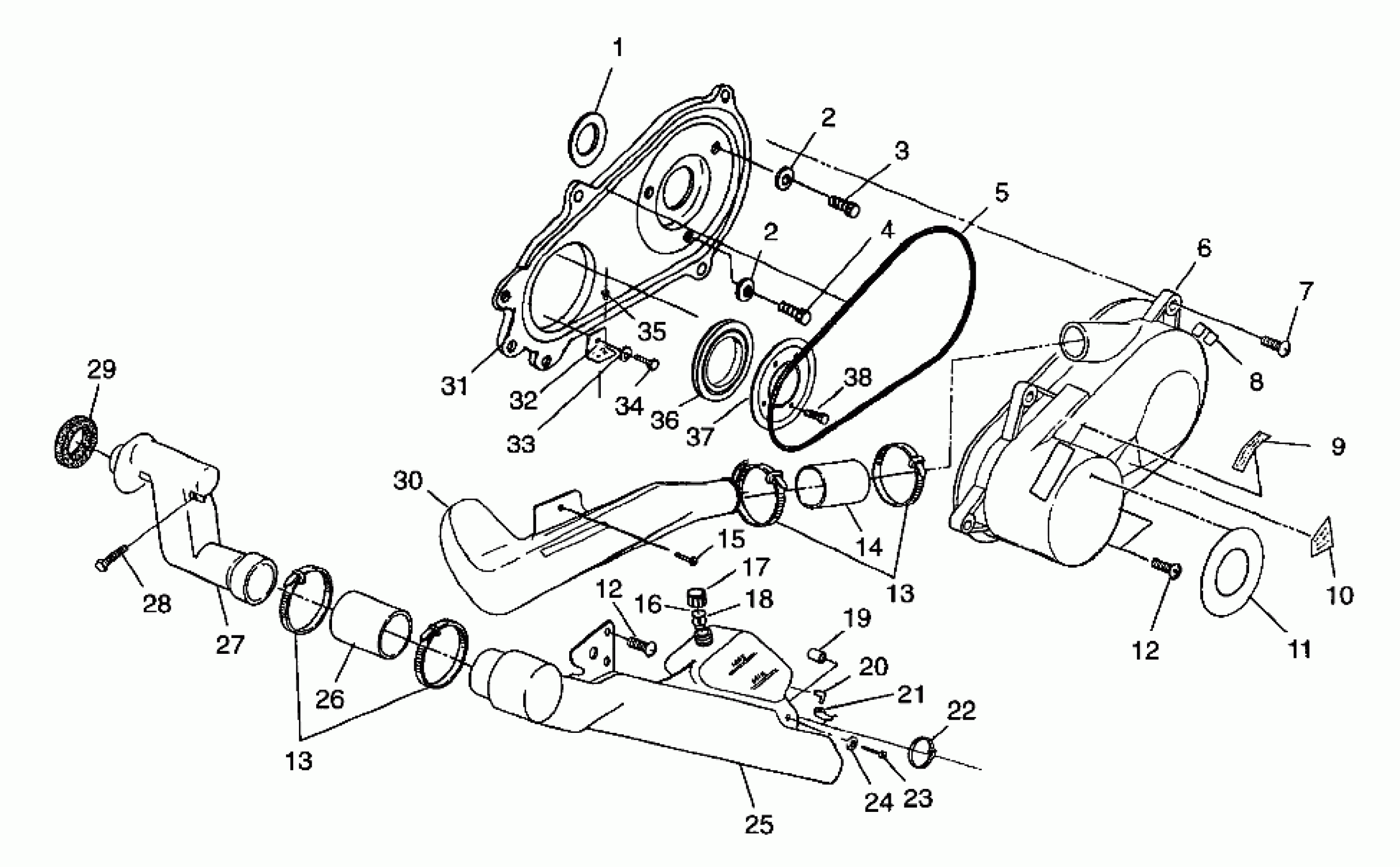

Polaris SPORTSMAN 400L - W97AC38C CLUTCH COVER Sportsman 400L W97AC38C (4939673967C006) Diagram

#

Description
Price

1

SEAL,CVR,CASE 1/2

5411180

$24.27

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

3

SCREW

7517219

$4.79

4

BOLT(10)

7512278

Unavailable

5

SEAL,CLUTCHCOVER

5521301

$30.88

6

COVER,CLUTCH,FRONT Substituted by 5433542

5431961

$173.74

7

SCREW(10)

7512093

$1.49

8

CLIP,CLUTCH COVER(10)

7670051

$2.99

9

DECAL,CLUTCH COVER Substituted by 7078689

7074946

Unavailable

10

DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]

7072789

Unavailable

11

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

12

SCREW(10)

7512094

$1.59

12

SCREW(10)

7512094

$1.59

13

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

13

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

14

BOOT,CLUTCH INTAKE

5410421

$11.19

15

BOLT(10)

7512232

$1.49

16

GASKET-OVERFLOW CAP

5810279

$2.41

17

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

18

PLUG,CAP Substituted by 5433774

5431895

Unavailable

19

SPACER, NYLON(10) [No Longer Available]

5432375

Unavailable

20

FITTING,90 DEGREE

7052065

$7.19

21

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

22

CLAMP, NARROW BAND(10)

7080511

$4.79

23

SCREW(10)

7512025

$4.79

24

WASHER(10)

7555783

$3.99

25

DUCT,INLET DOWNTUBE,LIQ

5432442

Unavailable

26

BOOT, INTAKE

5410509

$7.99

27

DUCT, INLET, TOP

5431261

$49.59

28

SCREW(10)

7512017

$4.79

29

SEAL, INTAKE

5810480

Unavailable

30

DUCT,AIR OUT,CLUTCH

5432615

Unavailable

31

KIT,CVR,IN.CLUTCH,(400) Substituted by 2201159 (Incl. 7, 12, 34)

2200790

$141.65

32

BRKT,CLUTCH COVER,BLK.

5241213-067

Unavailable

33

WASHER(10)

7555935

$2.39

34

SCREW(10)

7512095

$4.79

35

RIVET,INTERLOCK,B(50)

7661638

$1.49

36

Seal, Cover Case

5410575

Unavailable

37

BRKT,RETAINER,SEAL

5222446-067

Unavailable

38

Asm., Screw and Washer (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable
