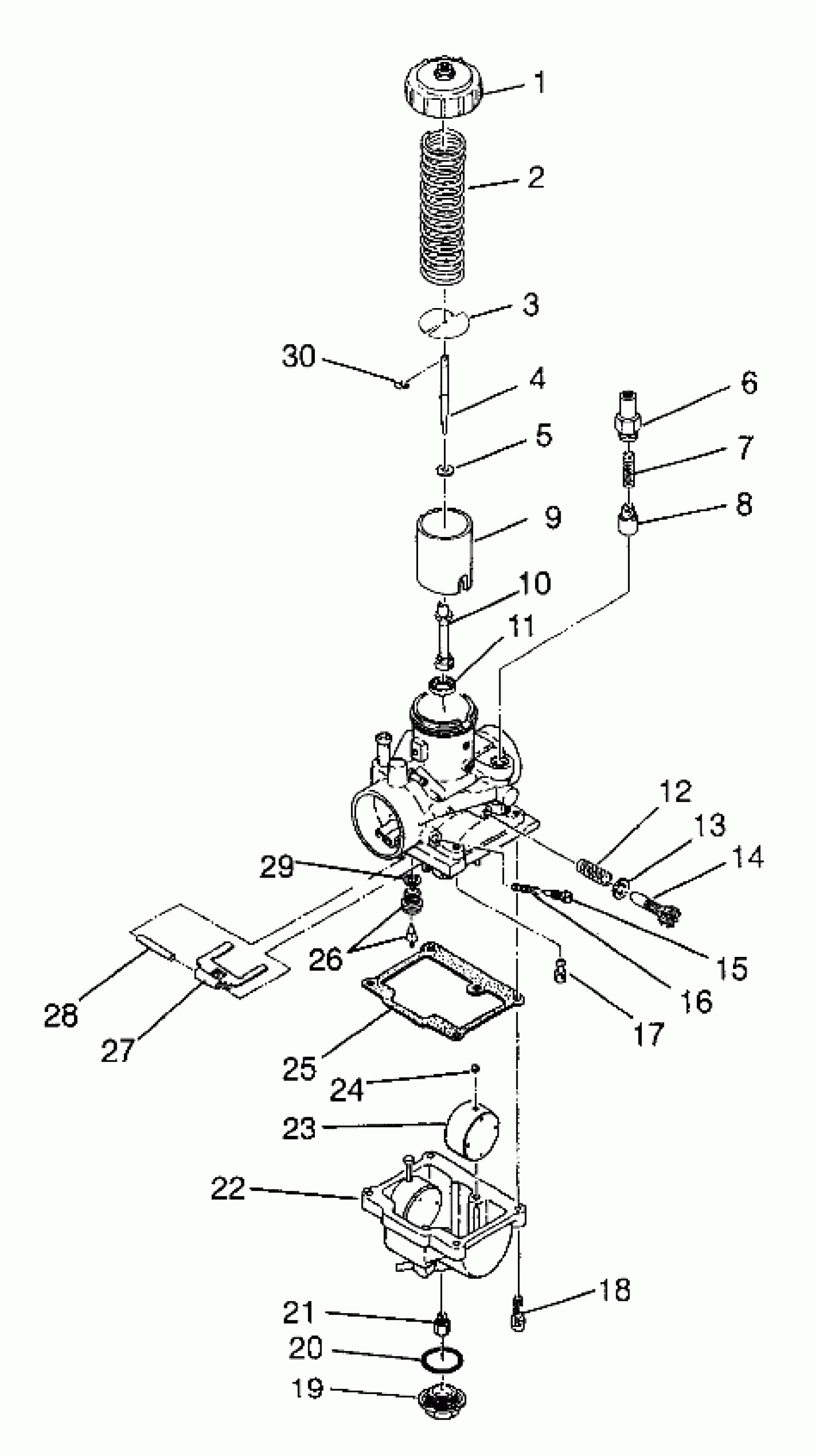

Polaris SPORTSMAN 400L - W97AC38C CARBURETOR Sportsman 400L W97AC38C (4939673967D005) Diagram

#

Description
Price

-

CARBURETOR (Incl. 1-30)

3130710

Unavailable

1

TOP ASM

3130184

$32.37

2

Spring, Throttle

3130496

$28.32

3

PLATE (Throttle)

3130027

$9.70

4

JET NEEDLE (6CEY6-3)

3130476

$24.27

5

Washer

3130355

$7.19

6

HOLDER,GUIDE

3130199

$28.32

7

SPRING,PLUNGER

3130006

$8.89

8

PLUNGER ASM, STARTER

3130328

$32.37

9

VALVE,THROTTLE,(1.5) (1.5)

3130494

Unavailable

10

NEEDLE JET ASM. (480)

3130429

Unavailable

11

RING,MAIN JET

3130596

Unavailable

12

SPRING,THROT.ADJ.

3130436

Unavailable

13

Washer

3130447

Unavailable

14

SCREW,THROTTLE STOP

3130009

$19.99

15

SCREW,AIR

3130011

$19.99

16

SPRING,AIR ADJUST

3130012

$8.89

17

JET,PILOT,#30(10) (#30)

3130065

$8.89

18

SCREW & WASHER(10)

3130025

$3.19

19

Screw, Guide

3130432

$27.99

20

O RING

3130239

Unavailable

21

JET,MAIN,HX.HD#200(10) (#200)

3130123

$7.27

22

BOWL, FLOAT (350)

3130443

Unavailable

23

FLOAT ASM.

3130430

$43.56

24

CAP,(10)

3130237

$4.03

25

PACKING,FLOAT CHAMBER

3130020

$16.17

26

NEEDLE VALVE ASM.(2.5) (2.5)

3130495

$65.63

27

ARM,FLOAT

3130018

$24.27

28

PIN, FLOAT

3130361

$8.89

29

WASHER(10)

3130047

$4.84

30

E RING(10) Substituted by 3130508

3130003

Unavailable
