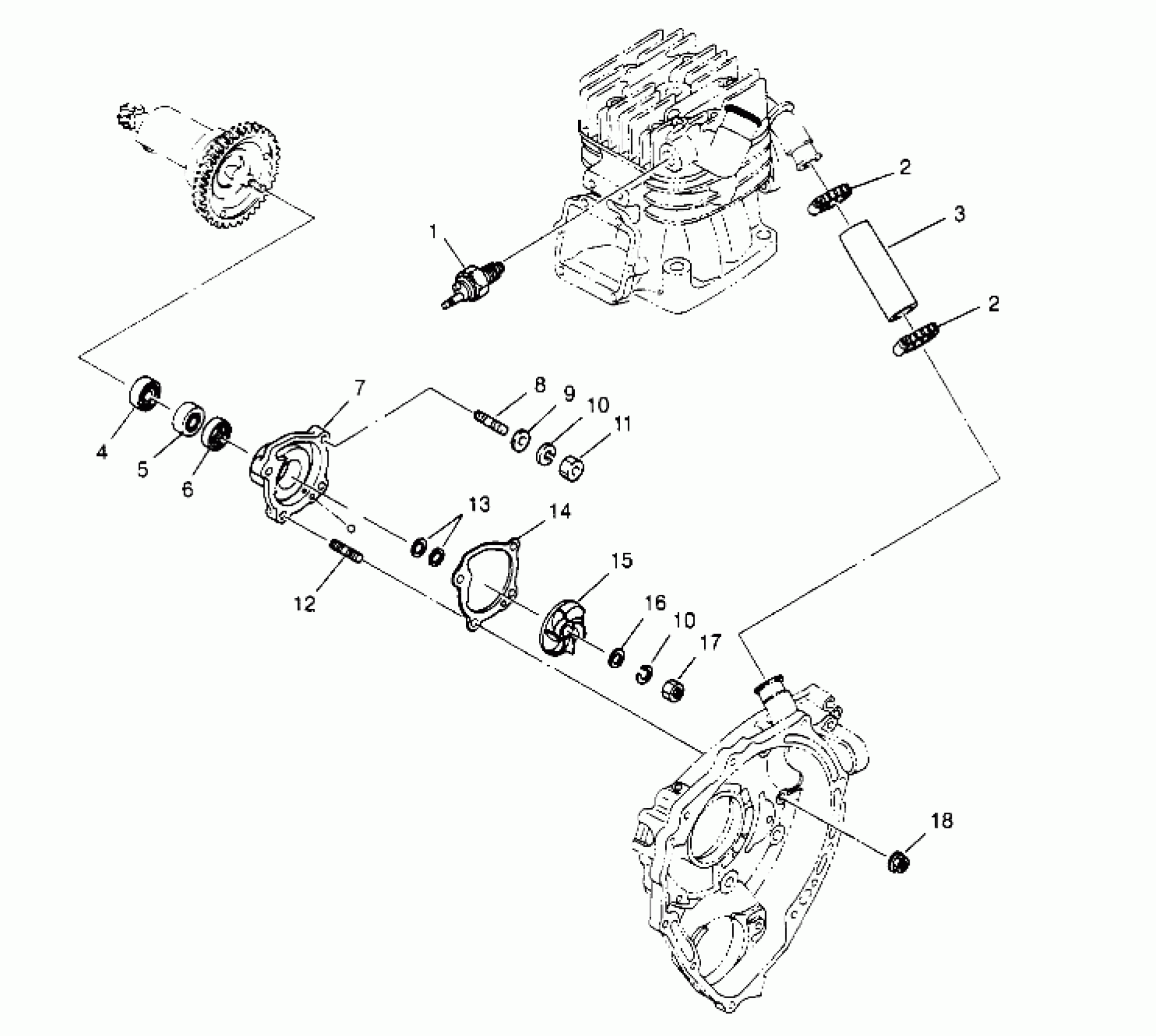

Polaris SPORT 400L - W948540 WATER PUMP Sport 400L W948540 (4927232723C010) Diagram

#

Description
Price

1

SWITCH,THERMAL,IOS

3084284

Unavailable

2

CLAMP, HOSE Substituted by 3086774

3084191

$12.99

2

CLAMP, HOSE Substituted by 3086774

3084191

$12.99

3

HOSE, MAIN Substituted by 3086773

3084190

Unavailable

4

Bearing, Ball

3084183

Unavailable

5

Seal, Oil

3084184

Unavailable

6

Seal, Oil

3084185

Unavailable

7

CASING, WATERPUMP Substituted by 3086770 (Incl. 4-7, 12)

3084753

Unavailable

7

CASING, WATERPUMP Substituted by 3086770 (Incl. 7, 12, )

3084754

Unavailable

8

STUD

3084182

Unavailable

9

WASHER(10)

3080078

Unavailable

10

WASHER SPRING(10)

3080077

$2.39

10

WASHER SPRING(10)

3080077

$2.39

11

NUT(10)

3084375

$2.99

12

STUD Substituted by 3086772

3084520

$3.81

13

SPACER #3, (0.1)

3084188

Unavailable

13

SPACER #4, (0.2)

3084189

Unavailable

14

Gasket

3084187

$12.39

15

Impeller

3084186

Unavailable

16

Washer

3082206

$1.49

17

Nut

3083073

$2.39

18

NUT, FLANGE(10)

3083856

$2.39
