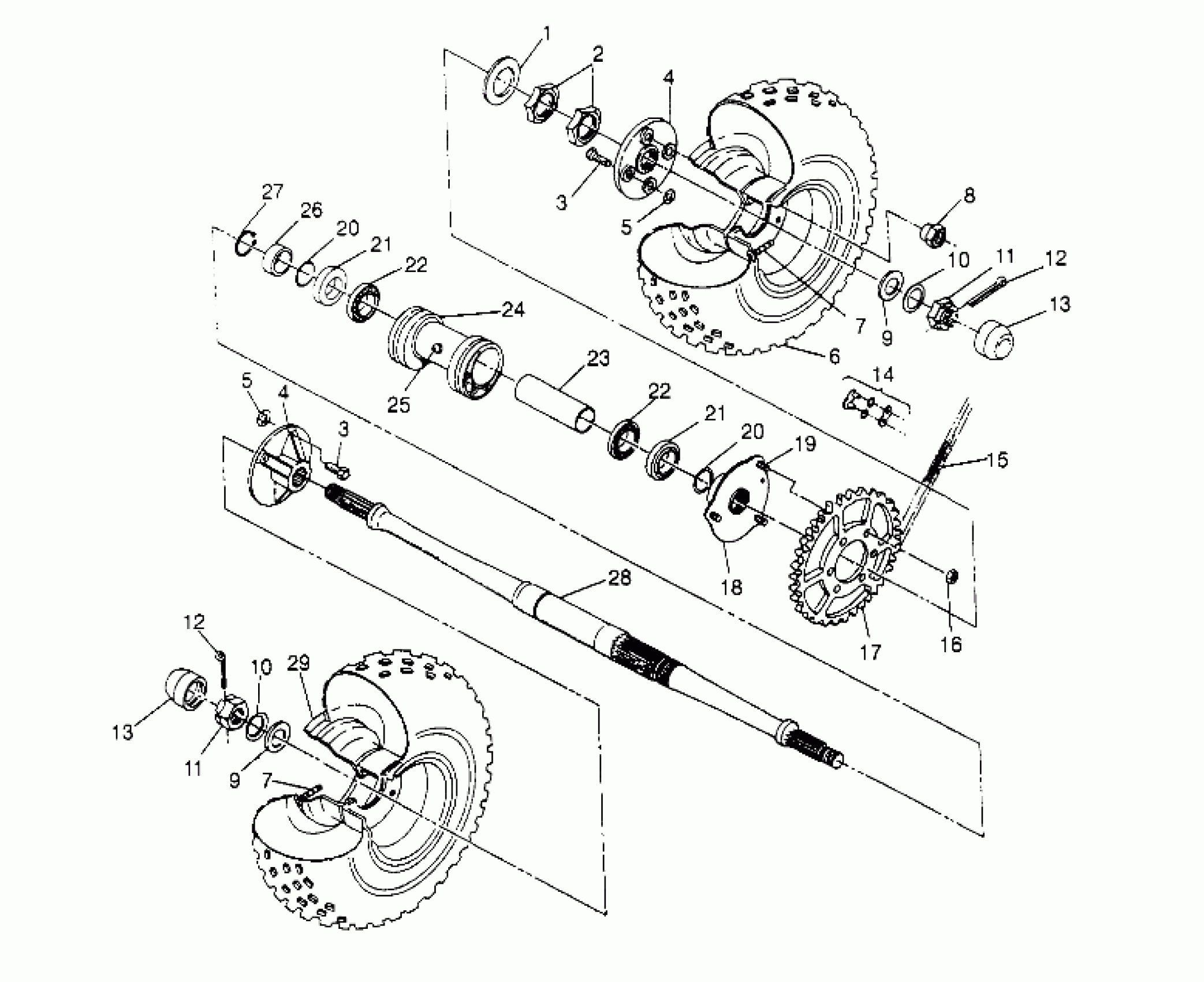

Polaris SPORT 400L - W948540 REAR WHEEL DRIVE ASSEMBLY Sport 400L W948540 (4927232723C001) Diagram

#

Description
Price

1

WASHER(10)

7555764

Unavailable

2

Nut, Jam

5020468

$39.59

3

BOLT, WHEEL(10)

7512673

$3.19

3

BOLT, WHEEL(10)

7512673

$3.19

4

KIT, MACH.HUB (Incl. 10)

2200341

$93.08

4

KIT, MACH.HUB (Incl. 10)

2200341

$93.08

5

PUSHNUT, BOLT(10)

7670081

$3.99

5

PUSHNUT, BOLT(10)

7670081

$3.99

6

TIRE,REAR,(4X6) (22X11X10)

5410539

Unavailable

7

VALVE-RIM

1525017

$5.59

7

VALVE-RIM

1525017

$5.59

8

NUT, WHEEL(10)

7542714

$1.59

9

WASHER(10)

7555745

$7.19

9

WASHER(10)

7555745

$7.19

10

WASHER, CONE(10)

7555796

$7.99

10

WASHER, CONE(10)

7555796

$7.99

11

NUT, CASTLE(10)

7543005

Unavailable

11

NUT, CASTLE(10)

7543005

Unavailable

12

PIN, COTTER(10)

7661404

$4.79

12

PIN, COTTER(10)

7661404

$4.79

13

COVER,DUST,HUB Substituted by 5411164

5410404

Unavailable

13

COVER,DUST,HUB Substituted by 5411164

5410404

Unavailable

14

CONNECTOR LINK

3225024

$19.99

15

CHAIN, DRIVE, 84P Substituted by 3224056-084

3224047

Unavailable

16

NUT LOCK(10)

7542403

$3.99

17

SPROCKET, 34T Substituted by 3222068

3222050

$109.99

18

SPROCKET HUB ASM. (Incl. 19)

1520170

Unavailable

19

STUD(10)

7515513

$1.49

20

O RING, 1 5/16(10)

5410415

Unavailable

20

O RING, 1 5/16(10)

5410415

Unavailable

21

SEAL, REAR AXLE

3610013

$19.99

21

SEAL, REAR AXLE

3610013

$19.99

22

Bearing, Ball

3515501

$27.99

22

Bearing, Ball

3515501

$27.99

23

TUBE,BEARING SPACER

5010204

Unavailable

24

HOUSING, AXLE

5130663

Unavailable

25

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

26

SPACER,BEARING

5010206

$35.99

27

RING, SNAP(10)

7710405

$4.79

28

AXLE, REAR

5020504

$239.99

29

RIM,REAR,WHITE

1520183-133

Unavailable
