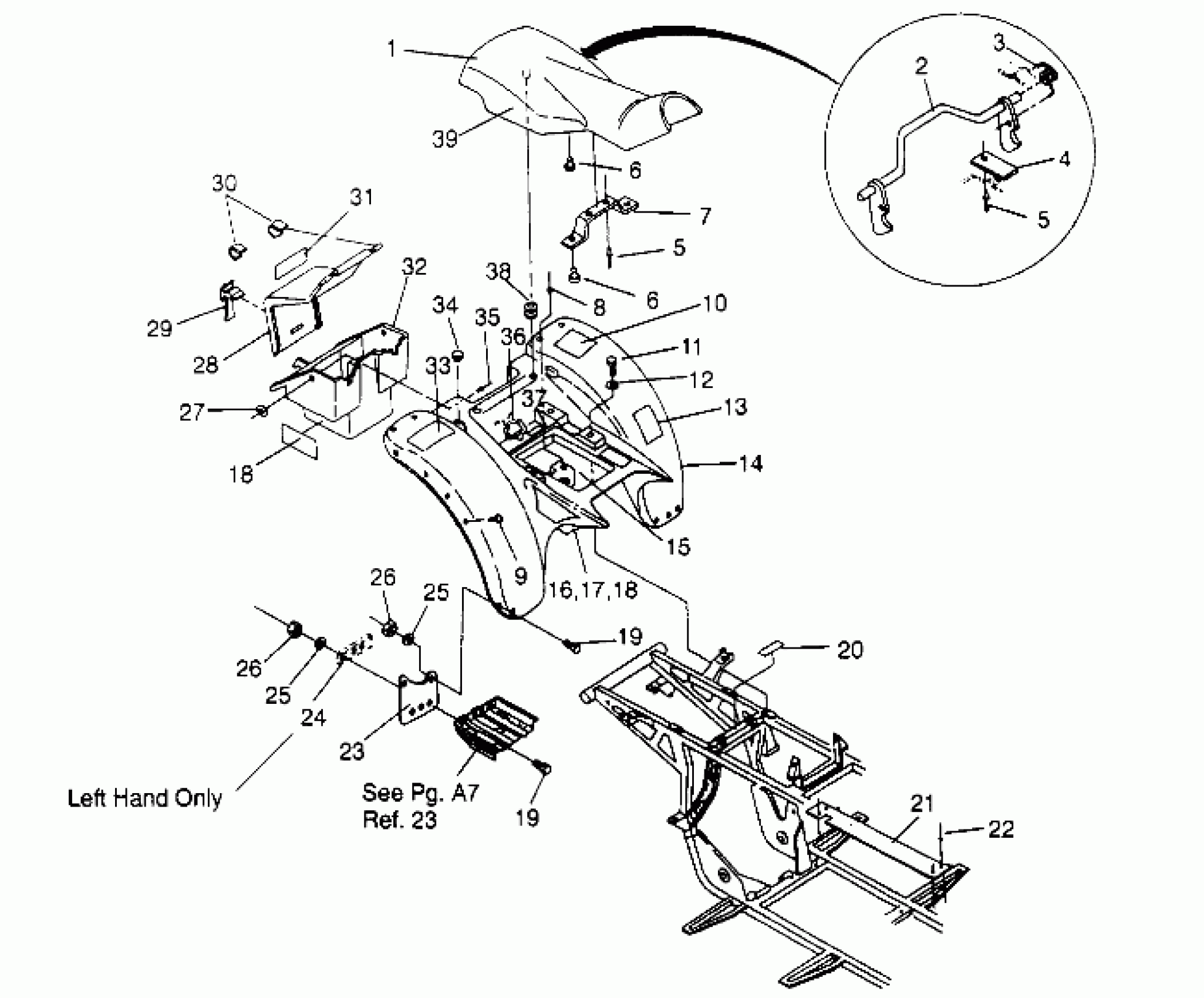

Polaris SPORT 400L - W948540 REAR CAB ASSEMBLY Sport 400L W948540 (4927232723A006) Diagram

#

Description
Price

1

SEAT ASM,(ATV),P.RED Substituted by 2682357-136 (Incl. 2-7, 39)

2681724-136

Unavailable

2

LATCH,SEAT

1011558

Unavailable

3

SPRING, LATCH

7041158

Unavailable

4

BRACKET,LEVER RETAINER

5211033

$29.25

5

BLIND RIVET(50)

7621403

$1.49

5

BLIND RIVET(50)

7621403

$1.49

6

Bumper, Rubber

5410414

$3.19

6

Bumper, Rubber

5410414

$3.19

7

BRKT,SUPPORT SEAT BASE

5222837-067

Unavailable

8

RIVET,3/16X.402(50)

7621432

$1.49

9

CLIP, PUSH-ON(10)

7670052

$1.99

10

DECAL(CPSC),WARN,HVY.LOAD [No Longer Available]

7072786

Unavailable

11

BOLT(10)

7512232

$1.49

12

WASHER, FLAT(10)

7555859

$1.49

13

DECAL,TIRE PRESS.

7074690

Unavailable

14

CAB,REAR,WHITE

5430991-133

Unavailable

15

BRKT,R.HOLDDOWN

5220880

Unavailable

16

FOIL, REAR CAB (Inside)

5810957

Unavailable

17

Foil, Rear Cab, Small

5810991

Unavailable

18

TAPE, FOIL

5810310

Unavailable

18

TAPE, FOIL

5810310

Unavailable

19

BOLT, BLACK(10)

7512282

$1.49

19

BOLT, BLACK(10)

7512282

$1.49

20

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

21

GUARD,CLUTCH,OUTER

5222860-067

$7.06

22

RIVET-3/16-.090-.290

7661637

$1.49

23

MUDFLAP,LH,LOW,REAR

5850076

Unavailable

23

MUDFLAP,RH,LOW.REAR

5850111

Unavailable

24

BRKT, LH MUD FLAP

5211131-067

Unavailable

25

WASHER, FLAT(10)

7555859

$1.49

25

WASHER, FLAT(10)

7555859

$1.49

26

NUT-LOCK(10)

7542122

$1.49

26

NUT-LOCK(10)

7542122

$1.49

27

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

28

LID,TOOLBOX(SIL/WHI)

5430769-1043

$90.48

29

STRAP,TOOL COMPARTMENT

5410425

Unavailable

30

CLIP, LID HINGE(10)

7670050

Unavailable

31

DECAL(CPSC),PASS.WRN. [No Longer Available]

7072805

Unavailable

32

BOX,TOOL COMP.

5430882

Unavailable

33

DECAL(CPSC),WARN,HVY.LOAD [No Longer Available]

7072786

Unavailable

34

PLUG, RACK HOLE

5430887

$2.99

35

RIVET(50)

7621462

$1.49

36

RETAINER,TOOL POUCH

7080385

Unavailable

37

DECAL,CARB.INFO.

7073761

Unavailable

38

GROMMET

5410413

Unavailable

39

COVER,SEAT,P.RED

2681723-136

Unavailable
