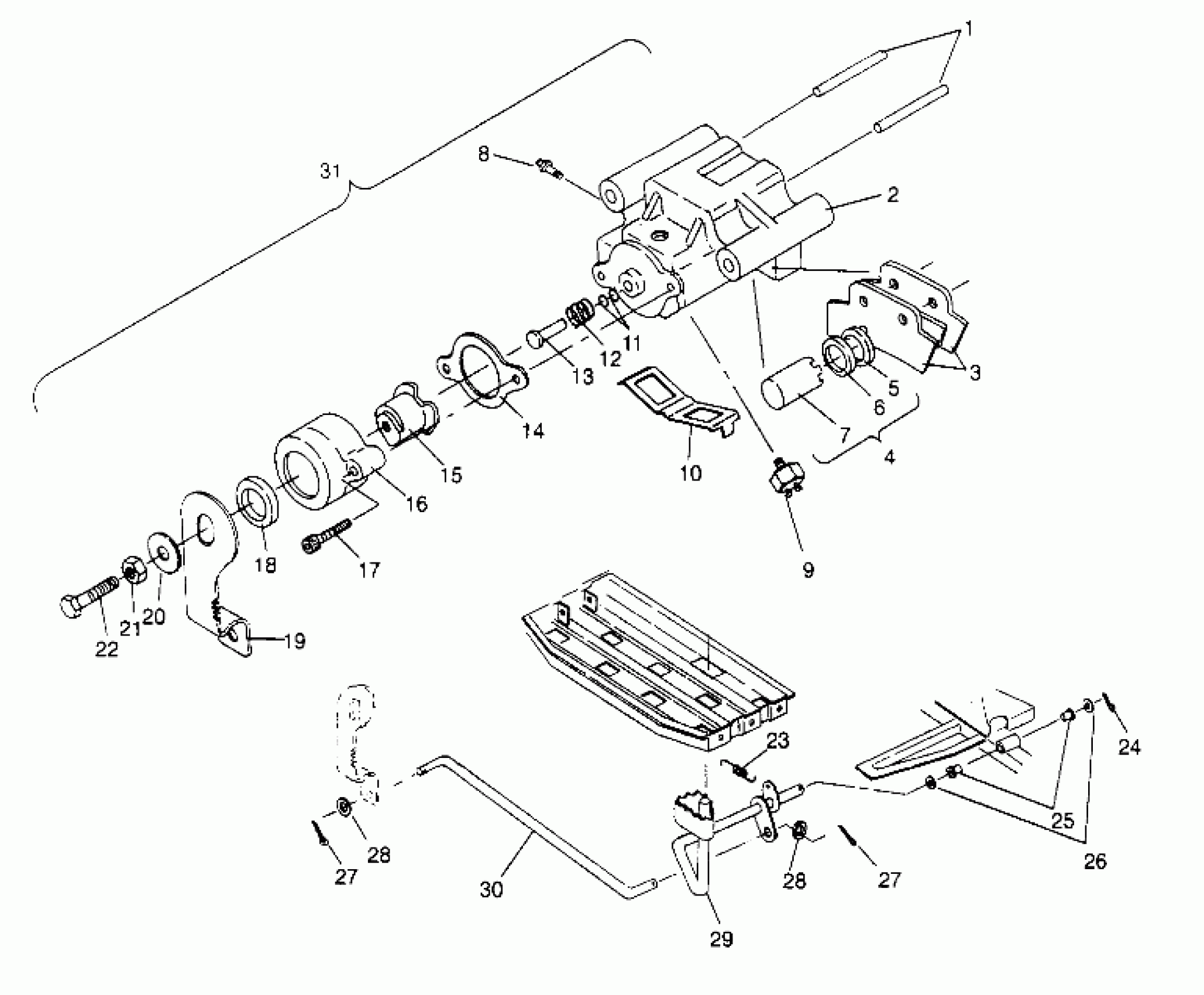

Polaris SPORT 400L - W948540 REAR BRAKE ASSEMBLY Sport 400L W948540 (4927232723B014) Diagram

#

Description
Price

1

PIN, DOWEL(10)

7661820

$13.99

2

CALIPER,BRAKE,MACH. Substituted by 5131117

5130946

Unavailable

3

KIT,BRAKEPAD,REAR

2200464

$66.65

4

KIT-PISTON & SEAL (Incl. 5-7)

2200463

$97.76

5

SQUARE RING-MOLDED (.134) (.134 Sq.)

5410766

$12.13

6

RING, SQUARE,(1''DIAM.) Substituted by 2200463 (.099 Sq.)

5410767

$97.76

7

PISTON,BRAKE Substituted by 2200463

5020667

$97.76

8

SCREW,BLEEDER

7080352

$3.17

9

SWITCH,STOPLIGHT

4110164

$204.24

10

SPRING,ANTI-RATTLE

5222232

Unavailable

11

O RING-.364X.504X.07

5410542

$4.84

12

SPRING,BRAKE,COMP.

7041219

Unavailable

13

PIN,BRAKE CALIPER

5020666

Unavailable

14

GASKET, BRAKE

5830009

Unavailable

15

RAMP,MOVEABLE BRAKE Substituted by 2200905

5630458

Unavailable

16

RAMP, STAT.BRAKE Substituted by 2200905

5630457

Unavailable

17

SCREW(10)

7512173

Unavailable

18

SEAL, BRAKE

3610026

Unavailable

19

ARM,BRAKE CALIPER

5240624

Unavailable

20

WASHER, SPRING(10)

7555828

Unavailable

21

NUT(10)

7542129

$4.76

22

BOLT

7515145

Unavailable

23

SPRING-EXHAUST(10)

7042029

$5.65

24

COTTER PIN(10)

7661401

$0.79

25

BUSHING-PEDAL PIVOT

5431107

$8.73

26

WASHER THRUST(10)

7558702

$1.59

27

PIN COTTER(10)

7661203

$1.19

27

PIN COTTER(10)

7661203

$1.19

28

WASHER(10)

7555806

$0.79

28

WASHER(10)

7555806

$0.79

29

FOOTBRAKE,BLK.

1910144-067

Unavailable

30

ROD, BRAKE

5224531

$51.59

31

CAL.ASM,REAR BRAKE Substituted by 1910180 (Incl. 1-22)

1910156

Unavailable
