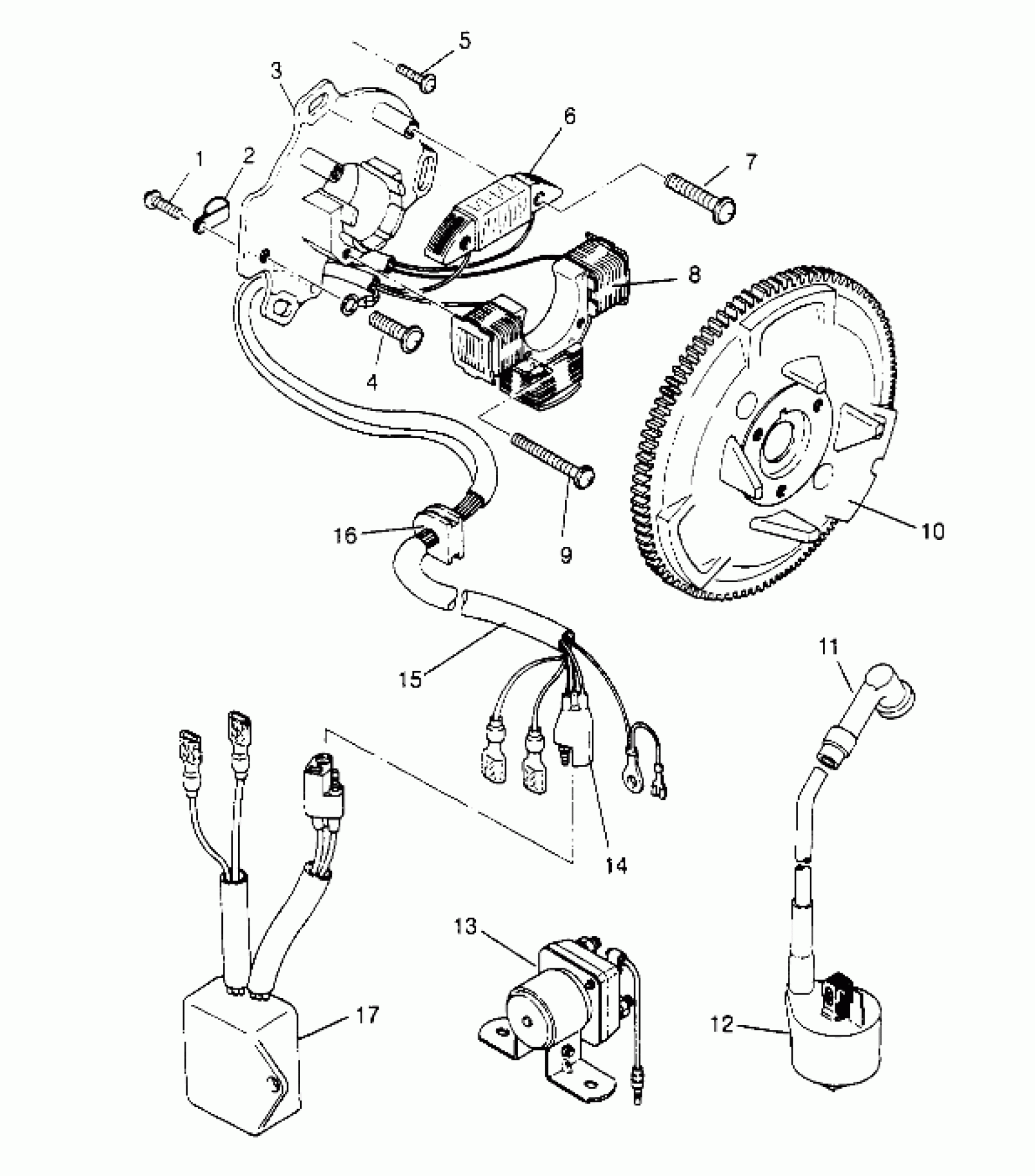

Polaris SPORT 400L - W948540 MAGNETO ASSEMBLY Sport 400L W948540 (4927232723D001) Diagram

Description

Price

SCREW&WASHER ASM(10)

3081256

$3.19

Clamp

3081146

$1.49

PLATE ASM. (Incl. 1-9, 14-16)

3084785

Unavailable

Plate, Coil

3084786

$95.19

SCREW&WASHER,(10)

3081260

$3.19

SCREW, FLANGE (Pilot)

3084766

Unavailable

Coil, Exciting

3083422

Unavailable

SCREW & WASHER

3083423

$3.19

STATOR #1 Substituted by 3084785

3084788

Unavailable

SCREW&WASHER ASM(10)

3081342

$1.49

FLYHEEL,W/RING GEAR

3084784

Unavailable

CAP SPARK PLUG,(10)

4020129

$9.70

COIL, IGNITION *

3083923

Unavailable

SWITCH-MAGNETIC Substituted by 3085521

3083211

Unavailable

COUPLER

3083909

$23.99

Harness, Wire

3084787

$113.99

Grommet

3084789

$10.79

CDI System

3084790

Unavailable
