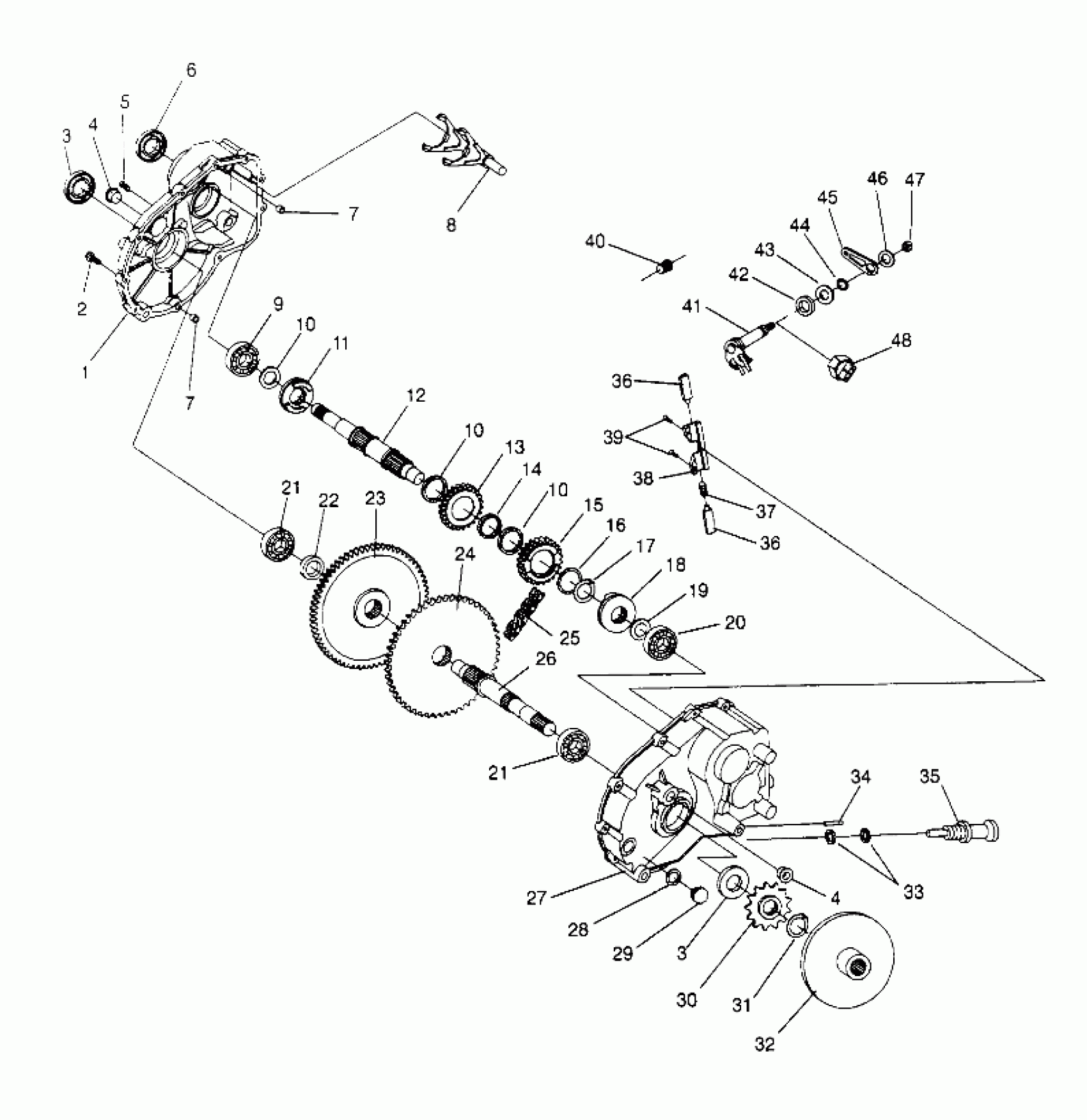

Polaris SPORT 400L - W948540 GEARCASE ASSEMBLY Sport 400L W948540 (4927232723C003) Diagram

#

Description
Price

-

GEARCASE ASM,(PRD.)-ATV

1341124

Unavailable

1

GEARCASE, LH.

3233095

$298.99

2

Screw

3233026

$6.46

3

SEAL Substituted by 3233248

3233096

Unavailable

3

SEAL Substituted by 3233248

3233096

Unavailable

4

BUSHING,PIVOT

3233024

Unavailable

4

BUSHING,PIVOT

3233024

Unavailable

5

STUD

3233025

Unavailable

6

SEAL Substituted by 3233248

3233097

$30.88

7

PIPE, KNOCK

3233021

Unavailable

7

PIPE, KNOCK

3233021

Unavailable

8

RAIL,SHIFT,ASM.

3233098

Unavailable

9

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

10

WASHER

3233099

Unavailable

10

WASHER

3233099

Unavailable

10

WASHER

3233099

Unavailable

11

DOG,REV.ENGAGEMENT

3233100

Unavailable

12

SHAFT, INPUT

3233101

Unavailable

13

GEAR,REVERSE,19T

3233102

Unavailable

14

BEARING, NEEDLE

3233103

$31.99

15

SPRKT,FWD,19T

3233104

Unavailable

16

Washer

3233105

$7.19

17

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

18

DOG,FWD.ENGAGEMENT

3233107

Unavailable

19

WASHER

3233007

Unavailable

20

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

21

BEARING

3233020

$47.99

21

BEARING

3233020

$47.99

22

WASHER

3233108

Unavailable

23

GEAR, 65T

3233109

Unavailable

24

SPROCKET, 51T

3233121

Unavailable

25

CHAIN,SILENT,60P

3233111

$79.19

26

SHAFT, OUTPUT

3233112

Unavailable

26

SHAFT, OUTPUT

3233112

Unavailable

27

GEARCASE, RH.

3233113

Unavailable

28

Washer

3233035

Unavailable

30

SPKT, 12T

3221044

Unavailable

31

RING,RETAINING(10) Substituted by 7710434

3233047

Unavailable

32

DISC,BRAKE,WELD. Substituted by 1910177

1910121

Unavailable

33

O-RING

3233053

Unavailable

34

Vent

3233037

Unavailable

35

DIPSTICK Substituted by 3233478

3233115

$24.27

36

PIN

3233031

$32.11

36

PIN

3233031

$32.11

37

Spring

3233032

$12.94

38

BRACKET

3233030

$21.43

39

SCREW Substituted by 3233747

3233033

Unavailable

40

PLUG

3233116

Unavailable

41

SHAFT,SHIFT,ASM,

3233117

Unavailable

42

SEAL

3233118

Unavailable

43

WASHER

3233119

$7.79

44

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

45

BELLCRANK, HI/REV

3233155

Unavailable

46

Washer

3233054

$6.46

47

Nut

3233055

Unavailable

48

SWITCH,TRANS.INDIC.

4110172

Unavailable
