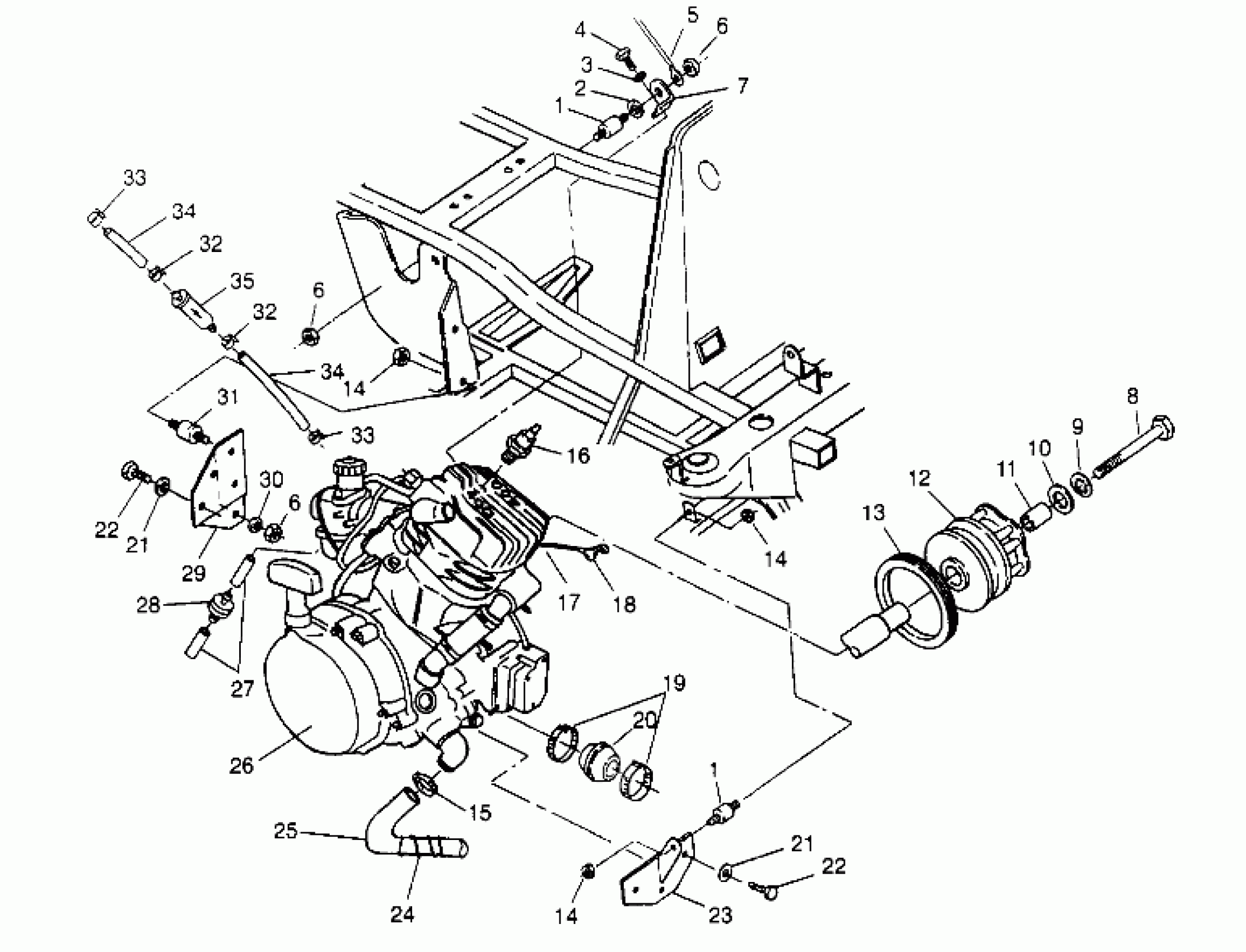

Polaris SPORT 400L - W948540 ENGINE MOUNTING Sport 400L W948540 (4927232723A008) Diagram

#

Description
Price

1

MT.,RUBBER,ENG.

3110038

Unavailable

1

MT.,RUBBER,ENG.

3110038

Unavailable

2

INSULATOR,MOTOR MT.

5430802

$28.32

3

LOCK WASHER(10)

7552901

$1.19

4

BOLT(10)

7515321

Unavailable

5

CABLE,GROUND/ENG.

4010067

Unavailable

6

NUT LOCK(10)

7542411

$3.17

6

NUT LOCK(10)

7542411

$3.17

6

NUT LOCK(10)

7542411

$3.17

7

MOUNT,ENG.TOP

5222415-067

Unavailable

8

BOLT(10)

7512566

$33.24

9

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

10

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

11

BUSHING-.437 X.770 X.50

5430261

$7.14

12

Asm., Drive Clutch (See Pg. A24, Ref. 1)

----

Unavailable

13

Seal, Cover Case (See Pg.A26 , Ref.37 )

----

Unavailable

14

NUT LOCK(10)

7542403

Unavailable

14

NUT LOCK(10)

7542403

Unavailable

14

NUT LOCK(10)

7542403

Unavailable

15

CLAMP,WORM DRIVE

7080547

Unavailable

16

SPARKPLUG (10)

3070156

$3.97

17

CABLE,SOLENOID/STARTER

4010064

Unavailable

18

INSULATOR-CABLE

5410346

$7.73

19

CLAMP, NARROW BAND(10)

7080511

$4.76

20

BOOT,CLUTCH INTAKE(400)

5410883

$7.94

21

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

21

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

22

SCREW(10)

7512490

$3.97

22

SCREW(10)

7512490

$3.97

23

MOUNT,ENGINE

1040231-067

Unavailable

24

SPRING,HOSE RETAINER

7041079

$4.92

25

HOSE, LOWER ENG.

5410606

Unavailable

26

ENG.EC38PL-02 [No Longer Available]

1211554

Unavailable

27

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

28

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

29

MOUNT, REAR MOTOR, BLK.

5240542-067

$13.27

30

WASHER(10)

7555801

$3.97

31

MOUNT,RUBBER,ENG.

3110042

Unavailable

32

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

32

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

33

STRAP,8 IN.TYTON

7080571

$2.46

33

STRAP,8 IN.TYTON

7080571

$2.46

34

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

34

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

35

FILTER,SMALL,IN-LINE,(10)

2530009

$6.46
