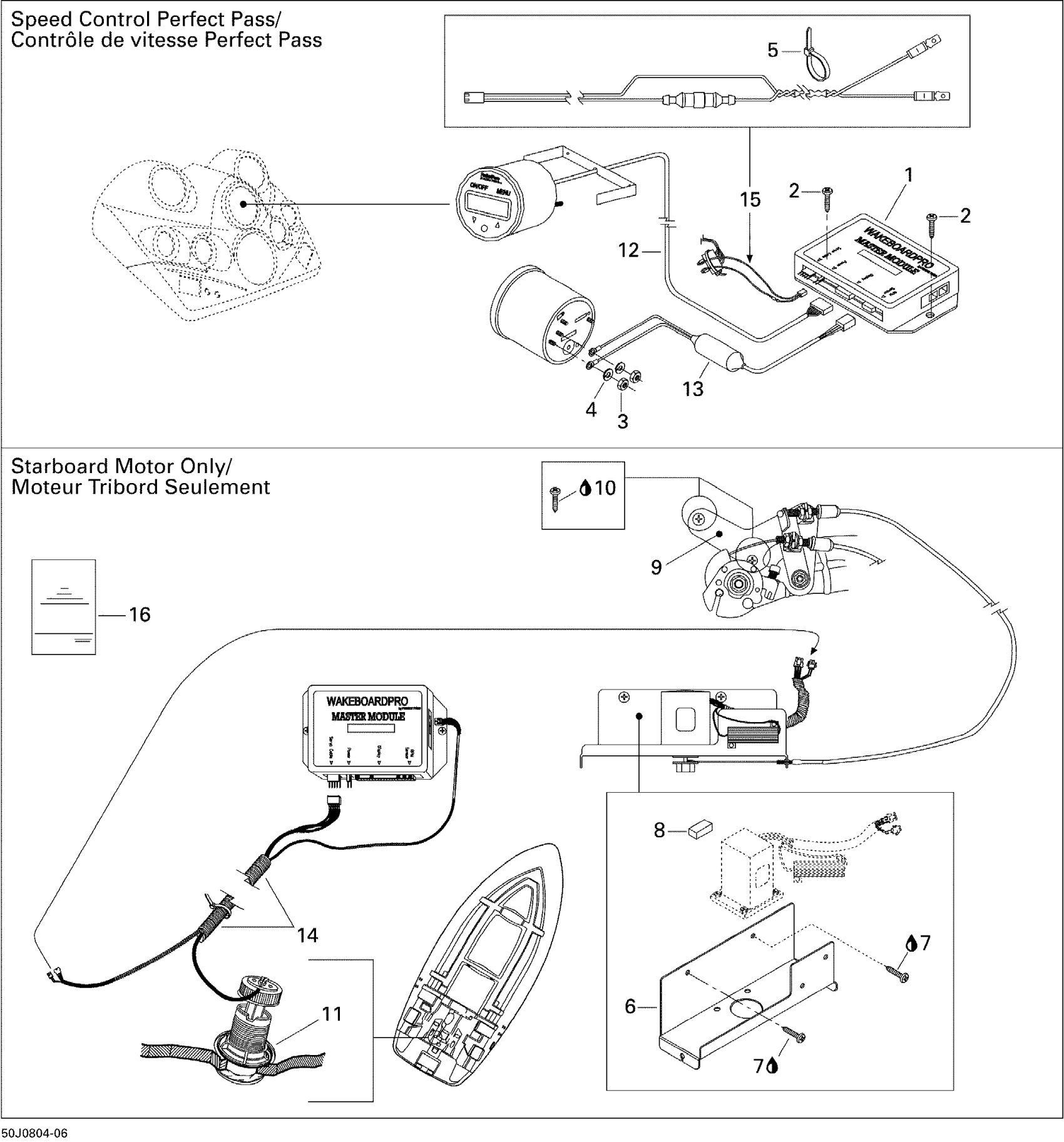

Sea-doo Speedster WAKE 430, 2008 Speed Control Perfect Pass Diagram

#

Description
Price

1

CRUISE CONTROL MODULE - Call your local BRP dealership

204250389

Unavailable

2

PHILLIPS FORMING SCREW M8 X 3/4? - Call your local BRP dealership

204100126

Unavailable

3

Hex. Nut

212100005

$1.35

4

Helical Lock Washer M5

234151601

$1.15

5

Tie-Rap 180 mm

414115200

$0.11

6

SERVO/RESIST/BRACKET ASSY - Call your local BRP dealership

204250355

Unavailable

7

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

8

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

9

BRACKET - Call your local BRP dealership

204250357

Unavailable

10

Loctite 243, 10 ml

293800060

$21.49

11

SPEED SENSOR - Call your local BRP dealership

204250358

Unavailable

12

SPEEDOMETER GAUGE - Call your local BRP dealership

204250379

Unavailable

13

TACHOMETER HARNESS - Call your local BRP dealership

204250360

Unavailable

14

SPEEDOMETER HARNESS - Call your local BRP dealership

204250361

Unavailable

15

POWER HARNESS - Call your local BRP dealership

204250366

Unavailable

16

Owner Manual, Perfect Pass

204250390

Unavailable
