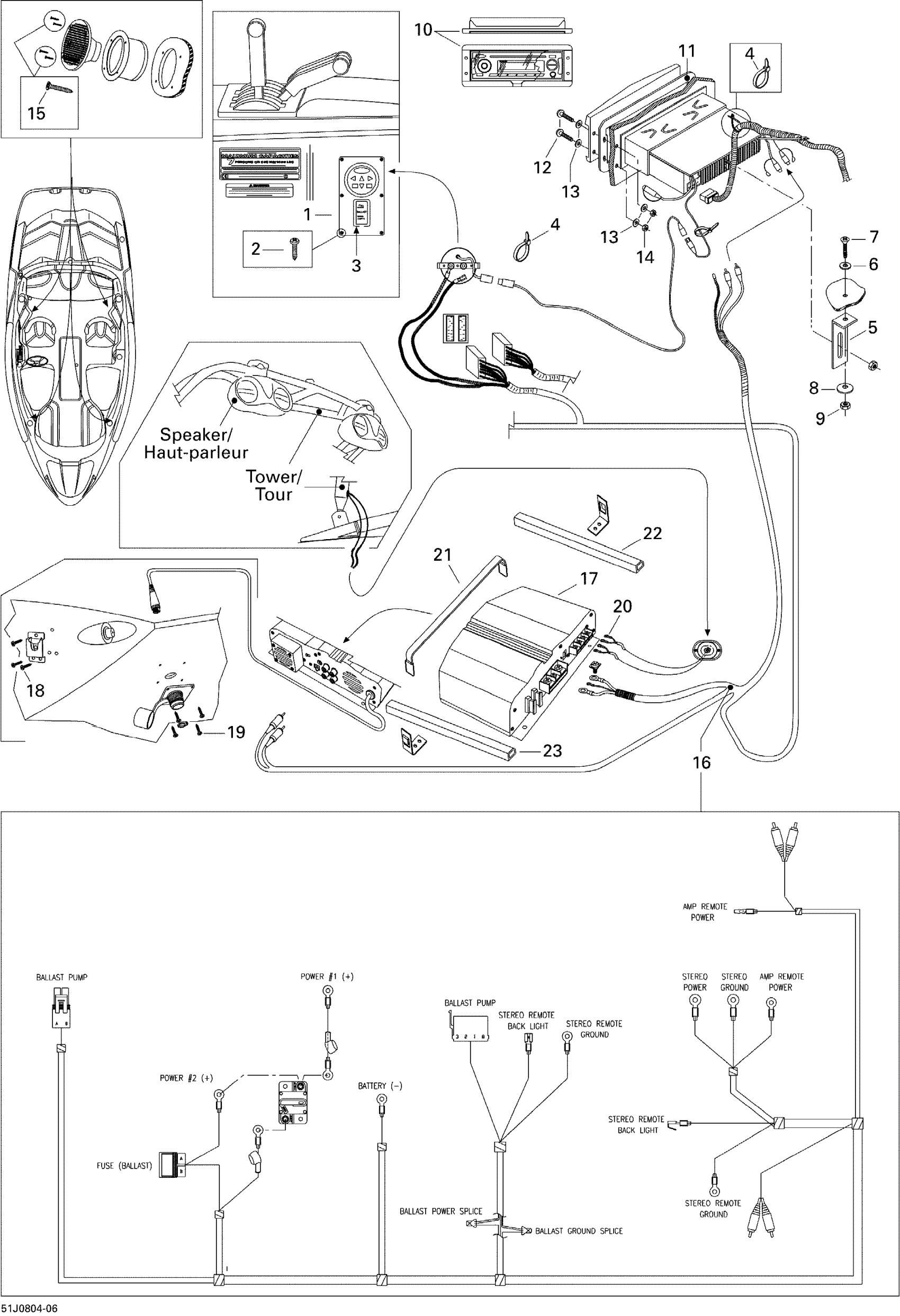

Sea-doo Speedster WAKE 430, 2008 10- Amplifier And Tower Speakers Diagram

#

Description
Price

1

Switch/Remote Panel

204471158

Unavailable

2

Phillips Tapping Screw 3.5 X 19

250000092

Unavailable

3

BALLAST SWITCH - Call your local BRP dealership

204471165

Unavailable

4

Tie Wrap 94 mm | 4X4

293750001

$1.03

5

RADIO SUPPORT - Call your local BRP dealership

204470837

Unavailable

6

Stainless Flat Washer M6

234061600

$0.33

7

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208662060

Unavailable

8

Flat Washer M6, Stainless

234062600

$0.77

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

Radio Cover

204470266

Unavailable

11

RADIO COVER GASKET - Call your local BRP dealership

204470257

Unavailable

12

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

13

Flat Washer 4 mm

234040600

$0.55

14

Elastic Stop Nut M4

232541600

$1.15

15

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

16

Accessory Harness, Wake

204471042

Unavailable

17

Amplifier And Tower Speakers

204471045

Unavailable

18

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

19

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

20

Terminal Ring Connector

204471087

Unavailable

21

Retainer Strap

293850097

$11.64

22

Seal Tray 1000Mm Long

219704368

$13.99

23

Seal Tray 1000Mm Long

219704368

$13.99
