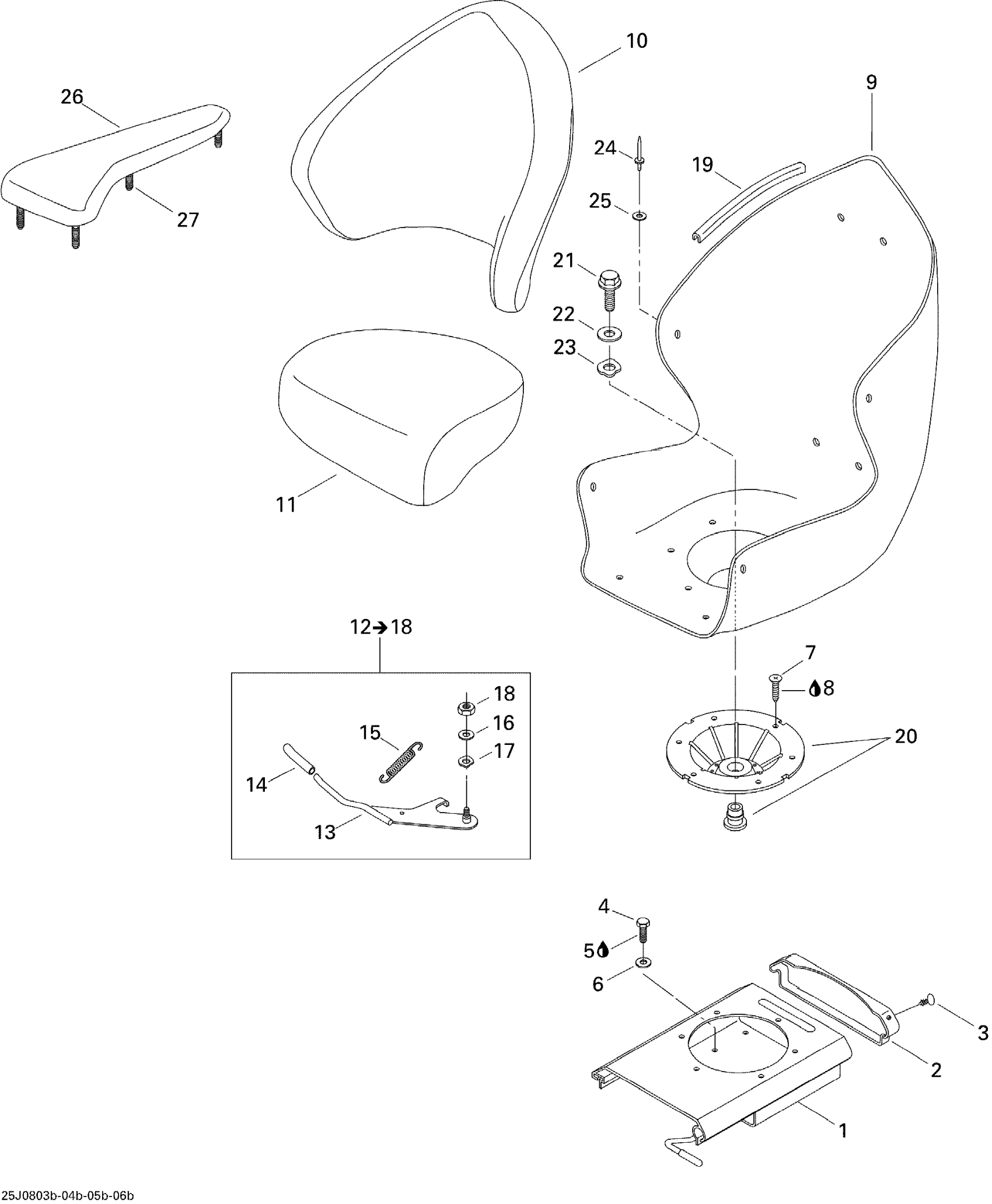

Sea-doo Speedster WAKE 430, 2008 09- Seat 2 Diagram
#
Description
Price
1
Seat Base Ass'y
204614118
Unavailable
2
Rear Protector
204610376
Unavailable
3
Black, Dart
293730006
$0.99
4
Hex. Screw M6 X 35
207163560
$1.49
5
Loctite 243, 10 ml
293800060
$21.49
6
Flat Washer M6, Stainless
234062600
$0.77
7
PHILLIPS SCREW M6 X 16 - Call your local BRP dealership
208561660
Unavailable
8
Loctite 243, 10 ml
293800060
$21.49
9
Seat Base
204611146
Unavailable
10
Backrest Cushion Ass'y
204613410
Unavailable
11
Seat Cushion Ass'y
204613412
Unavailable
12
Lever Arm Ass’y
204610523
Unavailable
13
Lever Arm
204610524
Unavailable
14
Handle
204610348
Unavailable
15
SPRING - Call your local BRP dealership
204610349
Unavailable
16
Stainless Flat Washer M6
234061600
$0.33
17
Washer
211200059
Unavailable
18
Hex. Elastic Stop Nut M6
232561600
$1.15
19
TRIM, BLACK - Call your local BRP dealership
204610371
Unavailable
20
SWIVEL PLATE - Call your local BRP dealership
204610513
Unavailable
21
SCREW-SHOULDER - Call your local BRP dealership
211000172
Unavailable
22
FLAT WASHER - Call your local BRP dealership
211200058
Unavailable
23
WASHER - Call your local BRP dealership
293200056
Unavailable
24
RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.
293150201
Unavailable
25
FLAT WASHER #10 - Call your local BRP dealership | Except STD
204100059
Unavailable
26
ELBOWREST ASS'Y, PORT SIDE - Call your local BRP dealership | Viper Red
204613407
Unavailable
26
Elbowrest Ass'y, Starboard | Viper Red
204613405
Unavailable
27
Dart
293730021
$7.79
