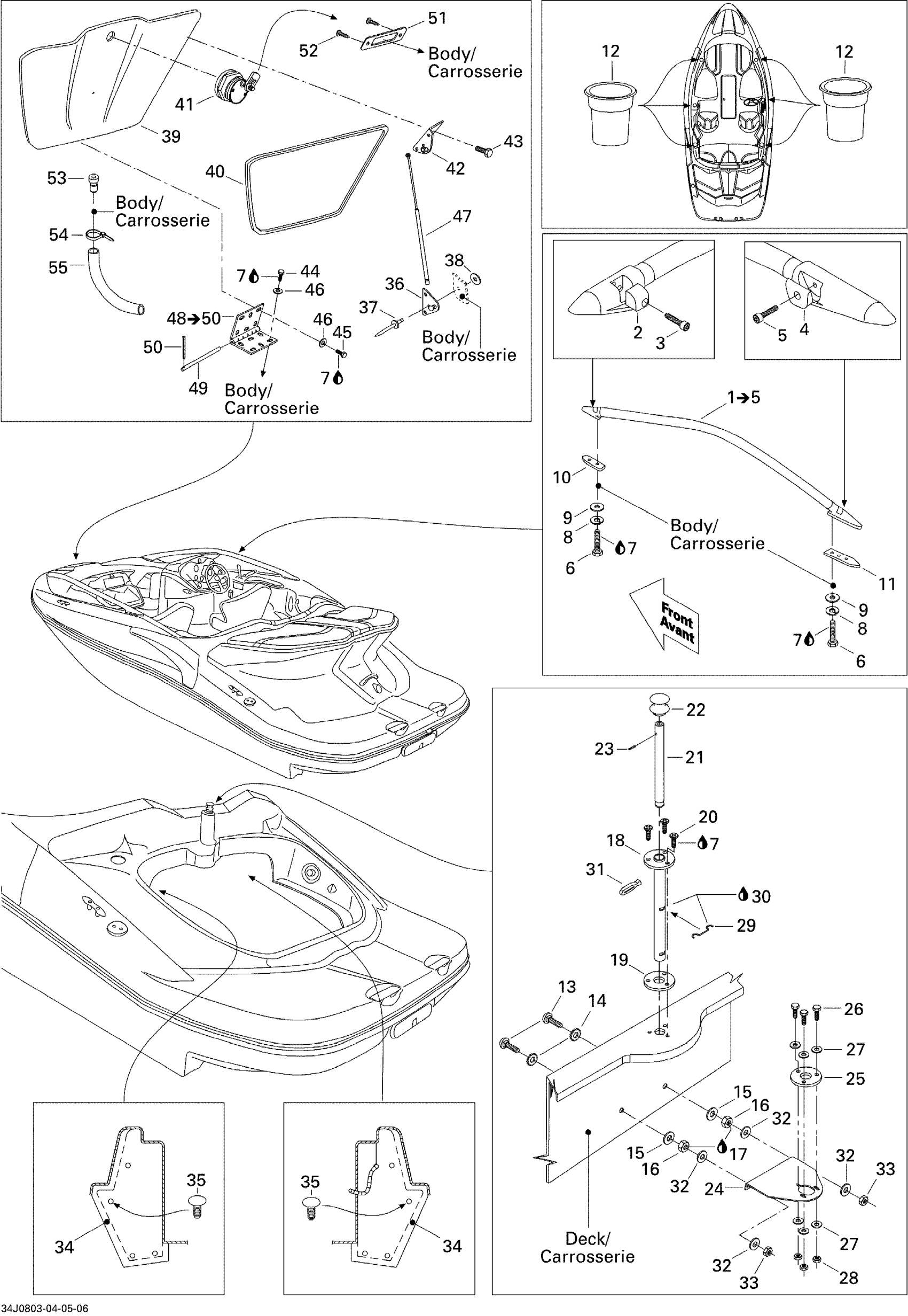

Sea-doo Speedster WAKE 430, 2008 09- Body And Accessories Diagram
#
1
RH Side Rail Ass'y | Starboard, Includes 1 To 5
204072673
Unavailable
1
LH Side Rail Ass'y | Port Side, Includes 1 To 5
204072674
Unavailable
2
Rail Insert, Front
204072856
Unavailable
3
SOCKET SCREW, 3/8-16 X 1 - Call your local BRP dealership
204100194
Unavailable
4
Rail Insert, Rear Starboard
204072857
Unavailable
4
Rail Insert, Rear Port Side
204072858
Unavailable
5
Socket Screw, 3/8-16 x 3/4"
204100195
Unavailable
6
HEX. SCREW 3/8 X 1-1/2 - Call your local BRP dealership
204100135
Unavailable
7
Loctite 243, 10 ml
293800060
$21.49
8
Helicoidal Lock Washer M10 | XT Models
234101601
$1.15
9
Flat Washer 10 mm, Stainless
234002600
$2.22
10
GASKET, FRONT - Call your local BRP dealership | With Tower
204130063
Unavailable
11
GASKET, REAR - Call your local BRP dealership | With Tower
204130064
Unavailable
12
CUP HOLDER - Call your local BRP dealership | STD
291000619
Unavailable
13
Elevator Bolt
204000130
Unavailable
14
TOOTHED LOCK WASHER - Call your local BRP dealership
234381608
Unavailable
15
Flat Washer M6, Stainless
234062600
$0.77
16
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
17
Loctite 271, 10 ml
293800005
$26.99
18
FIXED TUBE - Call your local BRP dealership
291001057
Unavailable
19
RUBBER WASHER - Call your local BRP dealership
293830045
Unavailable
20
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership
208564060
Unavailable
21
SKI SHAFT - Call your local BRP dealership
204072616
Unavailable
22
SKI SHAFT CAP - Call your local BRP dealership
293000004
Unavailable
23
ROLLED PIN M3 X 30 - Call your local BRP dealership
211400004
Unavailable
24
FIXATION PLATE - Call your local BRP dealership
204071839
Unavailable
25
RETAINER WASHER - Call your local BRP dealership
291001060
Unavailable
26
Hex. Forming Screw M6 X 20
207162060
$1.29
27
Flat Washer M6, Stainless
234062600
$0.77
28
Hex. Elastic Stop Nut M6
232561600
$1.15
29
SPRING - Call your local BRP dealership
291001205
Unavailable
30
Synthetic Grease, 400 G
293550010
Unavailable
31
Windshield Latch
570023800
$4.49
32
Flat Washer M6, Stainless
234062600
$0.77
33
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
34
SOUNDWALL SEAL - Call your local BRP dealership
204071935
Unavailable
35
Black Dart
293730014
$0.99
36
SHOCK BRACKET - Call your local BRP dealership
204073065
Unavailable
37
Pop Rivet 3/16"
293150043
$2.09
38
Flat Washer M5, Stainless
234051600
$0.77
39
BOW COVER - Call your local BRP dealership
204072466
Unavailable
40
Was 293200017 Neoprene Seal
219704365
$149.99
41
FLUSH LATCH - Call your local BRP dealership
204071937
Unavailable
42
Shock Bracket
204073074
$27.99
43
Hex. Screw M4 X 12, Scotch Grip
207341260
Unavailable
44
Hex. Screw M6 X 25
207162560
$1.47
45
Hex. Screw M6 X 16
207161660
$1.59
46
Stainless Flat Washer M6
234061600
$0.33
47
CYLINDER GAS SHOCK - Call your local BRP dealership
204071918
Unavailable
48
HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21
204070127
Unavailable
49
HINGE ROD - Call your local BRP dealership
204070204
Unavailable
50
Cotter Pin M2.5 X 12
204070205
Unavailable
51
LATCH PLATE - Call your local BRP dealership
204072027
Unavailable
52
SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership
202000203
Unavailable
53
DRAIN FITTING - Call your local BRP dealership
204071783
Unavailable
54
Tie Wrap 94 mm | 4X4
293750001
$1.03
55
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
